Selector Lever Cable Adjustment: Adjustment

  1. Shift selector lever in position "D".

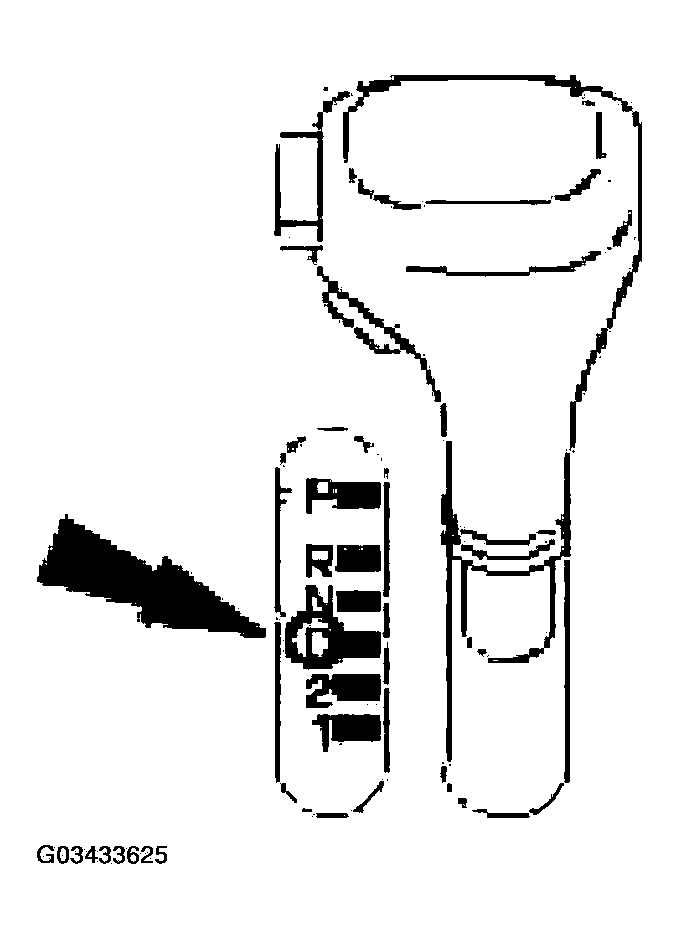

    Fig 1: Placing Selector Lever "D" Position
    G03433625Courtesy of FORD MOTOR CO.
  2. Raise and support the vehicle. .
    3. NOTE: Make sure the selector lever cable outer sleeve is free for moving after unlocking.

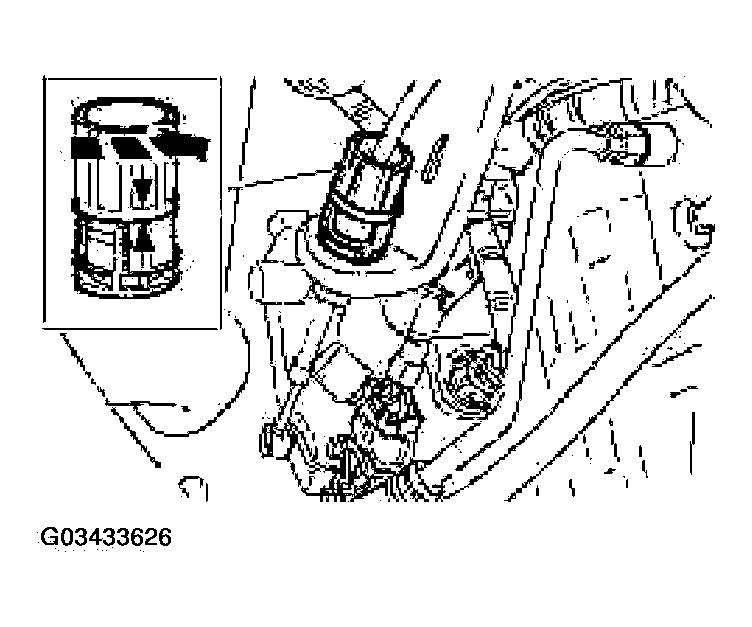

    Fig 2: Opening Selector Lever Cable Locking Mechanism
    G03433626Courtesy of FORD MOTOR CO.
  3. Open the selector lever cable locking mechanism (turn counterclockwise).
    4. NOTE: The TR sensor mark must be in line with the transaxle selector lever.

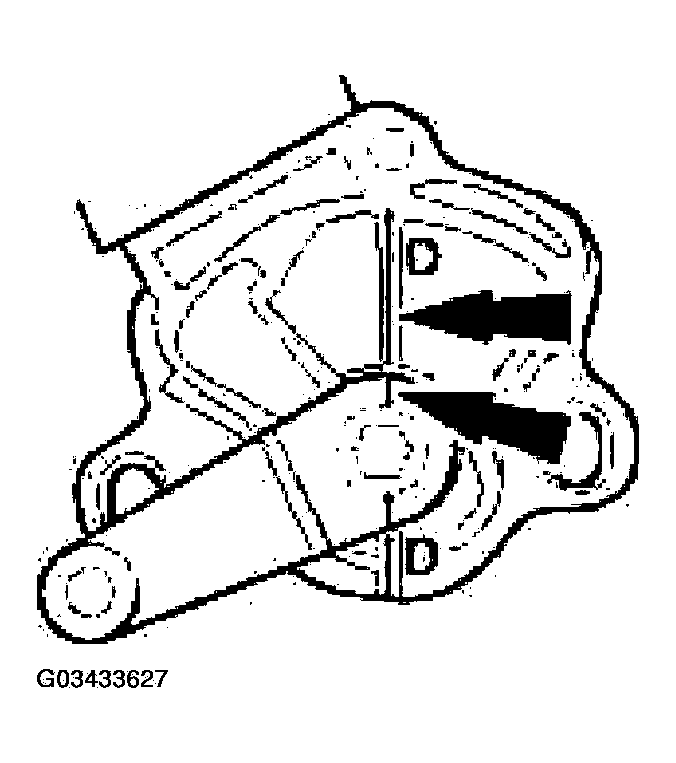

    Fig 3: Placing Selector Lever In "D" Position
    G03433627Courtesy of FORD MOTOR CO.
  4. Move the transaxle selector lever to position "D" (TR sensor removed shown in Fig 3 ).
  5. Close the selector lever cable outer sleeve by turning the locking mechanism clockwise.

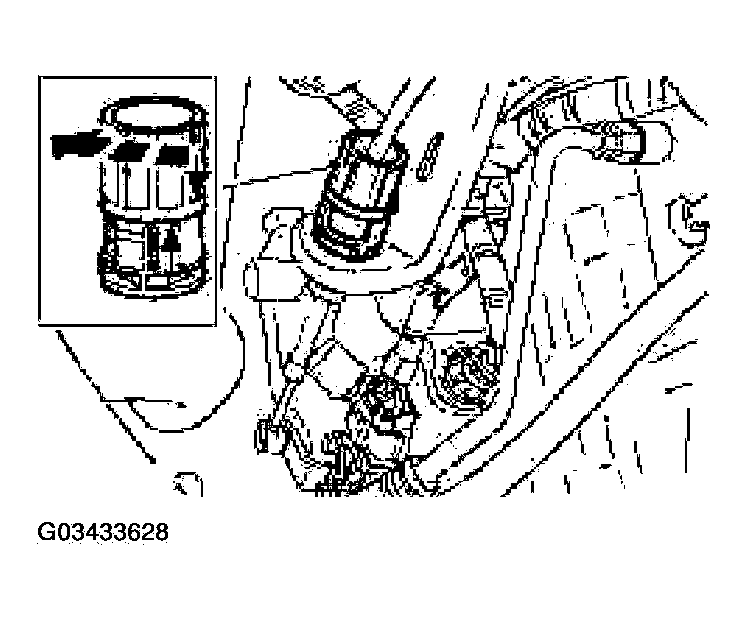

    Fig 4: Closing Selector Lever Cable Outer Sleeve
    G03433628Courtesy of FORD MOTOR CO.
  6. Lower the vehicle.
  7. Check the selector lever cable adjustment.
