Brake Shift Interlock Actuator: Removal

  1. Remove the floor console.
  2. Disconnect the overdrive (O/D) switch electrical connector (selector lever assembly removed shown in Fig 1 ).
    Fig 1: Disconnecting Overdrive (O/D) Switch Electrical Connector
    G03433629Courtesy of FORD MOTOR CO.
  3. Remove the shift interlock actuator.
    1. Remove the bolt.
    2. Pull off the knob.
    3. Pull out of the push rod.

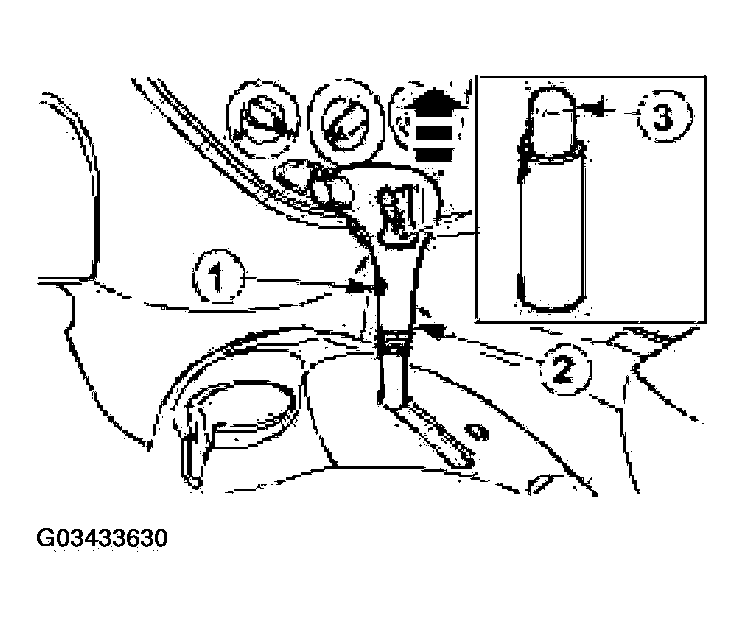

      4. Fig 2: Removing Shift Interlock Actuator
      G03433630Courtesy of FORD MOTOR CO.
