Selector Lever Bezel: Installation

  1. Install the selector lever bezel (selector lever assembly removed shown in Fig 1 ).
    • Clip in the bezel.
    • Clip in the lamp.

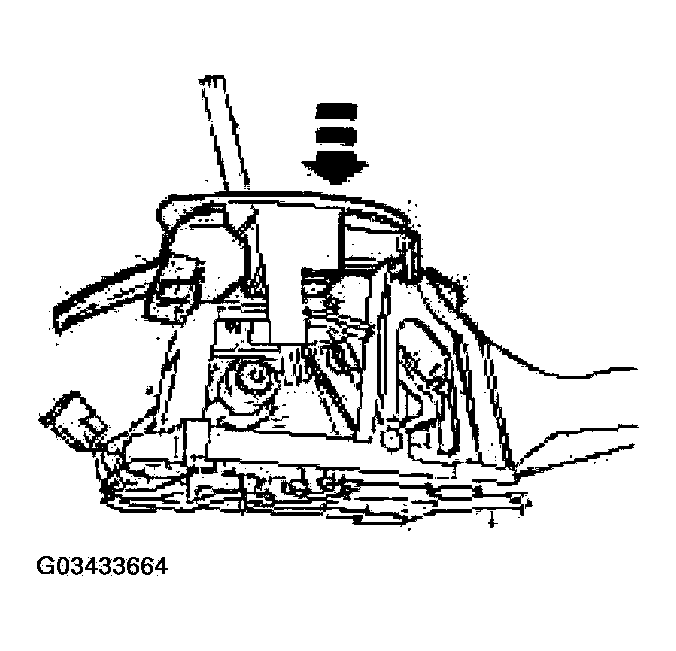

      Fig 1: Installing Selector Lever Bezel
      G03433664Courtesy of FORD MOTOR CO.
  2. Install the selector lever knob. For additional information, refer to SELECTOR LEVER KNOB  .
