Selector Lever Knob: Installation

  1. Install the selector lever knob.
    • Position the knob.
    • Install the screw.

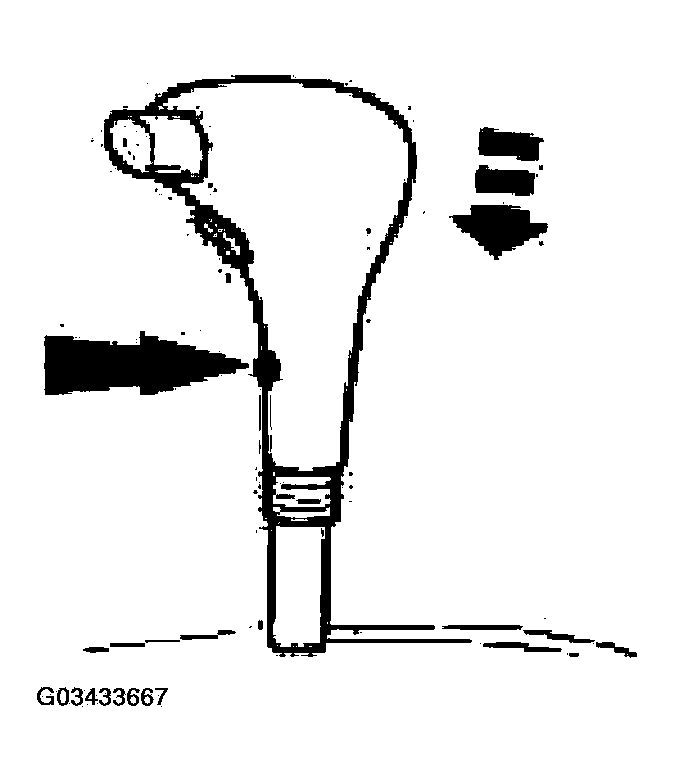

      • Fig 1: Positioning Knob & Installing Screw
      G03433667Courtesy of FORD MOTOR CO.
  2. Connect the O/D switch electrical connector (selector lever assembly removed shown in Fig 2 ).

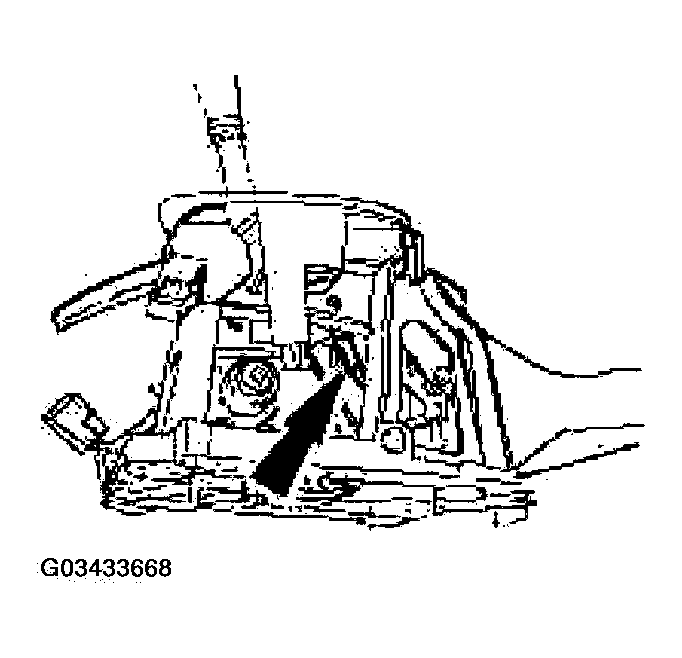

    Fig 2: Connecting O/D Switch Electrical Connector
    G03433668Courtesy of FORD MOTOR CO.
  3. Install the floor console. .
