Selector Lever Knob: Removal

  1. Remove the floor console. .
  2. Disconnect the overdrive (O/D) switch electrical connector (selector lever assembly removed shown in Fig 1 ).

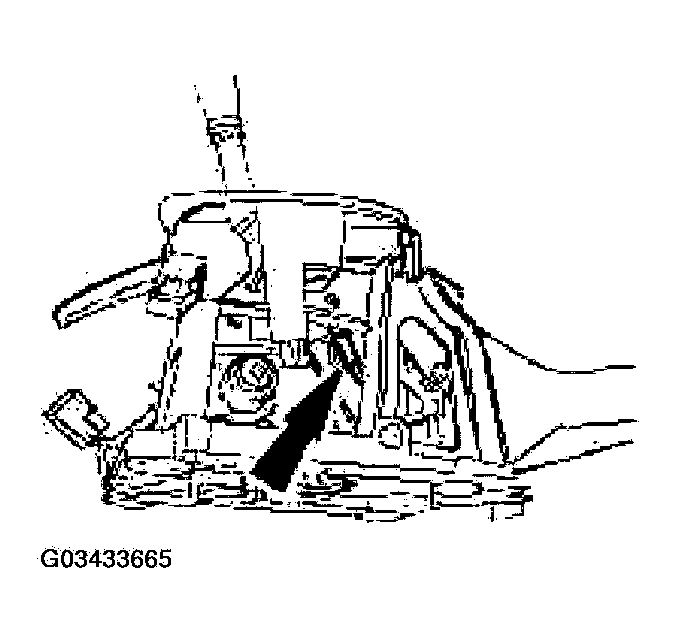

    Fig 1: Disconnecting Overdrive (O/D) Switch Electrical Connector
    G03433665Courtesy of FORD MOTOR CO.
  3. Remove the selector lever knob.
    • Remove the screw.

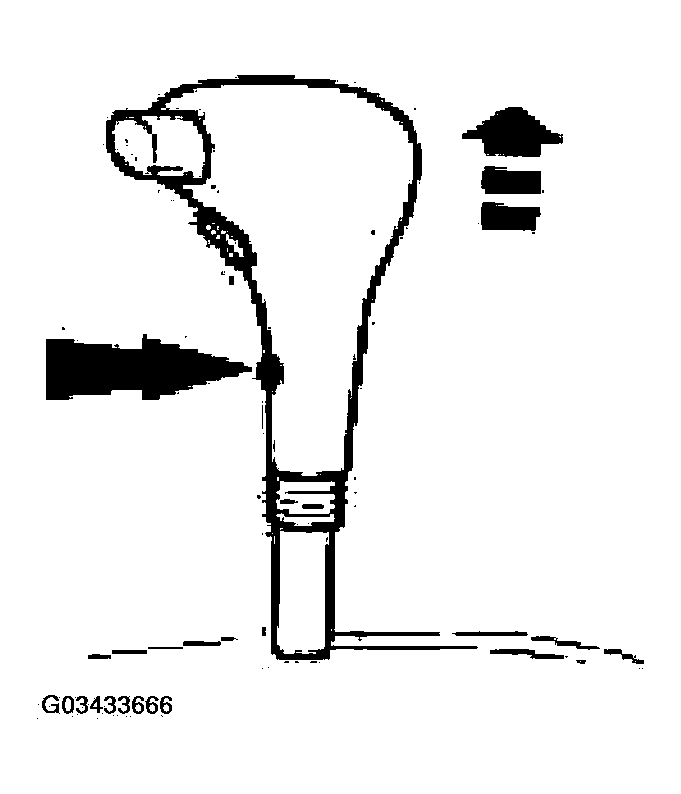

      Fig 2: Removing Screw & Selector Lever Knob
      G03433666Courtesy of FORD MOTOR CO.
    • Pull off the knob.
