Selector Lever: Installation

    NOTE: Use thread locking compound for the nuts.
  1. Install the selector lever assembly.
    • Install the four nuts.

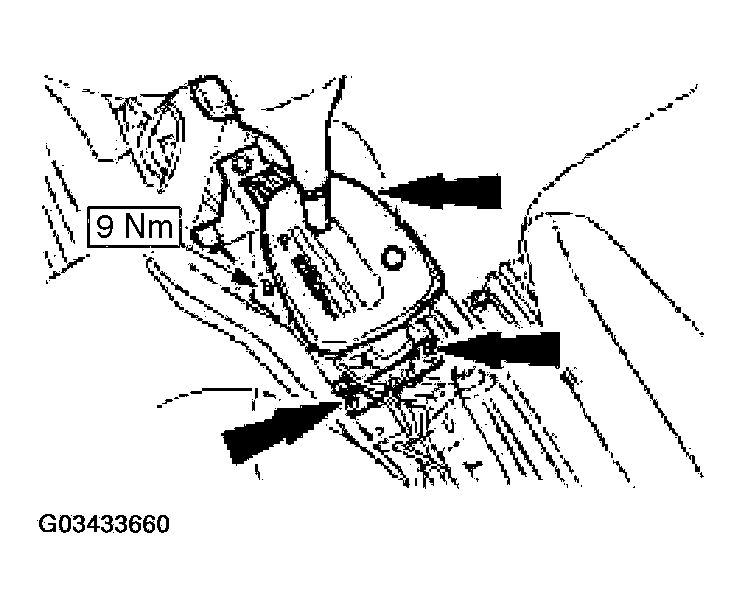

      Fig 1: Installing Selector Lever Assembly
      G03433660Courtesy of FORD MOTOR CO.
  2. Connect the selector lever assembly electrical connector.

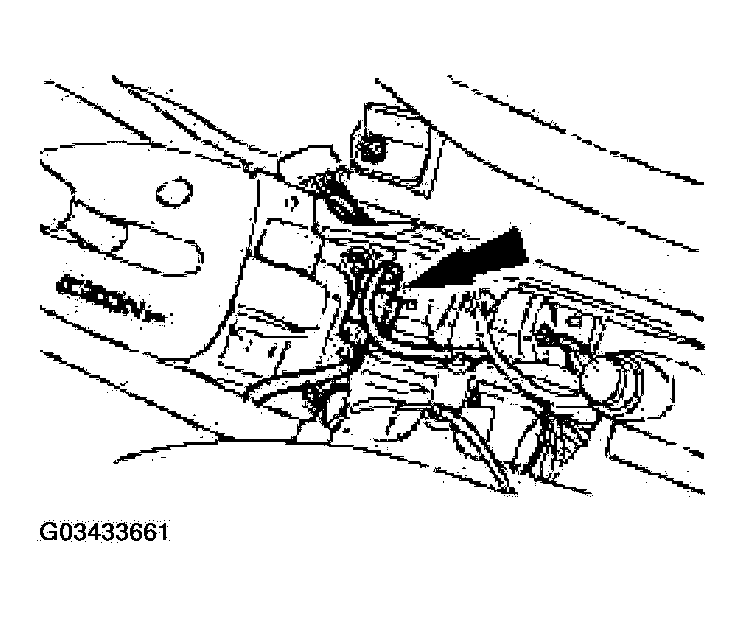

    Fig 2: Connecting Selector Lever Assembly Electrical Connector
    G03433661Courtesy of FORD MOTOR CO.
    3. NOTE: The selector lever has its own detent mechanism. Holding the selector lever is not necessary.
  3. Install the selector cable to the selector lever.
    1. Shift the selector lever to "P".
    2. Clip in the selector lever cable outer sleeve.
    3. Clip in the selector lever cable.

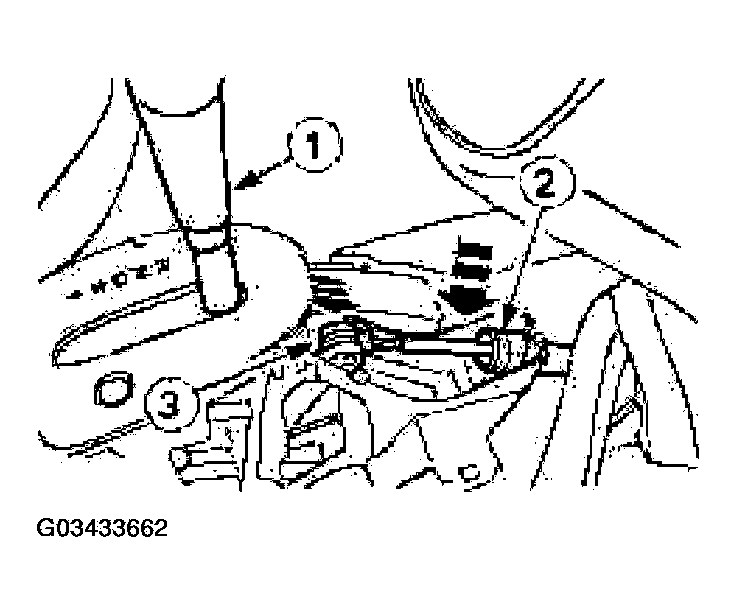

      4. Fig 3: Installing Selector Lever Cable To Selector Lever
      G03433662Courtesy of FORD MOTOR CO.
  4. Install the floor console. .
  5. Re-adjust the system. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT  .
