Selector Lever: Removal

  1. Remove the floor console. .
  2. Remove the selector lever cable from the selector.
    1. Shift the selector lever to "P".
    2. Unclip the selector lever cable.
    3. Unclip the selector lever cable outer sleeve.

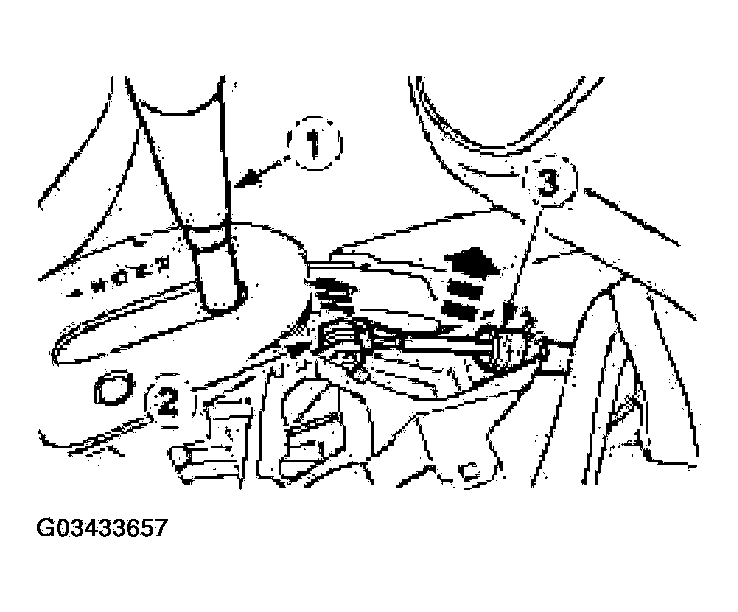

      4. Fig 1: Removing Selector Lever Cable From Selector
      G03433657Courtesy of FORD MOTOR CO.
  3. Disconnect the selector lever assembly electrical connector.

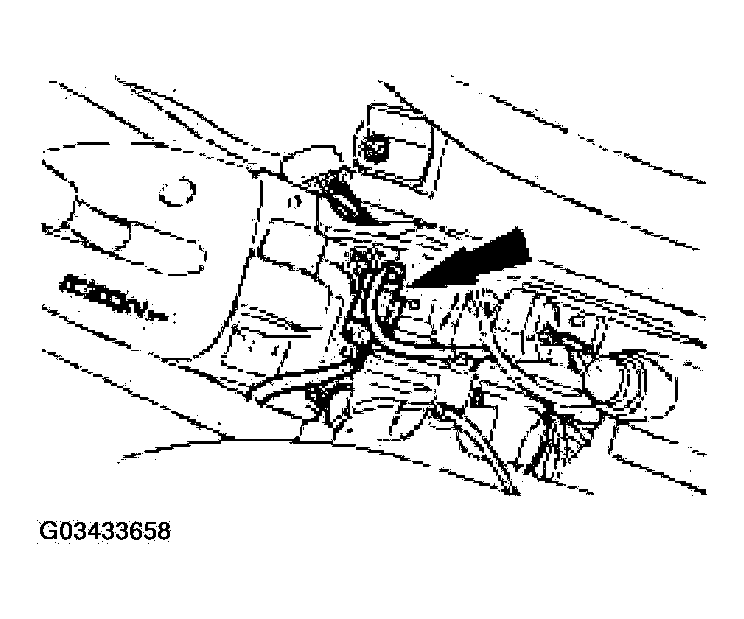

    Fig 2: Disconnecting Selector Lever Assembly Electrical Connector
    G03433658Courtesy of FORD MOTOR CO.
  4. Remove the selector lever assembly.
    • Remove the four nuts.

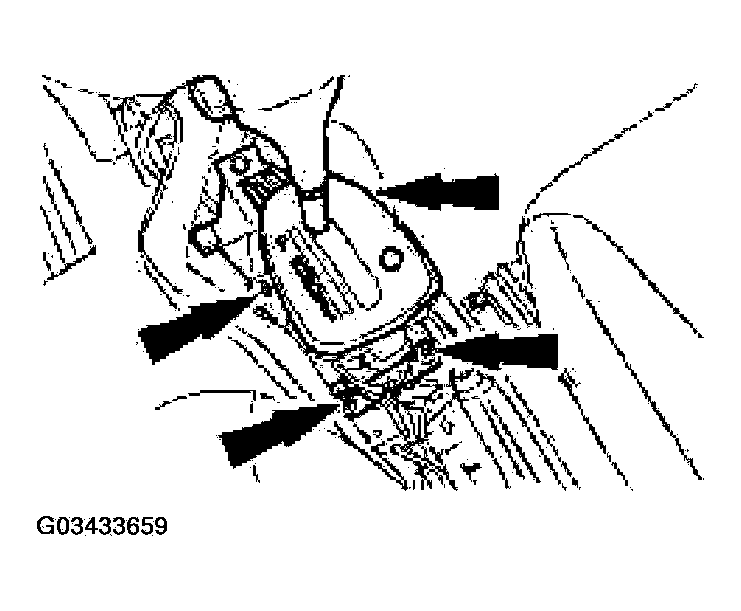

      Fig 3: Removing Selector Lever Assembly
      G03433659Courtesy of FORD MOTOR CO.
