Check Fluid Level
Under normal conditions, there is no requirement to check the transaxle fluid level. However, if the transaxle is not functioning correctly, the transaxle may slip, shift slowly or there may be some sign of fluid leakage, the fluid level should be checked.
CAUTION:
The vehicle should not be driven if the fluid level is below the bottom line on the fluid level indicator and the ambient temperature is above 10°C (50°F).
NOTE:
Automatic transmission fluid expands when warmed. To obtain an accurate fluid level check, drive the vehicle until normal operating temperature is reached, approximately 30 km (20 miles).
NOTE:
If the vehicle has been operated for an extended period at high speeds, in city traffic during hot weather or pulling a trailer the vehicle should be turned OFF for approximately 30 minutes to allow the fluid to cool before checking.
NOTE:
Incorrect fluid level may affect the transaxle operation and could result in transaxle damage. To correctly check and add fluid to the transaxle, refer to the procedures in this article.
- Drive the vehicle 30 km (20 miles) or until the vehicle reaches normal operating temperature.
- Park the vehicle on a level surface and engage the parking brake.
- With your foot on the brake, start the engine and move the range selector lever through all the gear ranges. Allow sufficient time for each gear to engage.
- Place the range selector in "P" (park) and leave the engine running.
- Remove the fluid level indicator and wipe it clean with a lint free cloth.
- Install the fluid level indicator, making sure that it is fully seated in the filler tube.

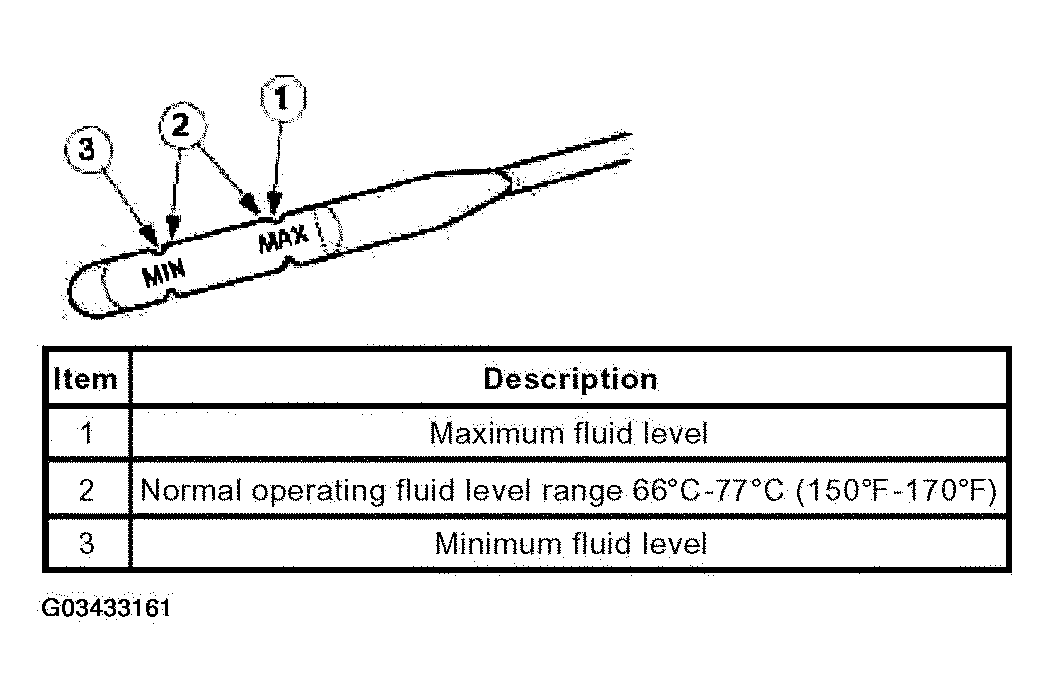

- Remove the fluid level indicator. The fluid should be within the designated areas.
