Direct and Reverse Clutch Assembly: Notes

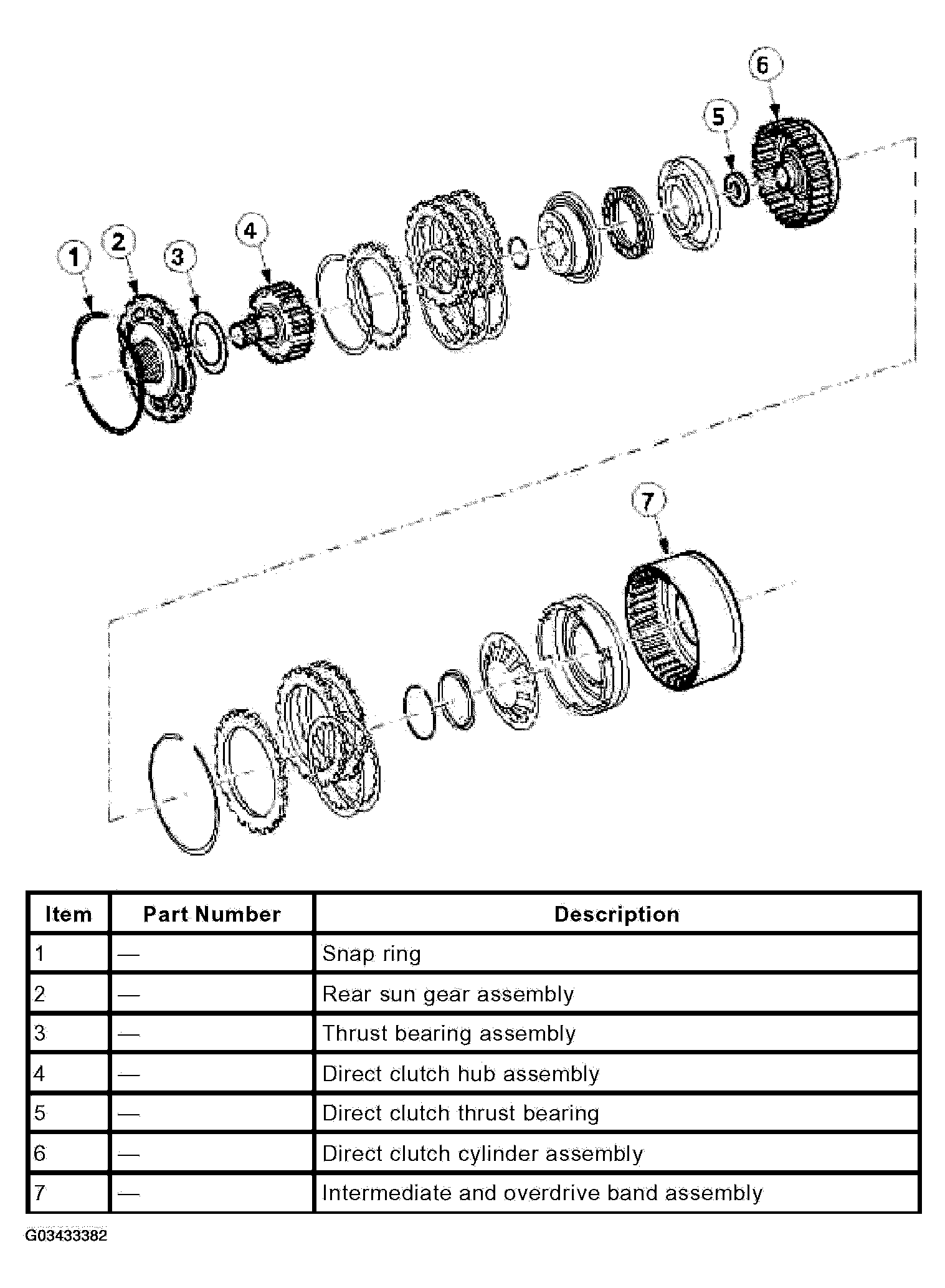

Fig 1: Identifying Direct And Reverse Clutch Assembly Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
