Forward Clutch: Disassembly

  1. Remove the forward clutch pressure, friction and steel plates.
    1. Remove the retaining ring.
    2. Remove the plates.

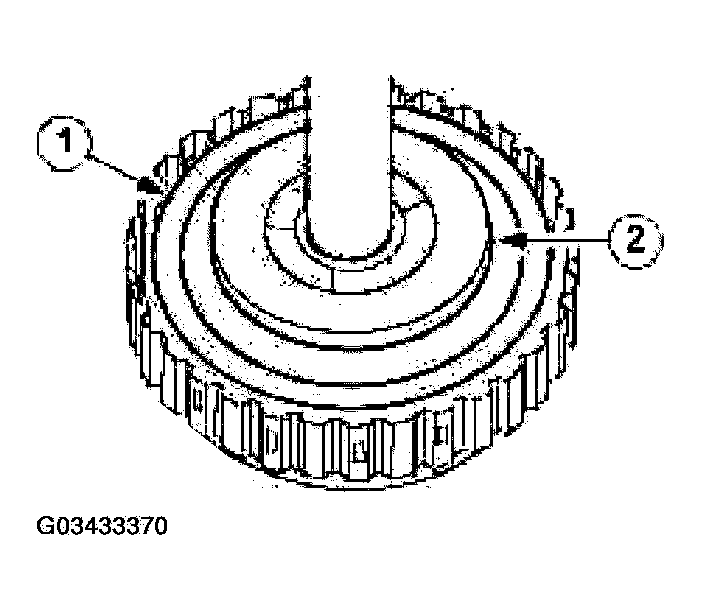

      Fig 1: Removing Forward Clutch Pressure, Friction And Steel Plates
      G03433370Courtesy of FORD MOTOR CO.
  2. Using the special tool, install the forward clutch assembly in a suitable press.

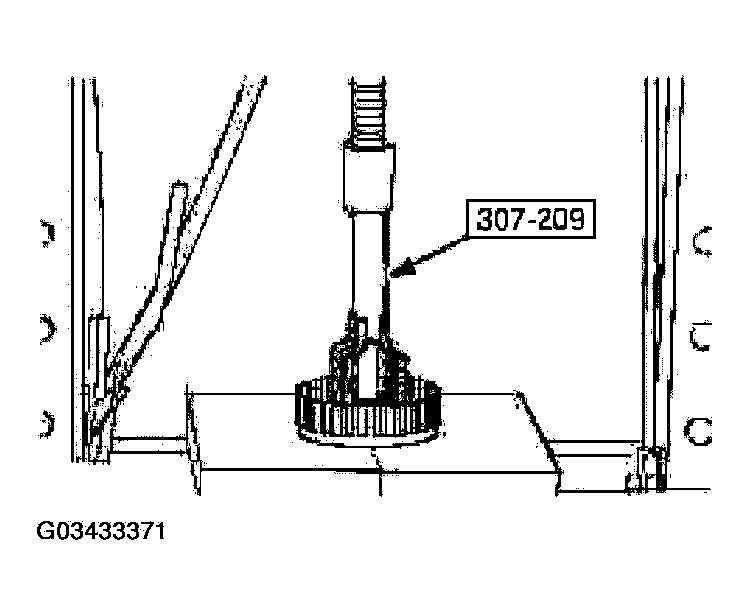

    Fig 2: Installing Forward Clutch Assembly
    G03433371Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the forward clutch balance piston snap ring.

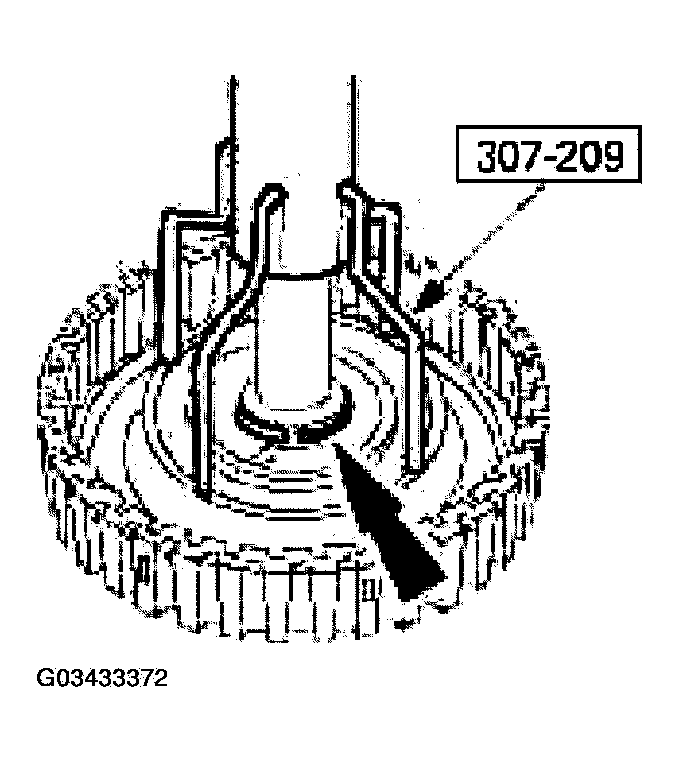

    Fig 3: Removing Forward Clutch Balance Piston Snap Ring
    G03433372Courtesy of FORD MOTOR CO.
    4. CAUTION: If damage is found to the forward clutch balance piston seals, install a new balance piston.

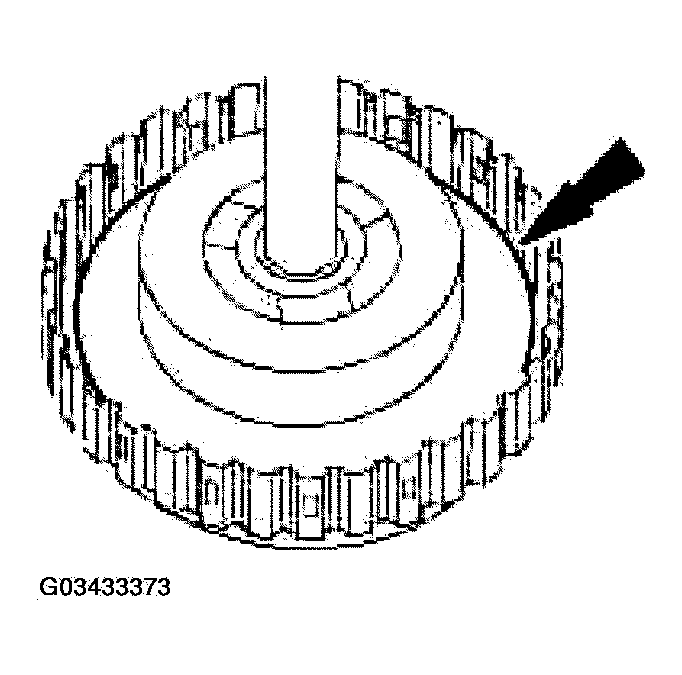

    Fig 4: Removing And Inspecting Forward Clutch Balance Piston
    G03433373Courtesy of FORD MOTOR CO.
  4. Remove and inspect the forward clutch balance piston.
  5. Remove the forward piston return spring.

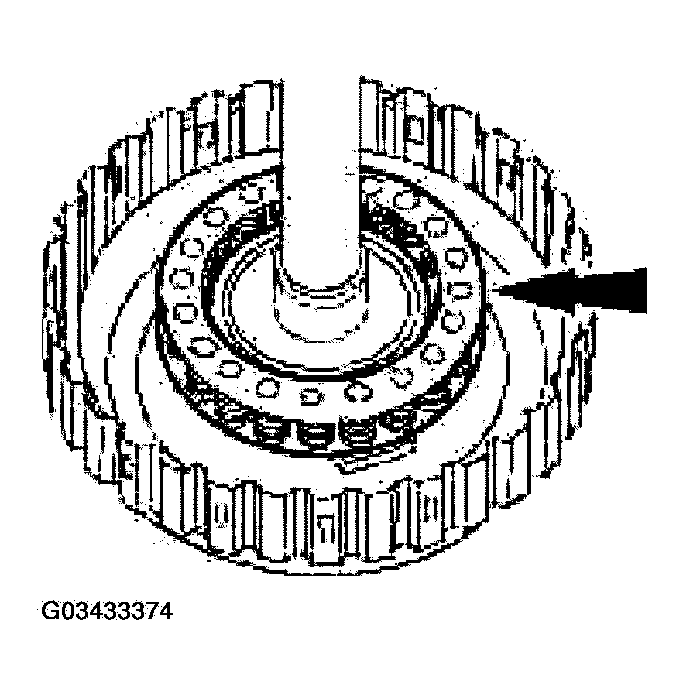

    Fig 5: Removing Forward Piston Return Spring
    G03433374Courtesy of FORD MOTOR CO.
    6. CAUTION: If damage is found to the forward clutch piston seals, install a new forward clutch piston.

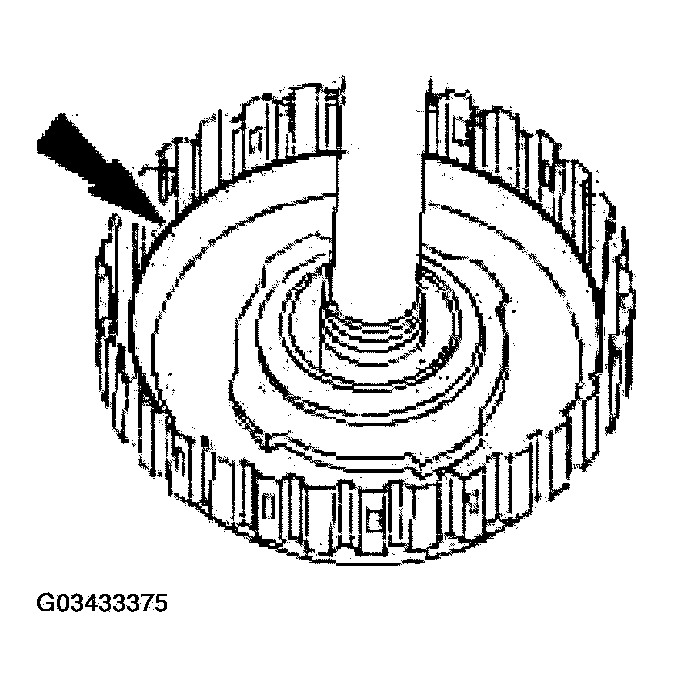

    Fig 6: Removing Forward Clutch Piston Assembly
    G03433375Courtesy of FORD MOTOR CO.
  6. Remove the forward clutch piston assembly.
