Forward Clutch: Material

MATERIAL SPECIFICATIONS

Automatic transmission fluid XT -5-QM (MERCON® V)

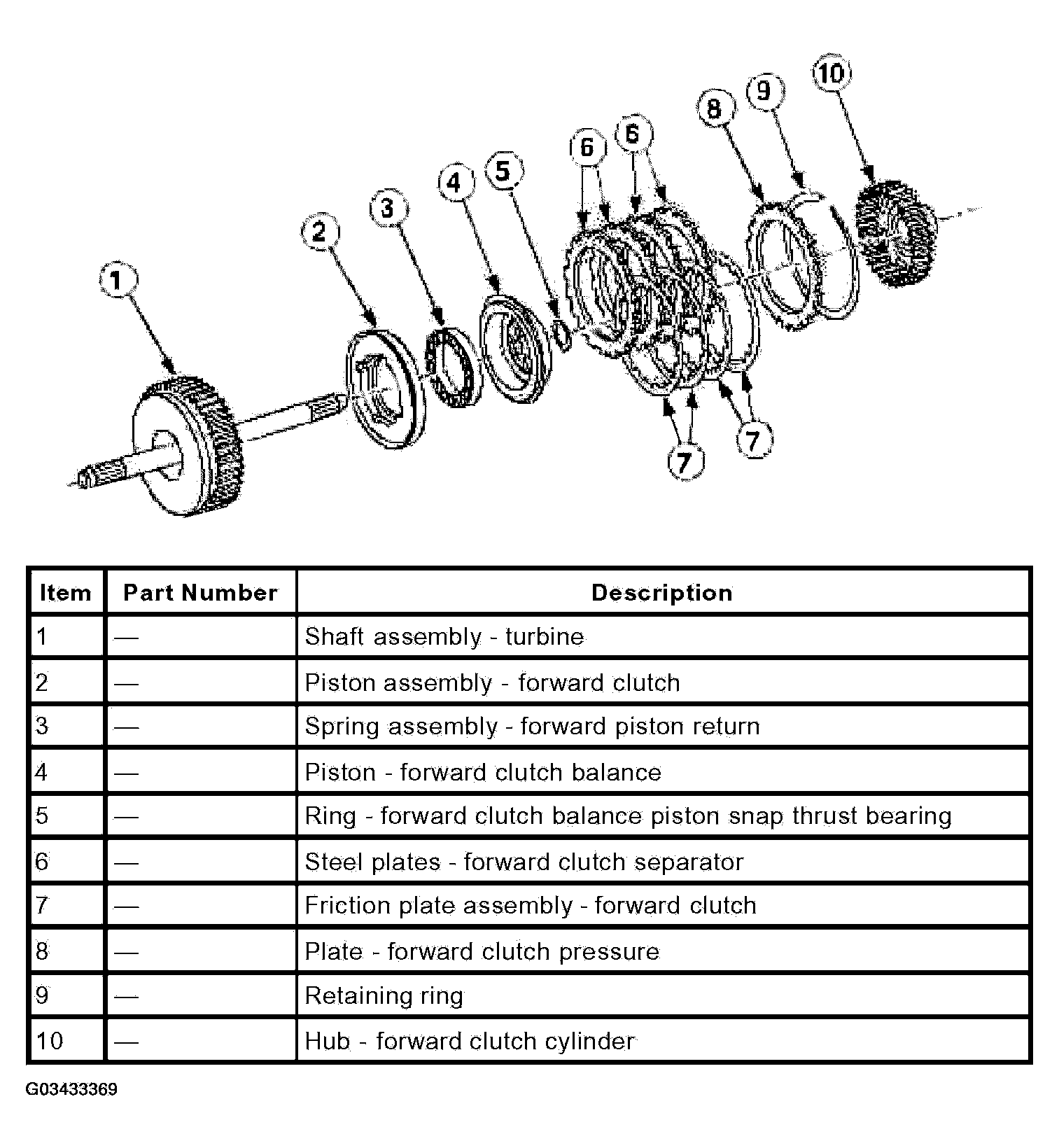

Fig 1: Identifying Forward Clutch Component
G03433369Courtesy of FORD MOTOR CO.
