Reverse Clutch: Disassembly

Remove the reverse clutch pressure, friction and steel plates.
1. Remove the retaining ring.
2. Remove the plates.

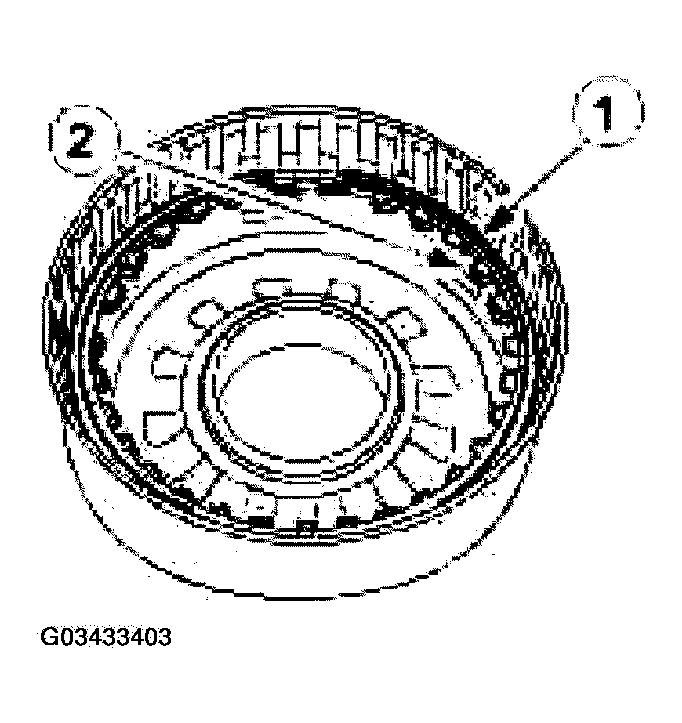

  Fig 1: Removing Reverse Clutch Pressure, Friction And Steel Plates
  Courtesy of FORD MOTOR CO.
Using the special tool, remove the reverse clutch piston return spring retainer ring and retainer.

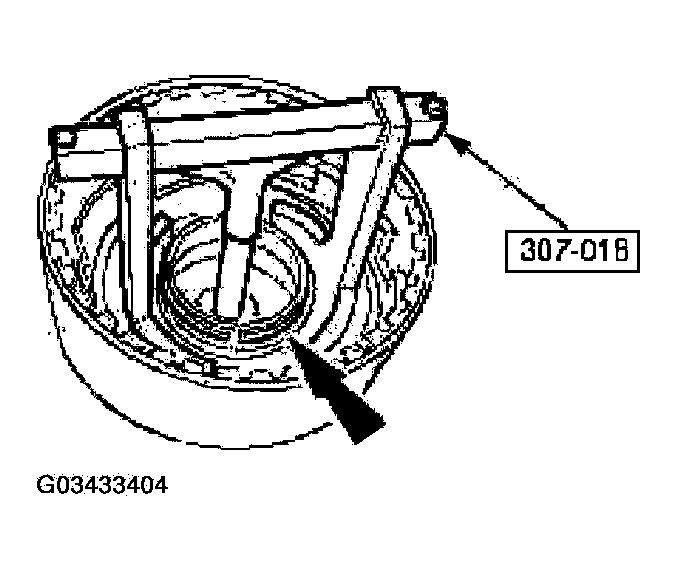

Fig 2: Removing Reverse Clutch Piston Return Spring Retainer Ring And Retainer
Courtesy of FORD MOTOR CO.
Remove the reverse clutch piston return spring.

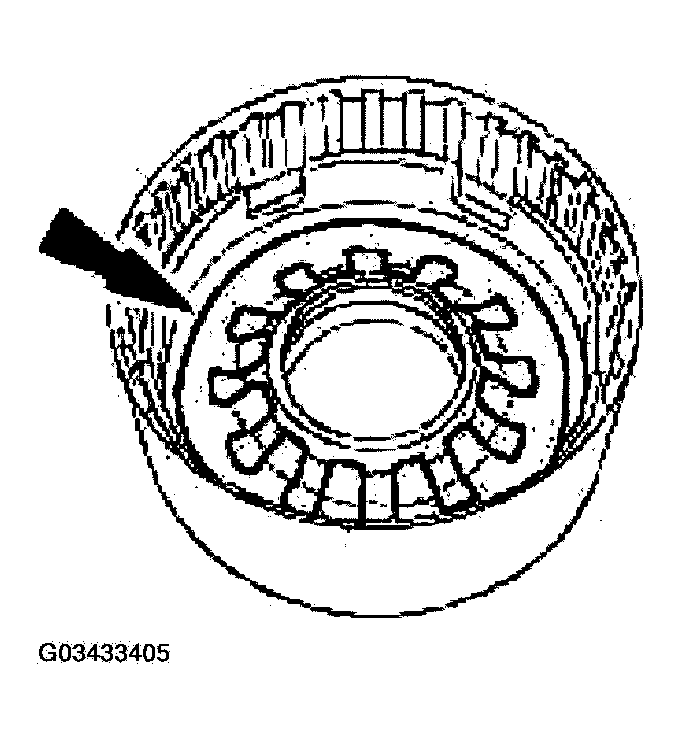

Fig 3: Removing Reverse Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.
Remove the reverse clutch piston assembly.

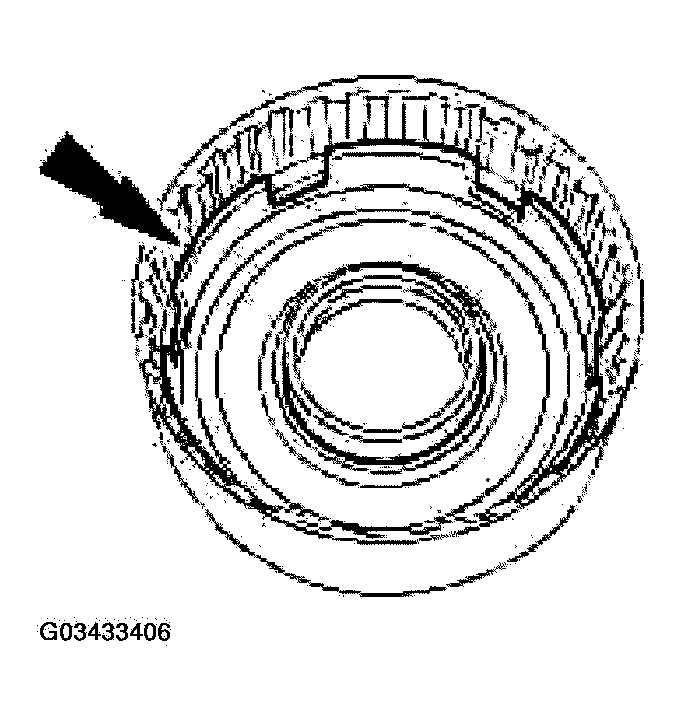

Fig 4: Removing Reverse Clutch Piston Assembly
Courtesy of FORD MOTOR CO.

CAUTION: If damage is found to the reverse clutch piston seals, install a new reverse clutch piston.

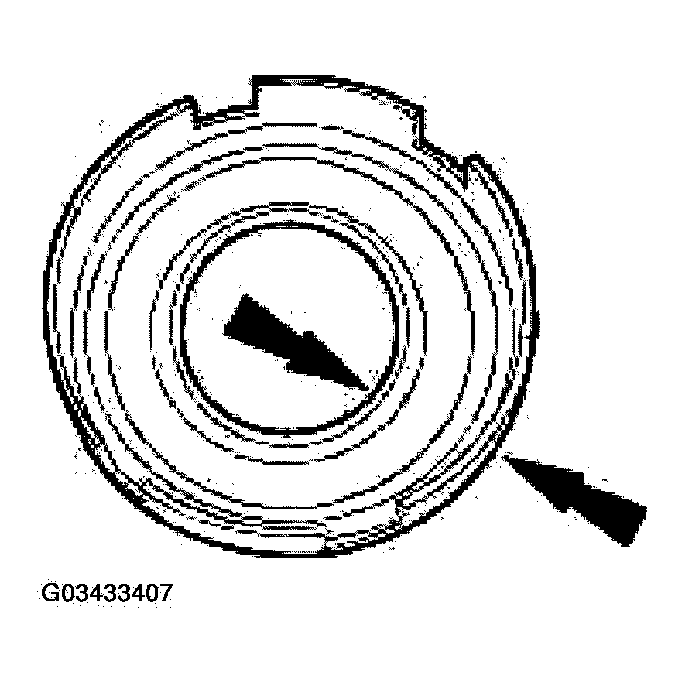

Fig 5: Inspecting Seal Bore In Drum, Inner And Outer Seals

Courtesy of FORD MOTOR CO.
