Torque Converter End Play Check: Check

  1. Using the special tool, measure the torque converter clutch end play by pulling upon the special tool. If the reading exceeds measurement install a new or remanufactured torque converter.

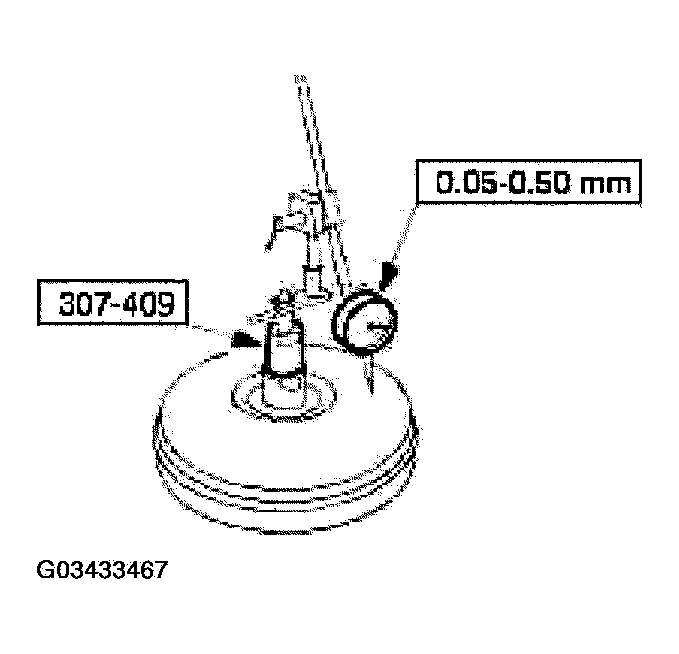

    Fig 1: Measuring Torque Converter Clutch End Play
    G03433467Courtesy of FORD MOTOR CO.
