Transfer Shaft: Disassembly

  1. Using the special tools, remove the right-hand side transfer shaft gear bearing.

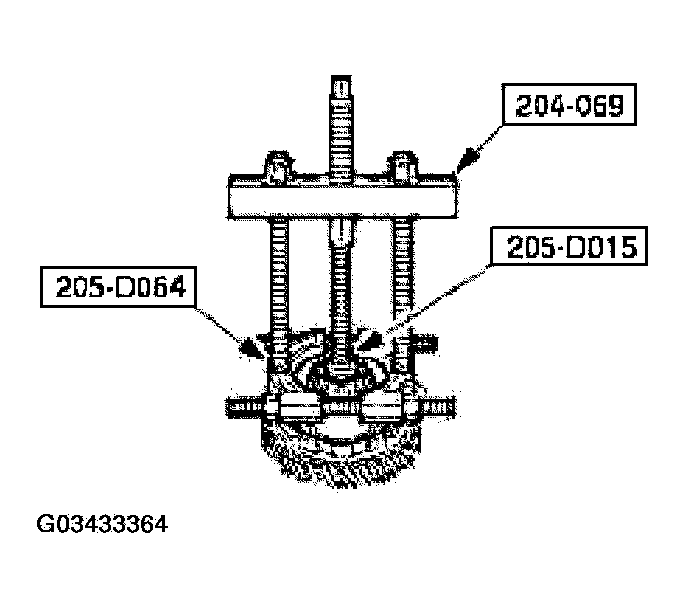

    Fig 1: Removing Right-Hand Side Transfer Shaft Gear Bearing
    G03433364Courtesy of FORD MOTOR CO.
  2. Using the special tool and a press, remove the left-hand side transfer shaft gear bearing while separating the gears.

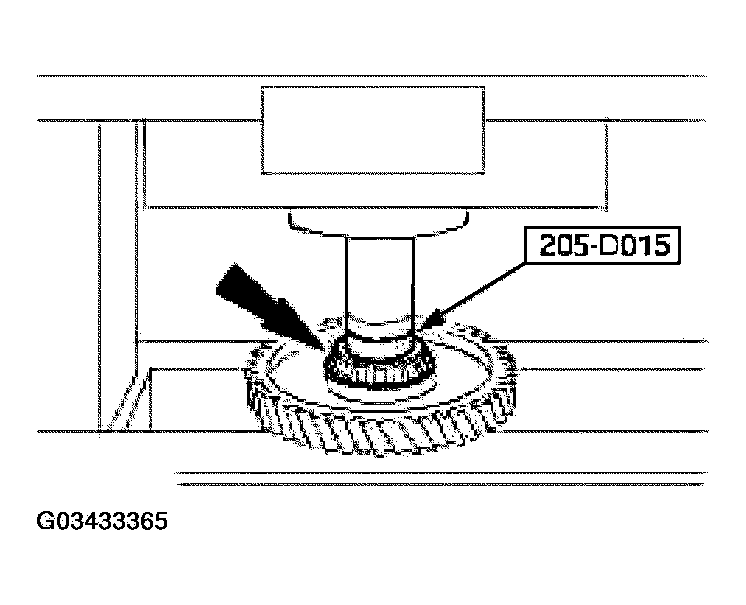

    Fig 2: Removing Left-Hand Side Transfer Shaft Gear Bearing
    G03433365Courtesy of FORD MOTOR CO.
