Output Shaft Speed (OSS) Sensor: Installation

    NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.
  1. Install the OSS sensor.
    • Connect the electrical connector.

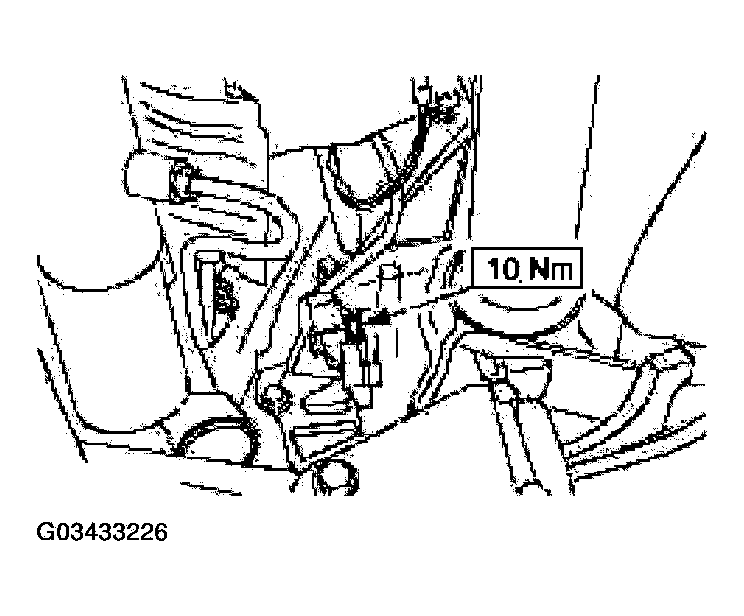

      Fig 1: Installing OSS Sensor
      G03433226Courtesy of FORD MOTOR CO.
  2. Lower vehicle.
  3. Check the transmission fluid level and add automatic transmission fluid as necessary.

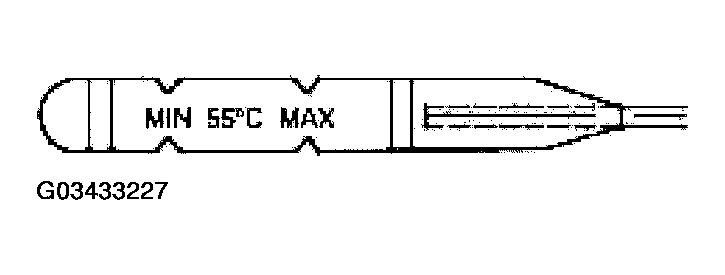

    Fig 2: Checking Transmission Fluid Level
    G03433227Courtesy of FORD MOTOR CO.
  4. Start the engine and move the transaxle range selector lever through all gear positions.
