Function Selector Knob

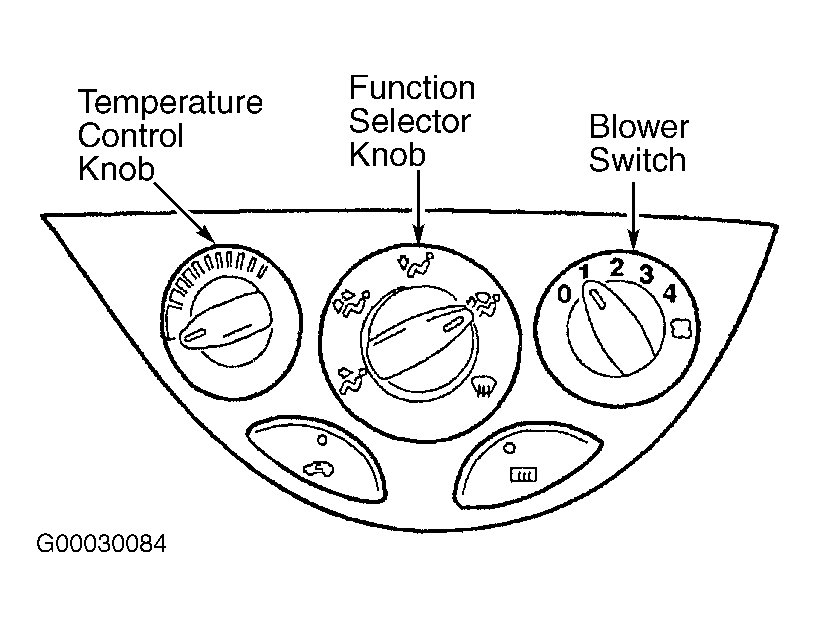

Function selector knob can be placed in panel, panel/floor, floor, floor/defrost or defrost position. See Figure. Function selector knob operates a cable connected to recirculation air actuator (next to blower motor). Which operate floor/defrost and panel doors.

At face level, main flow of air enters passenger compartment at face level.

At face level/floor level, main flow of air enters passenger compartment in equal parts at face level and floor level, and a small amount flows to demister nozzles of side windows.

At floor level, main flow of air enters passenger compartment at floor level, and a smaller amount flows to demister nozzles of side windows.

At demist/floor level, main flow of air enters passenger compartment in equal parts at windscreen and at floor level, and a smaller amount flows to demister nozzles of side windows.

At demist, main flow of air enters passenger compartment at windscreen and a smaller amount flows to demister nozzles of side windows.
