Steering Wheel Rotation Sensor: Installation

    WARNING: Do not install a new steering wheel rotation sensor, if the locking pin has been removed. Failure to follow this instruction may result in personal injury.
    WARNING: Before fitting the steering wheel rotation sensor, make sure the rotor is in the correct position. Failure to follow this instruction may result in personal injury.

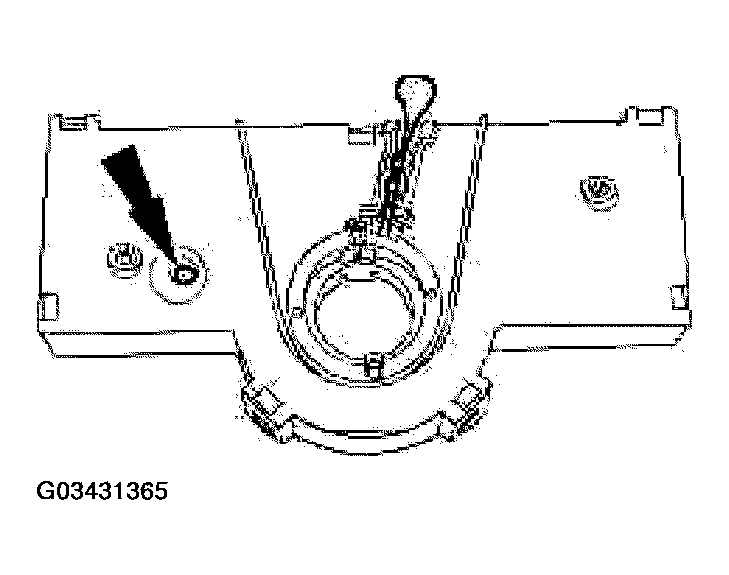

    Fig 1: Identifying Indicator Alignment Position
    G03431365Courtesy of FORD MOTOR CO.
  1. Check that the alignment indicator is in the correct position.
    2. WARNING: Make sure the steering wheel rotation sensor retaining clamp screws are not over tightened. Failure to follow this instruction may result in personal injury.

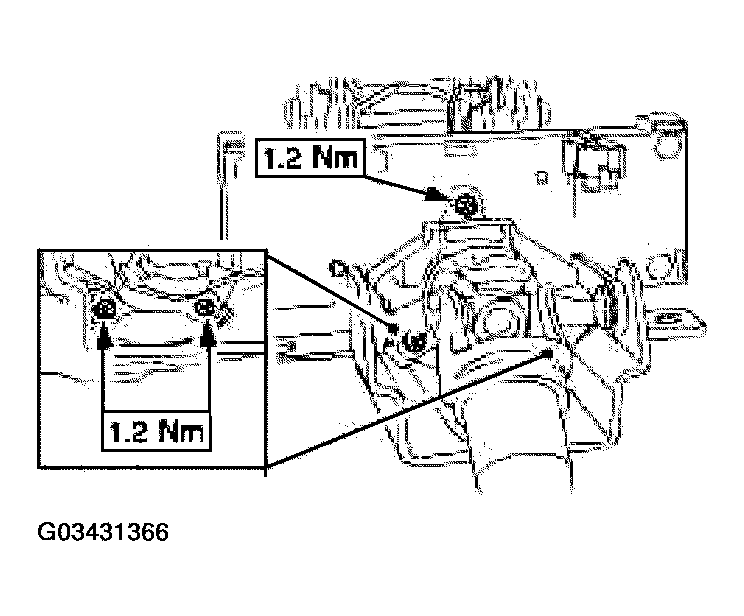

    Fig 2: Installing Steering Wheel Rotation Sensor
    G03431366Courtesy of FORD MOTOR CO.
  2. Install the steering wheel rotation sensor.
    3. WARNING: Make sure the steering wheel rotation sensor retaining clamp screws are not over tightened. Failure to follow this instruction may result in personal injury.
  3. Install the steering wheel rotation sensor clamp.
    1. Install the screws.
    2. Apply grease to Ford specification, to the steering column splines.

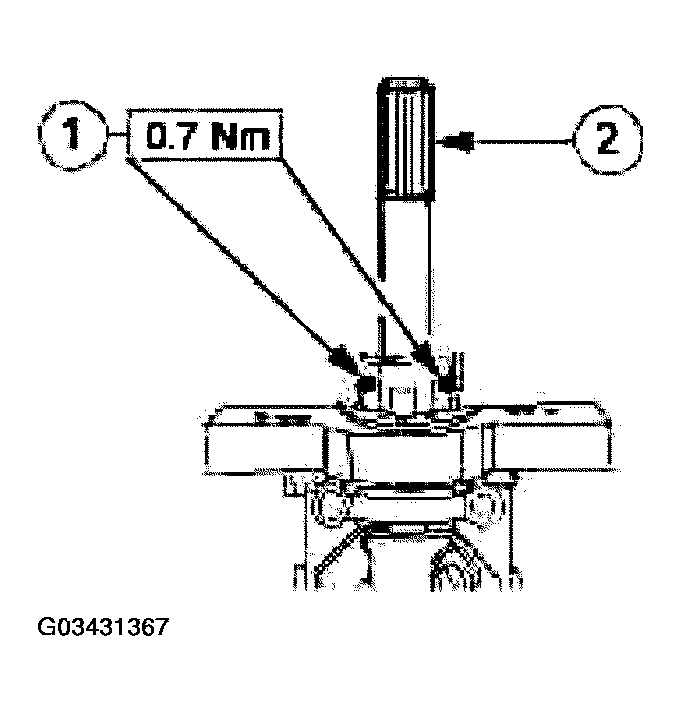

      Fig 3: Installing Steering Wheel Rotation Sensor Clamp
      G03431367Courtesy of FORD MOTOR CO.
    4. NOTE: Make sure the steering column shafts are aligned correctly.

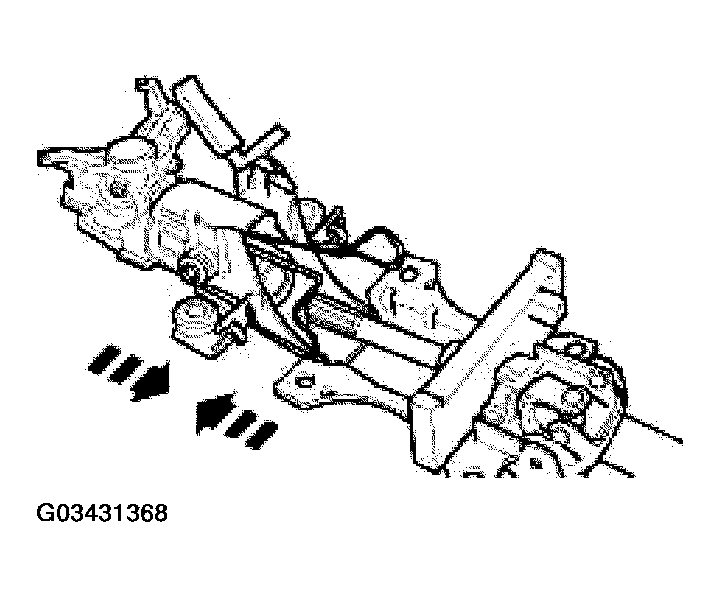

    Fig 4: Connecting Steering Column Halves
    G03431368Courtesy of FORD MOTOR CO.
  4. Connect the steering column two halves.
    5. WARNING: Make sure the breakaway capsules are located in the holes in the bracket. Failure to follow this instruction may result in personal injury.
    WARNING: Make sure the bolt is not over tightened. Failure to follow this instruction may result in personal injury.
  5. Install the steering column bolt.
    1. Align the breakaway capsules.
    2. Tighten the steering column bolt.

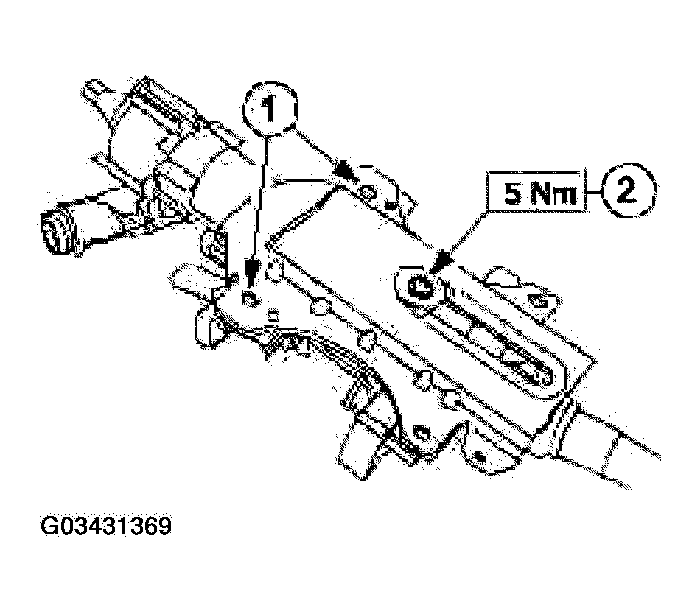

      Fig 5: Installing And Tightening Steering Column Bolt
      G03431369Courtesy of FORD MOTOR CO.
    6. WARNING: Make sure the steering wheel rotation sensor locking pin is removed. Failure to follow this instruction may result in personal injury.

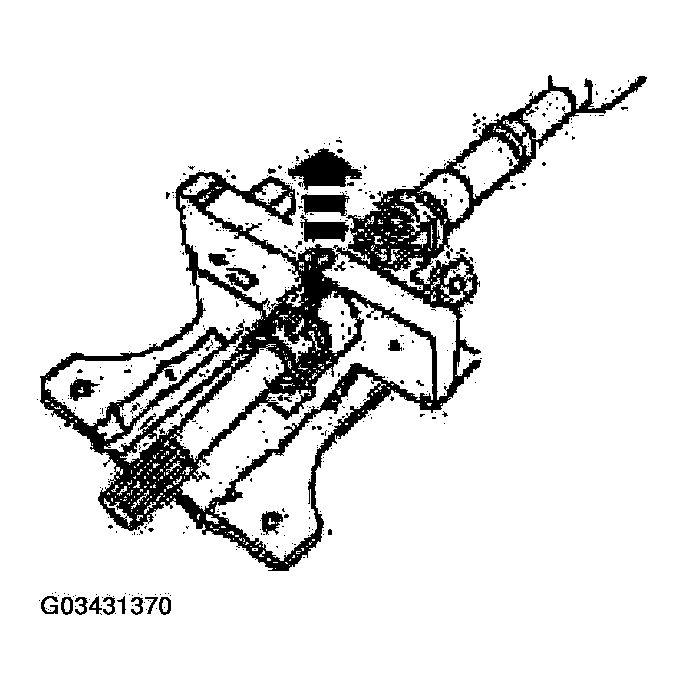

    Fig 6: Removing Locking Pin
    G03431370Courtesy of FORD MOTOR CO.
  6. Remove the locking pin.
    7. WARNING: Make sure the air bag sliding contact is centralized before installing. Failure to follow this instruction may result in personal injury.
  7. Centralize the air bag sliding contact.
    1. Turn the air bag contact in a COUNTERCLOCKWISE direction until a resistance is felt (approximately 2.5 turns from the central position).
    2. Turn the air bag sliding contact CLOCKWISE 2.5 turns until the arrow marked on the center of the sliding contact aligns with the raised "V" section at the 12 o'clock position on the outer cover of the sliding contact.

      The sliding contact is now centralized.

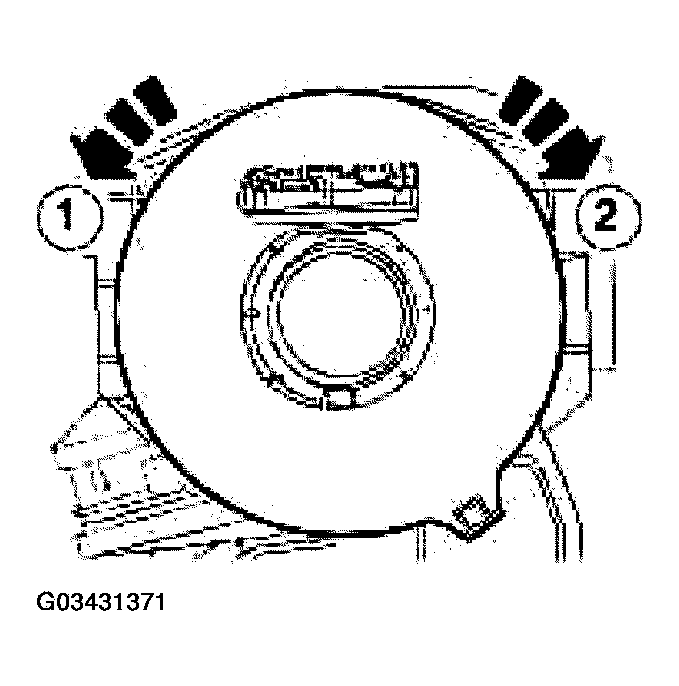

      Fig 7: Identifying Sliding Contact Position
      G03431371Courtesy of FORD MOTOR CO.
    8. CAUTION: Make sure the spacing collar is correctly located. Do not assemble if the spacing collar is missing.
  8. Install the air bag sliding contact.
    • Make sure both the retaining tangs lock into position on the steering column.

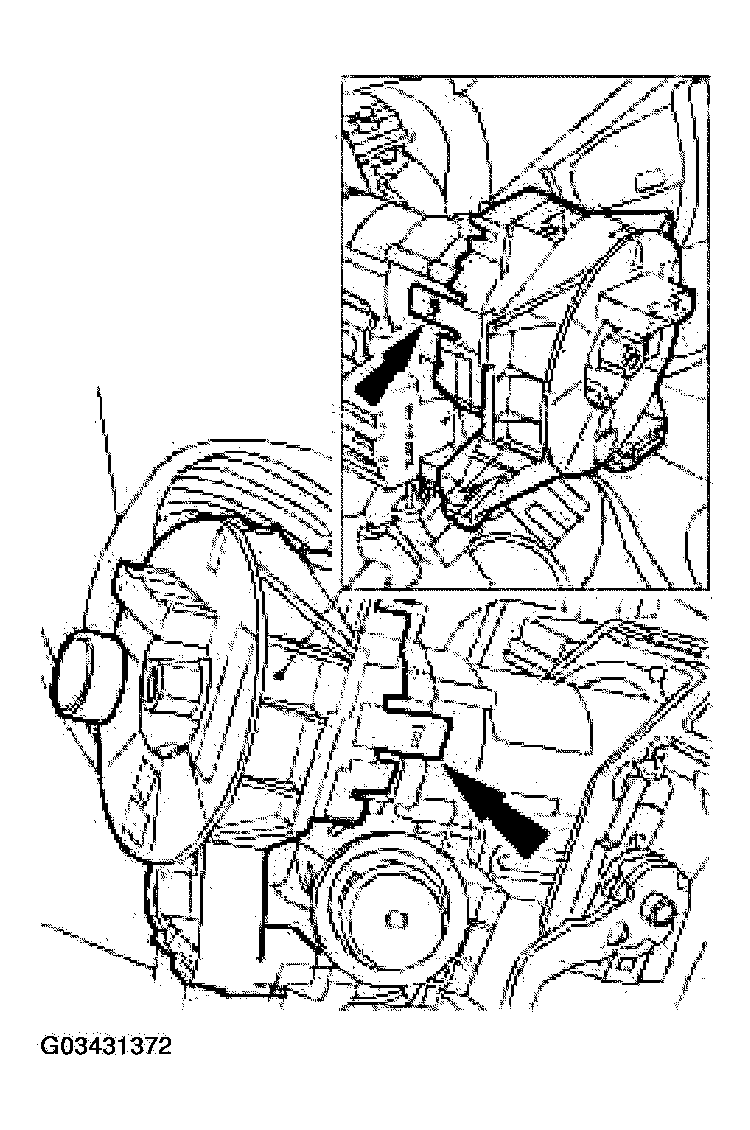

      Fig 8: Identifying Retaining Tangs Lock Position On Steering Column
      G03431372Courtesy of FORD MOTOR CO.
  9. Install the steering wheel.

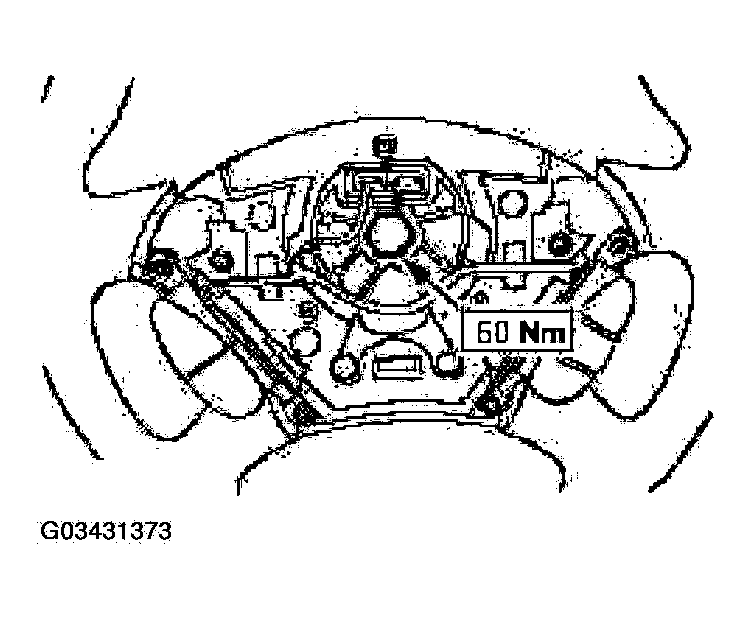

    Fig 9: Installing Steering Wheel
    G03431373Courtesy of FORD MOTOR CO.
  10. Install the driver air bag module.

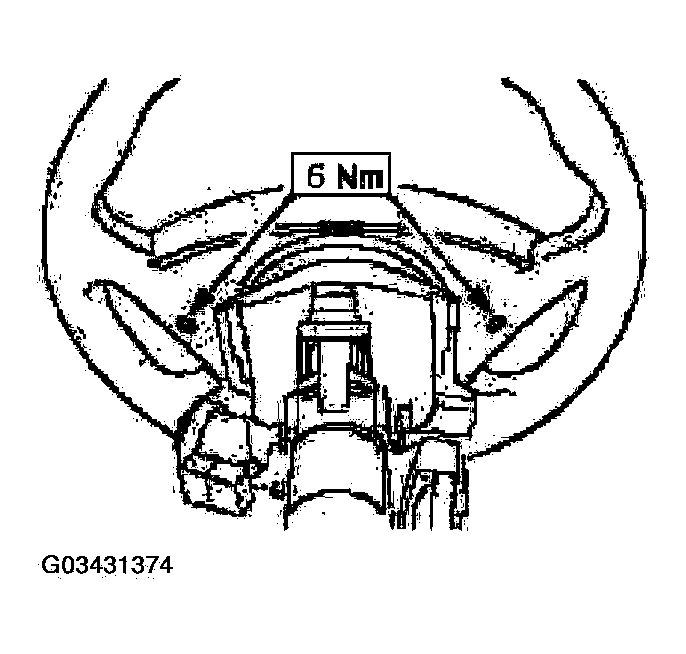

    Fig 10: Installing Driver Air Bag Module
    G03431374Courtesy of FORD MOTOR CO.
  11. Install the multifunction switches.

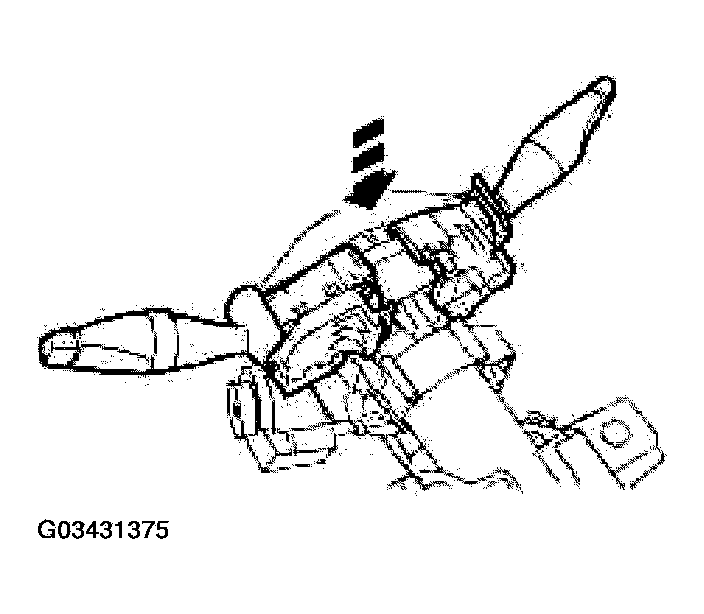

    Fig 11: Installing Multifunction Switches
    G03431375Courtesy of FORD MOTOR CO.
  12. Install the steering column. For additional information, refer to STEERING COLUMN .
