Connecting Rod Large End Bore

  1. Measure the bearing bore in two directions. The difference is the connecting rod bore out-of-round. Verify the out-of-round and the bearing bore is within specification.

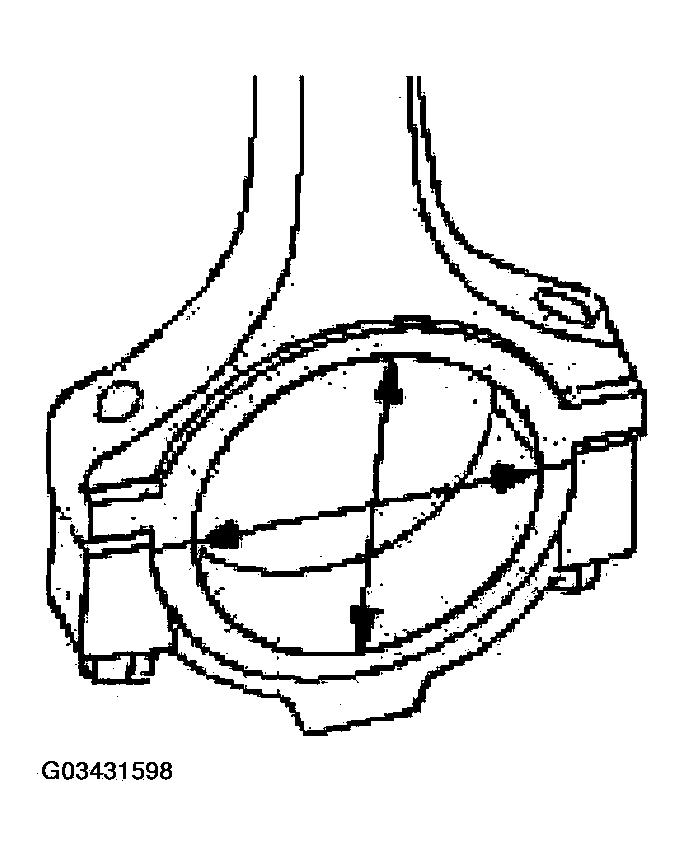

    Fig 1: Identifying Connecting Rod Large End Bore Dimension
    G03431598Courtesy of FORD MOTOR CO.
