Flywheel Inspection

  1. Inspect the flywheel. If there is evidence of the following, install a new flywheel.
    1. Cracks.
    2. Worn ring gear teeth.
    3. Chipped or cracked ring gear teeth.

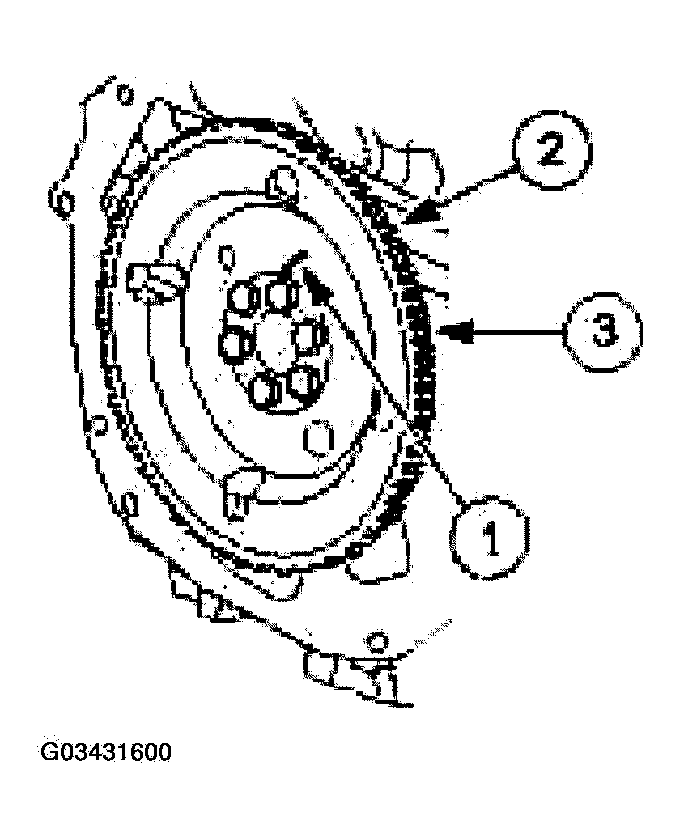

      Fig 1: Identifying Flywheel For Inspection
      G03431600Courtesy of FORD MOTOR CO.
