Valve Stem Diameter

  1. Using a micrometer measure the diameter of the valve stems.
    • If the measurements are not to specification, install a new valve.

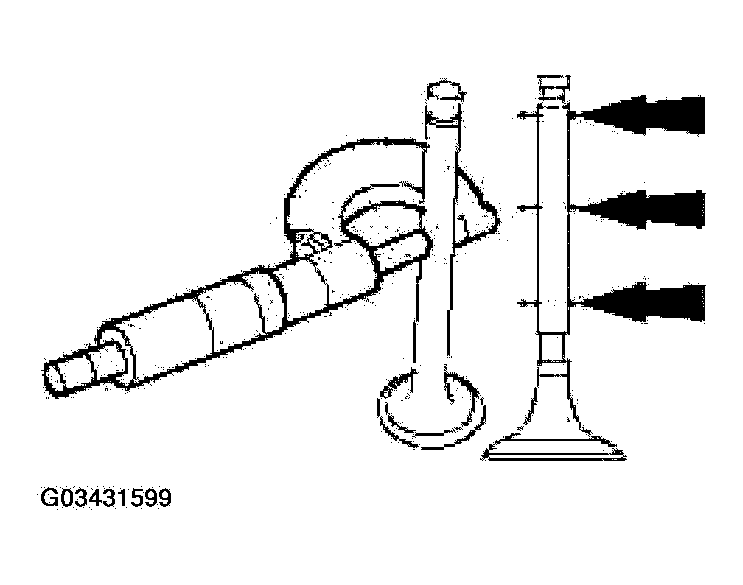

      Fig 1: Measuring Valve Stem Diameter
      G03431599Courtesy of FORD MOTOR CO.
