Connector Circuit Reference
WARNING:
This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

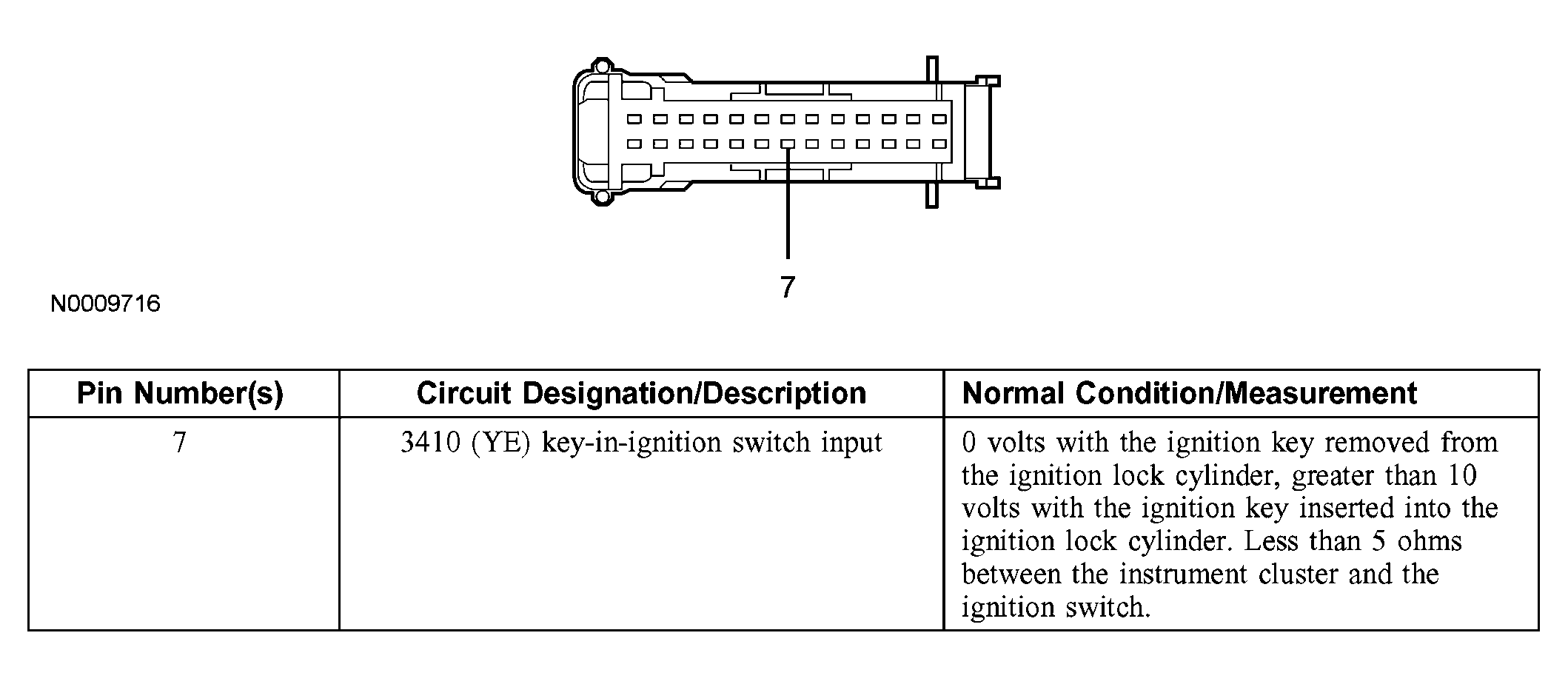

Fig 1: Connector Circuit Reference - Instrument Cluster C220
Courtesy of FORD MOTOR CO.

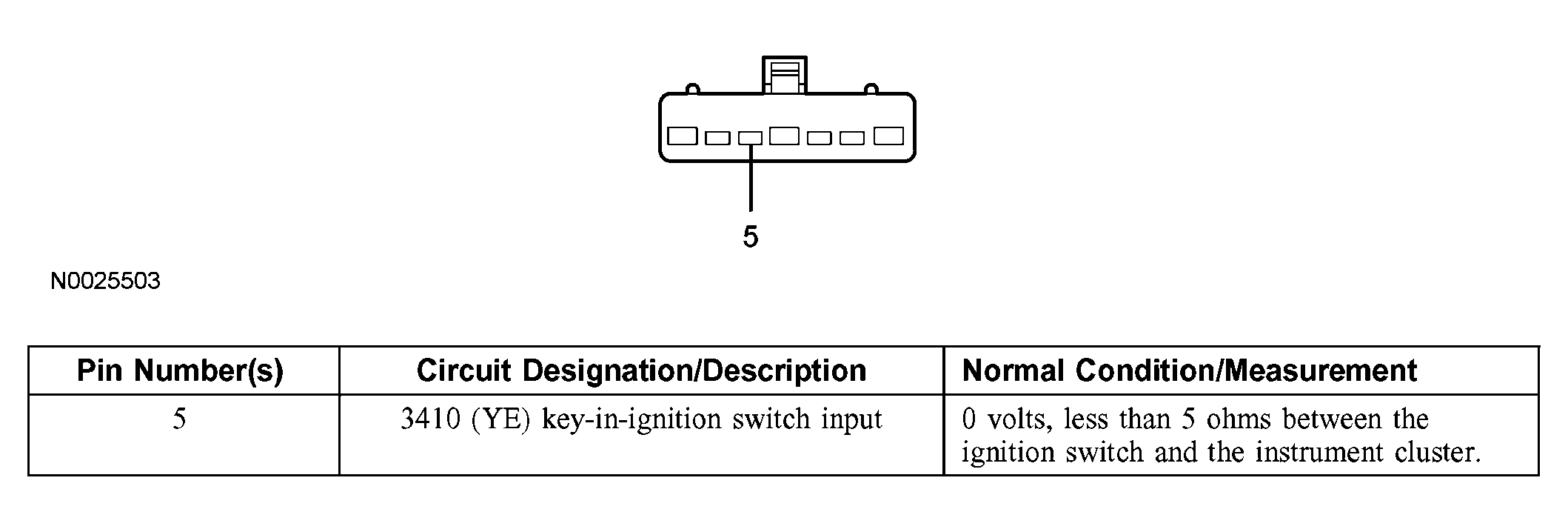

Fig 2: Connector Circuit Reference - Ignition Switch c250
Courtesy of FORD MOTOR CO.
