Lower Engine Components

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exploded View Of Lower Engine Components (1 Of 2)
G01614991Courtesy of FORD MOTOR CO.

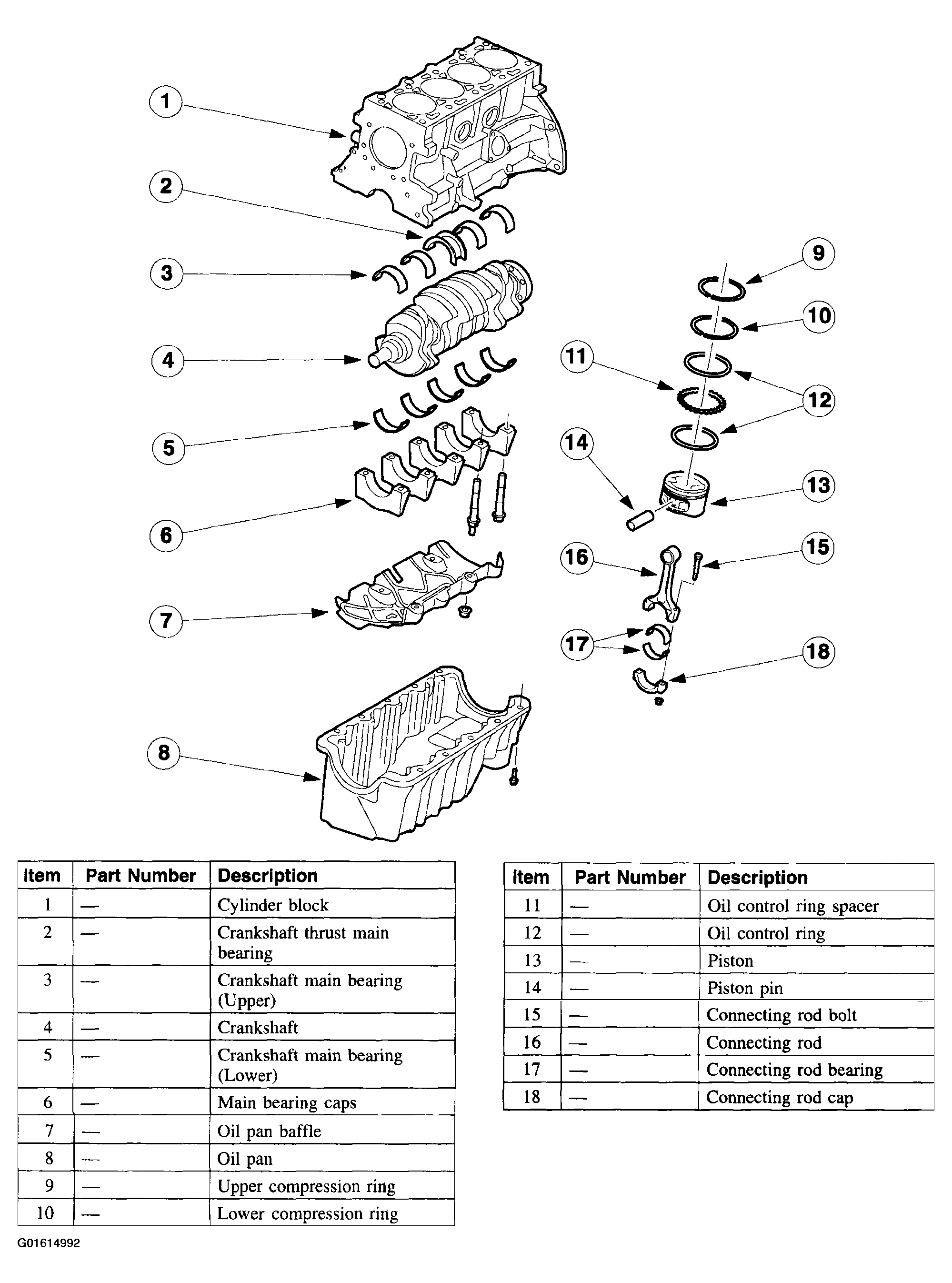

Fig 1: Exploded View Of Lower Engine Components (2 Of 2)
G01614992Courtesy of FORD MOTOR CO.
