In-Vehicle Repair: Camshaft: Installation

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Coat the cylinder head cam bore with engine oil prior to camshaft installation.

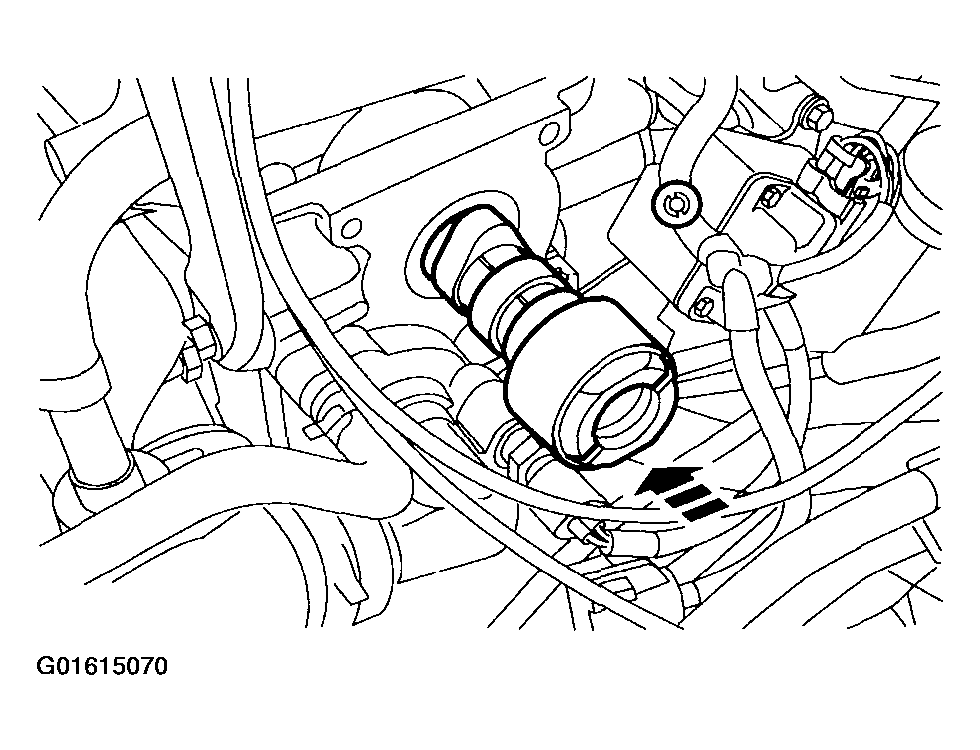

    Fig 1: Installing Camshaft
    G01615070Courtesy of FORD MOTOR CO.
  1. Install the camshaft through the rear of the cylinder head.
  2. Install the camshaft thrust plate.

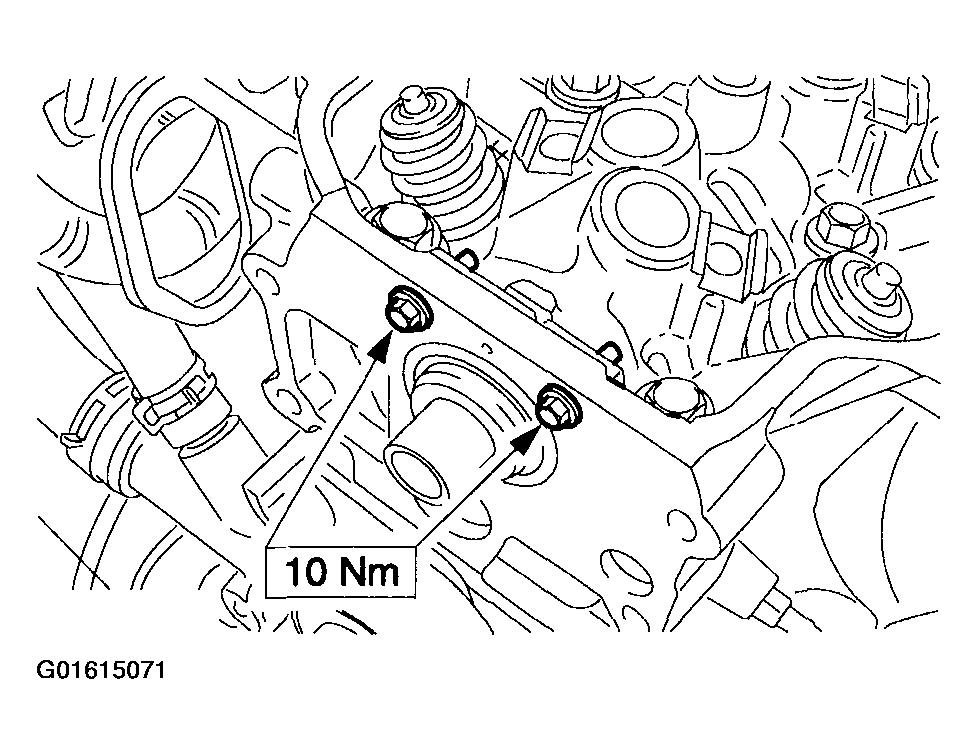

    Fig 2: Installing Camshaft Thrust Plate
    G01615071Courtesy of FORD MOTOR CO.
  3. Install a new camshaft oil seal. For additional information, refer to CAMSHAFT SEAL .
  4. Install a new blanking plug with sealer.

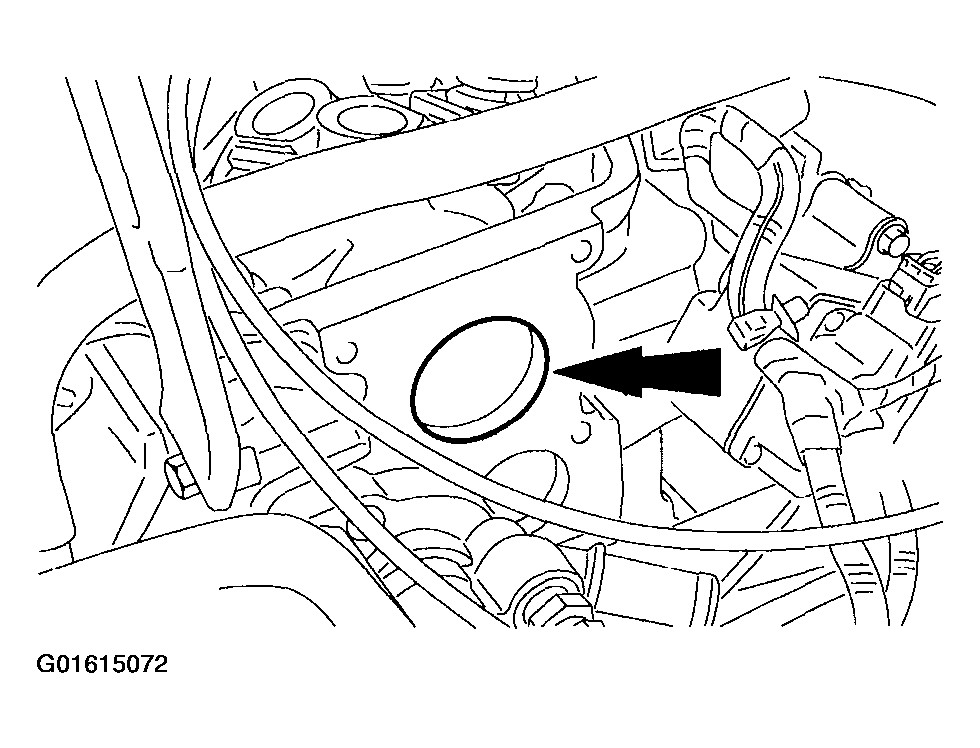

    Fig 3: Installing New Blanking Plug
    G01615072Courtesy of FORD MOTOR CO.
  5. Attach the air cleaner housing bracket.

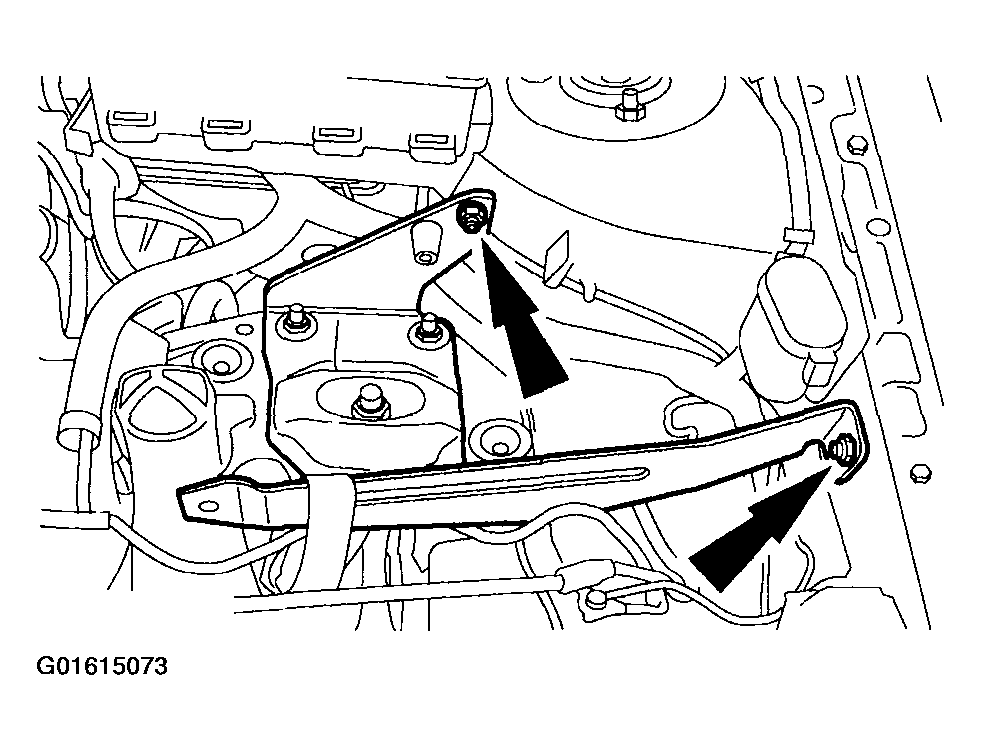

    Fig 4: Attaching Air Cleaner Housing Bracket
    G01615073Courtesy of FORD MOTOR CO.
  6. Install the engine rear mounting.
    Fig 5: Installing Engine Rear Mounting
    G01615074Courtesy of FORD MOTOR CO.
  7. Lower the engine.
  8. Remove the special tools.

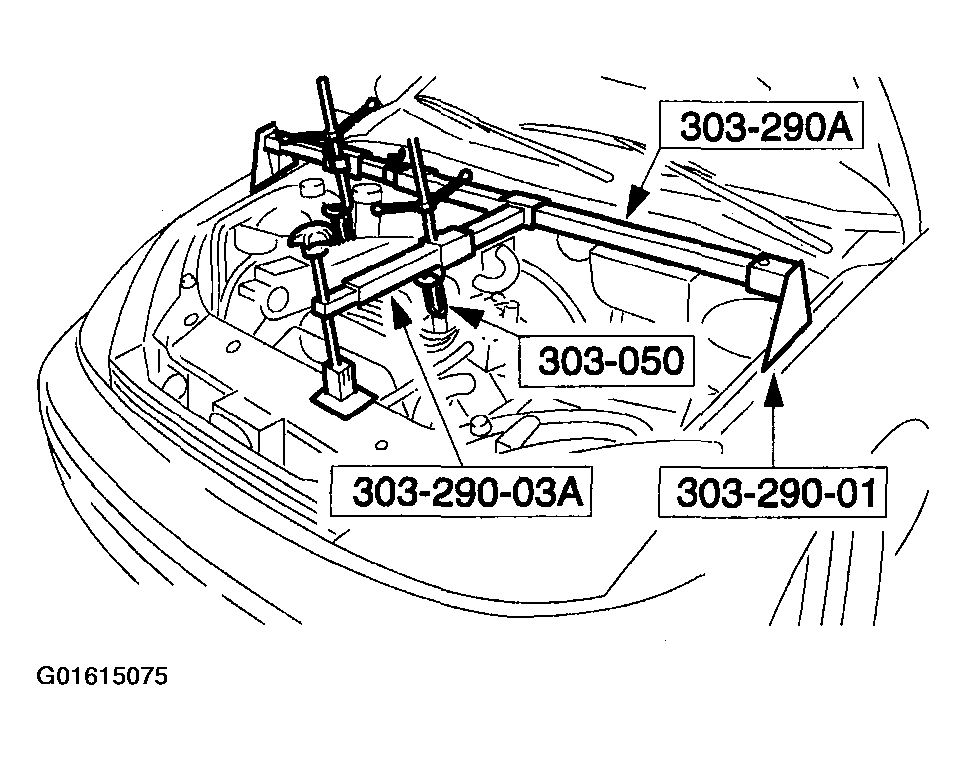

    Fig 6: Removing Special Tools
    G01615075Courtesy of FORD MOTOR CO.
  9. Install the timing belt. For additional information, refer to TIMING BELT .
    10. CAUTION: Color codes on valve tappets must index with oil feed holes in the cylinder head.
  10. Install the valve tappets using Hypoid oil.
    1. Install the valve tappets.
    2. Install the valve tappet guide plates.
    3. Install the valve tappet guide retainers.

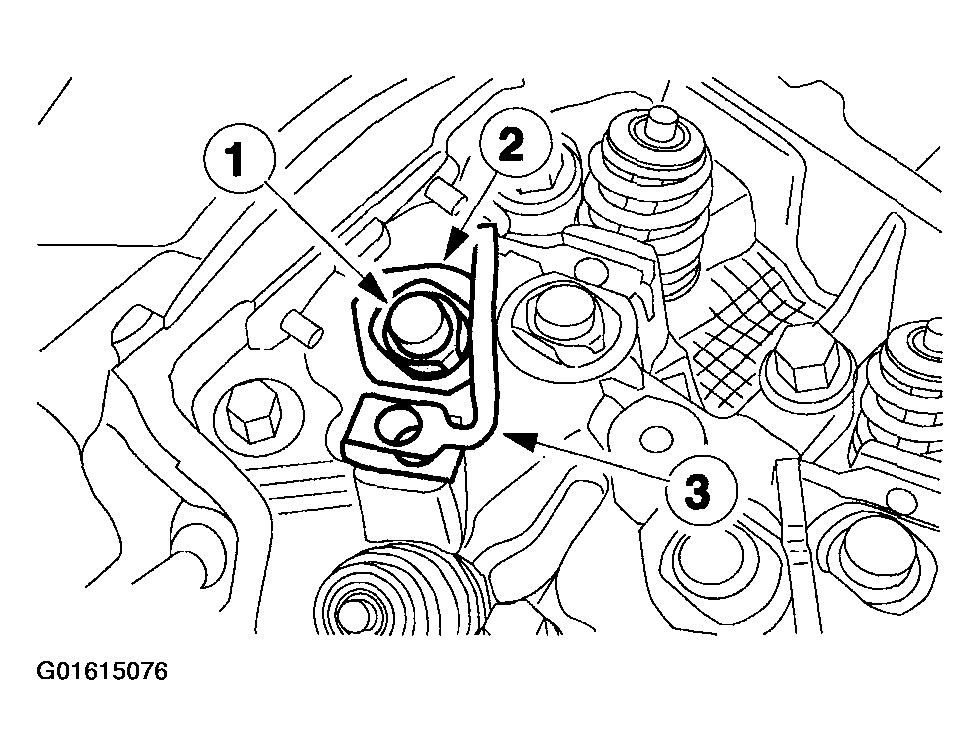

      Fig 7: Installing Valve Tappets
      G01615076Courtesy of FORD MOTOR CO.
    11. NOTE: Check that the rocker guides are sitting correctly.

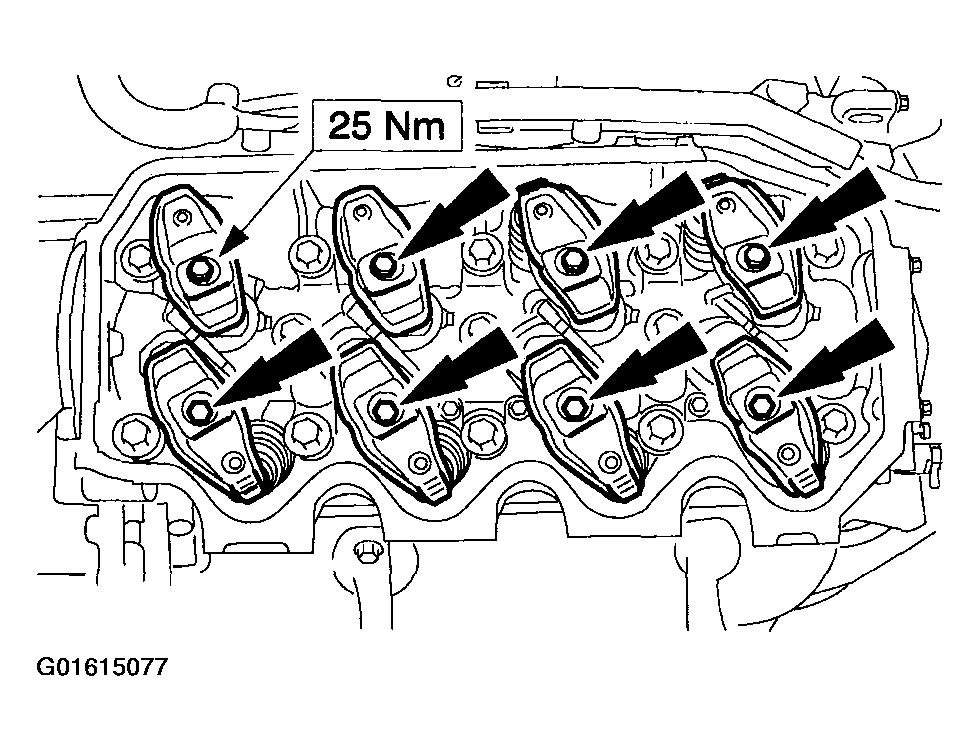

    Fig 8: Installing Rocker Arms
    G01615077Courtesy of FORD MOTOR CO.
  11. Install the rocker arms.
  12. Install the valve cover.

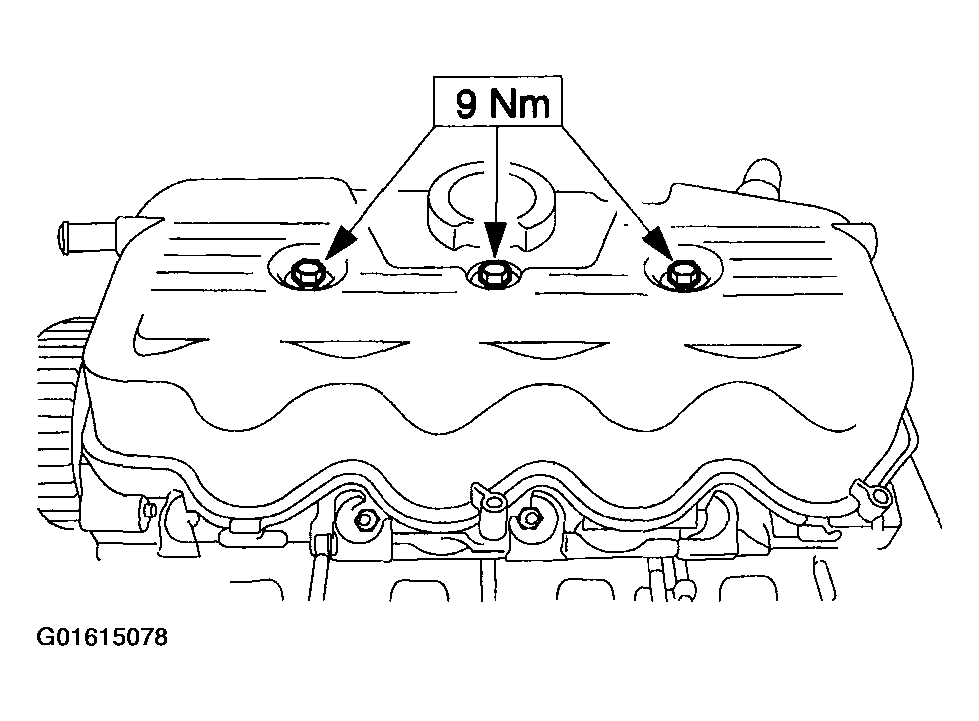

    Fig 9: Installing Valve Cover
    G01615078Courtesy of FORD MOTOR CO.
  13. Connect the fresh air and positive crankcase ventilation hoses.
    • Make sure that the positive crankcase ventilation hose is secured.

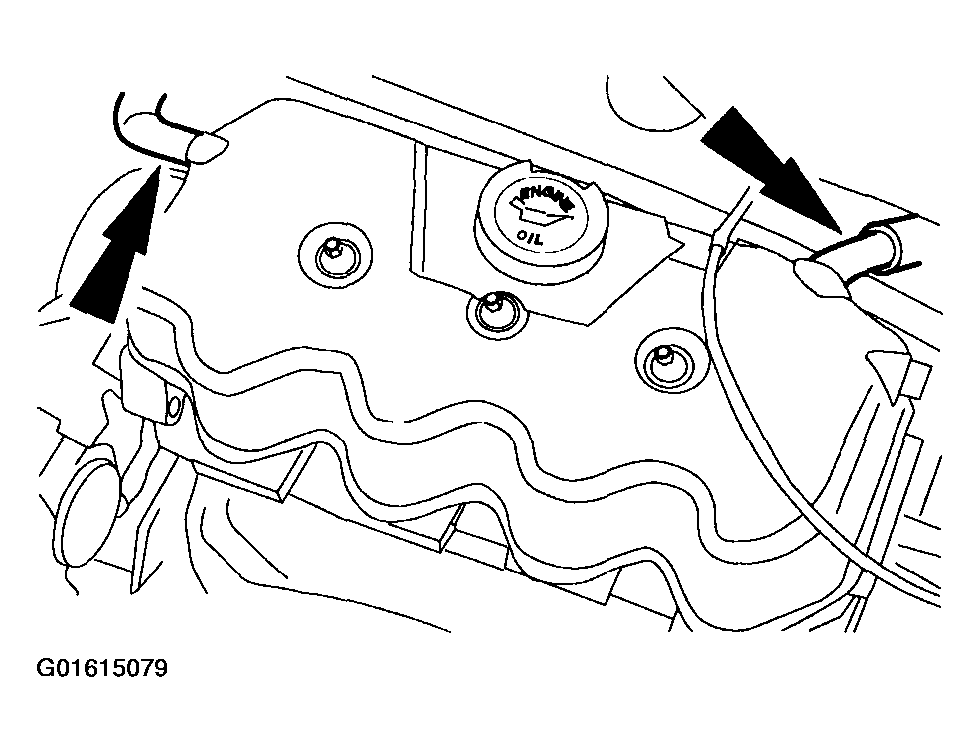

      Fig 10: Connecting Fresh Air And Positive Crankcase Ventilation Hoses
      G01615079Courtesy of FORD MOTOR CO.
  14. Install the EI coil.
    1. Connect the electrical connector.
    2. Install the bolts.

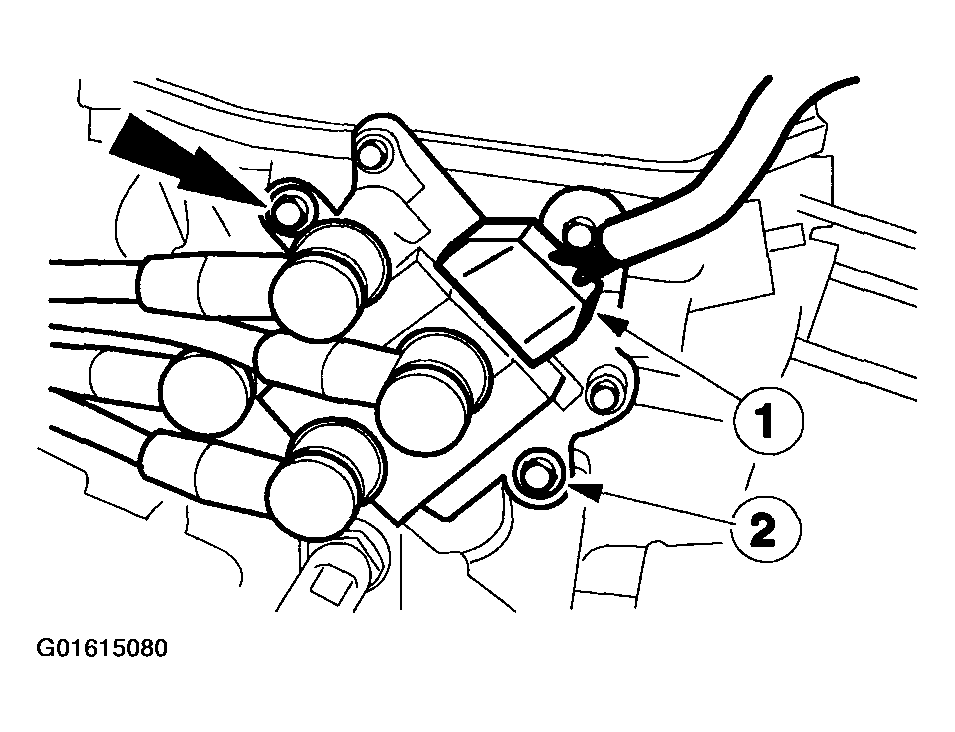

      Fig 11: Installing EI Coil
      G01615080Courtesy of FORD MOTOR CO.
  15. Install the air cleaner intake pipe.

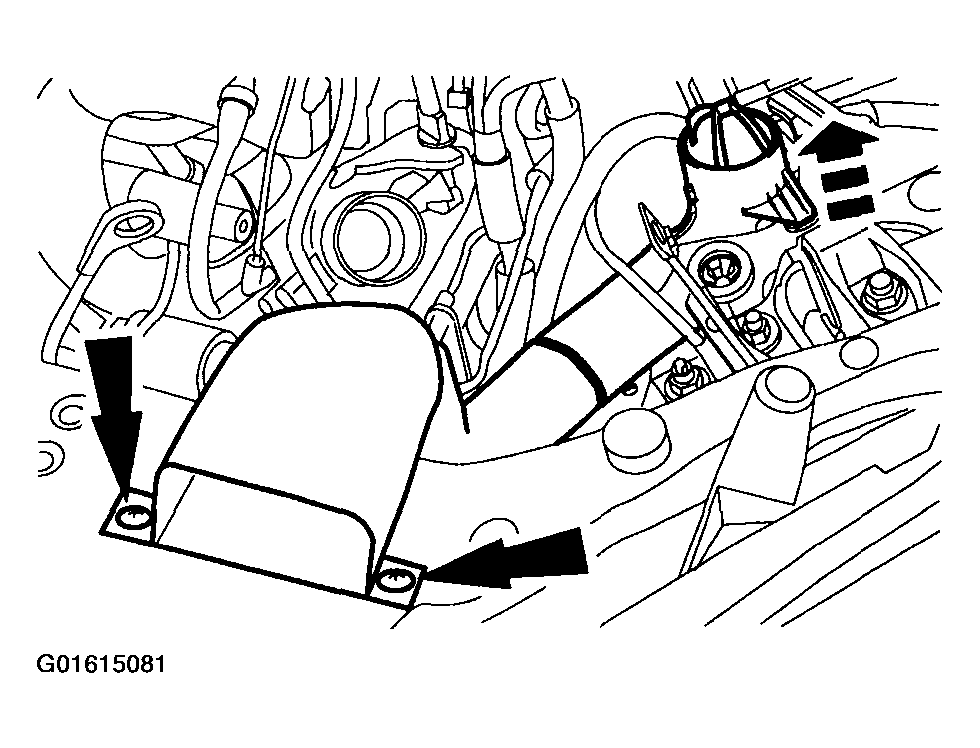

    Fig 12: Installing Air Cleaner Intake Pipe
    G01615081Courtesy of FORD MOTOR CO.
  16. Install the air cleaner housing.
    1. Connect the MAF electrical connector.
    2. Attach the air cleaner intake pipe.
    • Push the air cleaner housing into the rubber bushing.

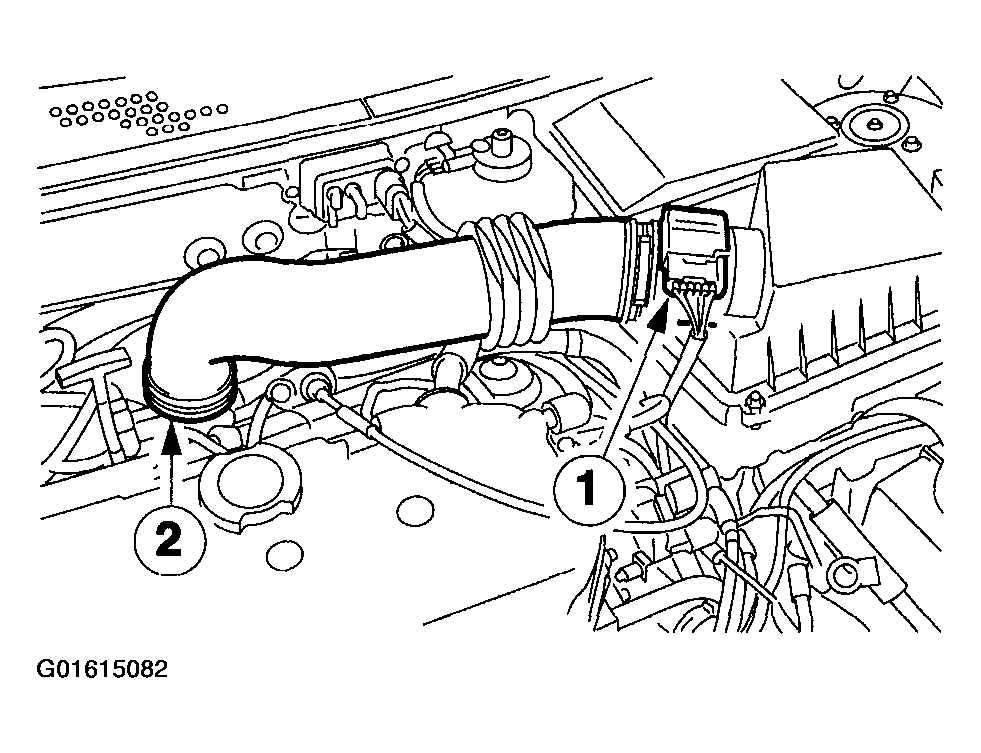

      Fig 13: Installing Air Cleaner Housing
      G01615082Courtesy of FORD MOTOR CO.
  17. Install the battery tray.
    1. Install the positive and negative cables.
    2. Tighten the bolts.
    3. Clip on the wiring harness.
    4. Connect and attach the electrical connector.

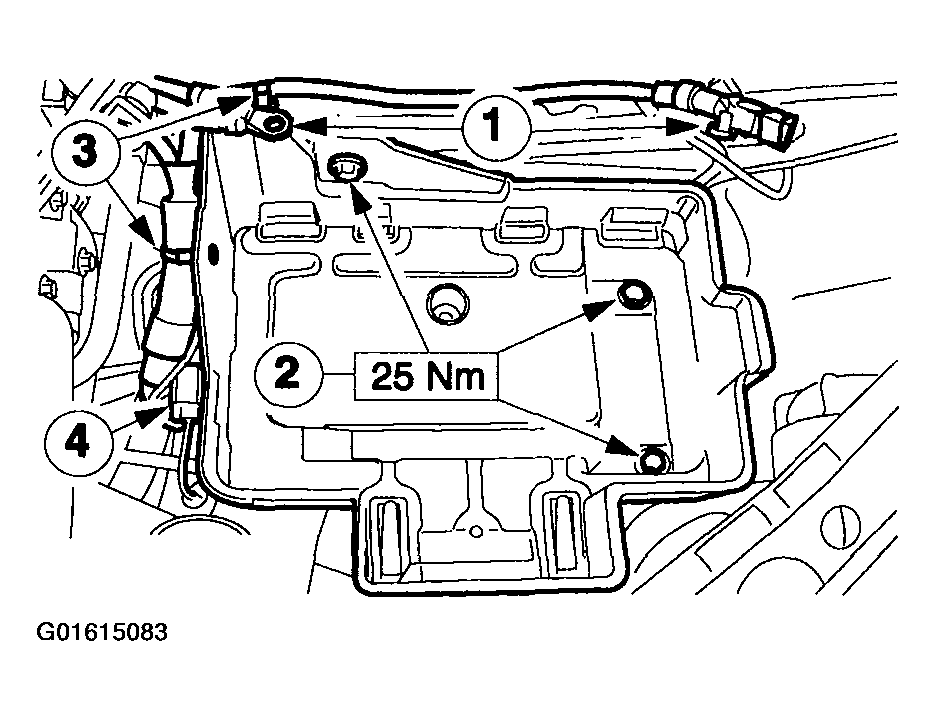

      Fig 14: Installing Battery Tray
      G01615083Courtesy of FORD MOTOR CO.
  18. Install the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  19. Standard finishing operations:
    • Check fluid levels and correct if necessary.
