Section 298 (Engine-2.0L SPI): Specifications: Pistons

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

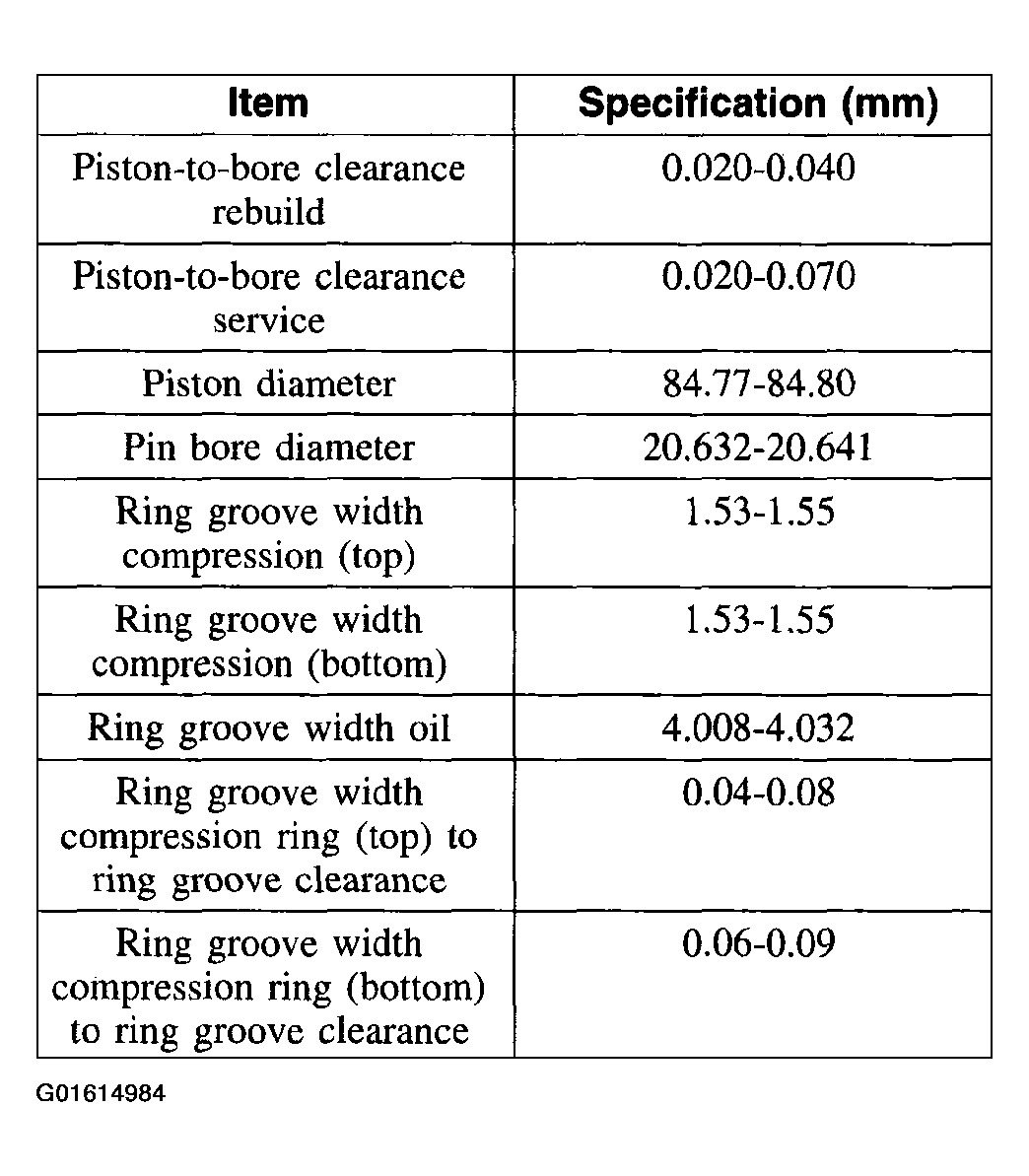

Fig 1: Pistons Specifications Chart (1 Of 2)
G01614984Courtesy of FORD MOTOR CO.

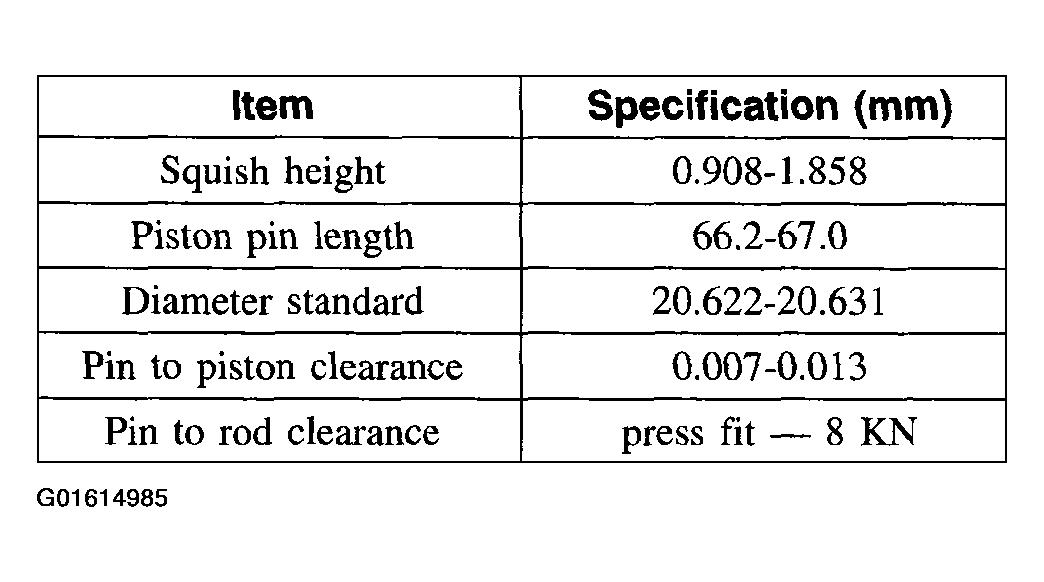

Fig 2: Pistons Specifications Chart (2 Of 2)
G01614985Courtesy of FORD MOTOR CO.
