Steering Gear Bushing: Installation

    NOTE: Lubricate the new bushing with a suitable rubber lubricant.

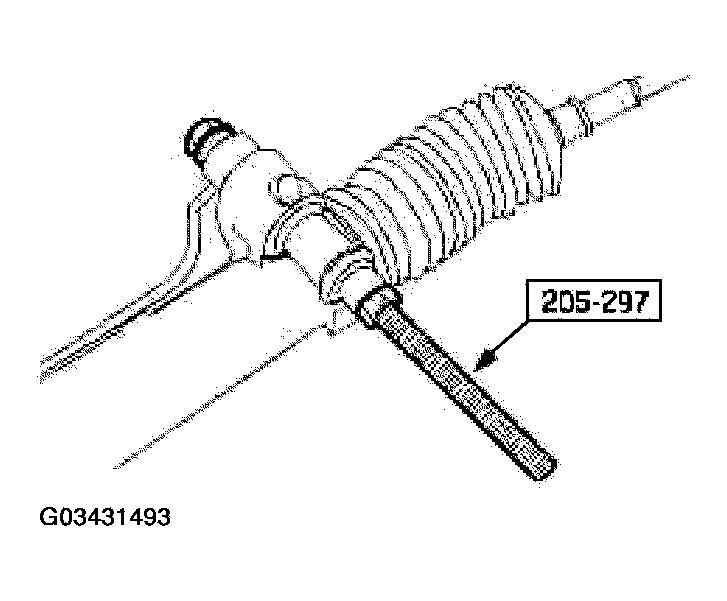

    Fig 1: Installing New Insulator Bushings.
    G03431493Courtesy of FORD MOTOR CO.
  1. Using the special tool, install new insulator bushings.
  2. Using the special tools, make sure the insulator bushings are installed to the correct depth.

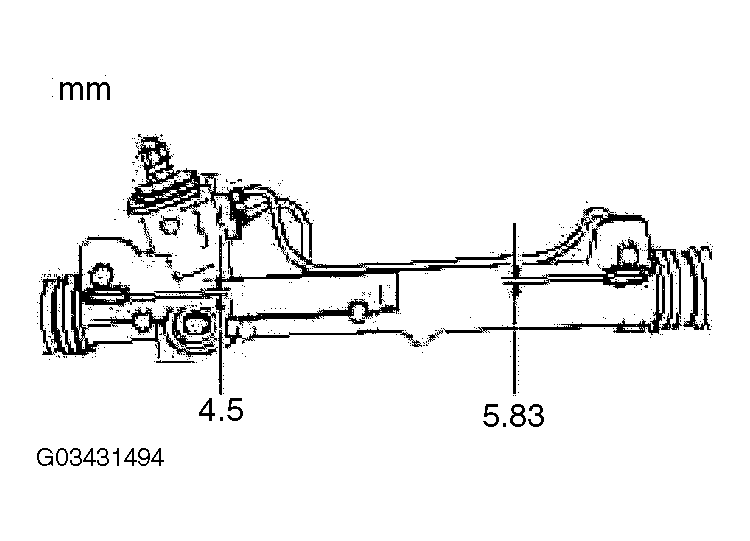

    Fig 2: Checking Insulator Bushing Installation Depth
    G03431494Courtesy of FORD MOTOR CO.
  3. Install the steering gear. For additional information, refer to INSTALLATION  .
