Steering System

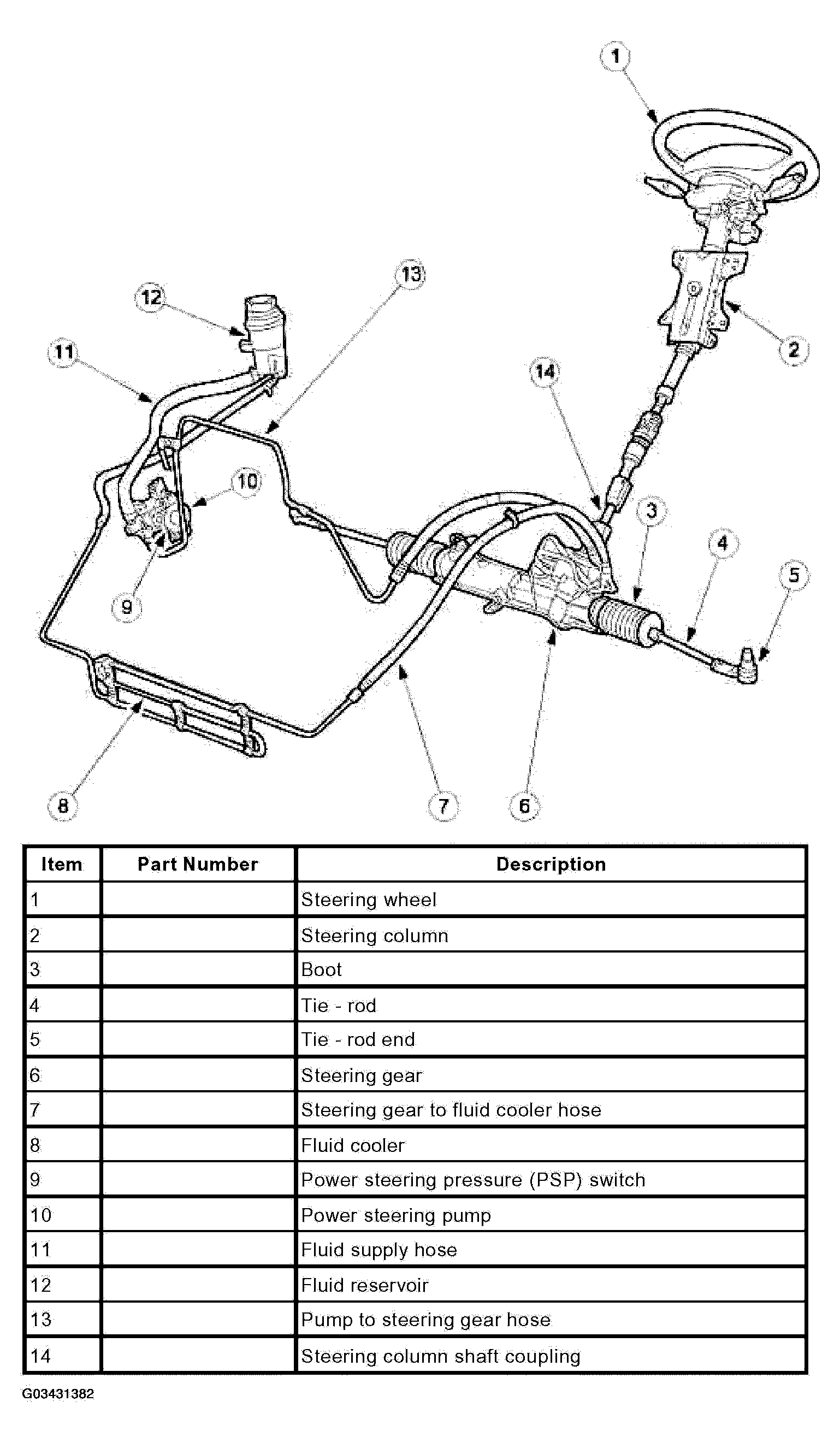

Fig 1: Identifying Steering System Components (2.0L Shown Other Variants Similar)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
