Power Steering System Flushing: Flushing
- Disconnect the crankshaft position (CKP) sensor. For additional information, refer to SENSORS .

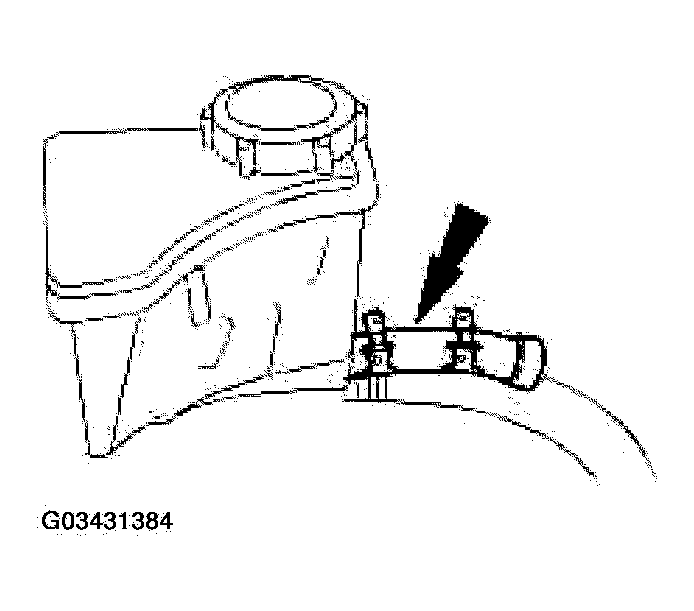

- Disconnect the return line from the power steering fluid reservoir.
- Allow the fluid to drain into a suitable container.
- Cap the power steering fluid reservoir with a suitable piece of hose.
- Place the end of the return line into a suitable container.

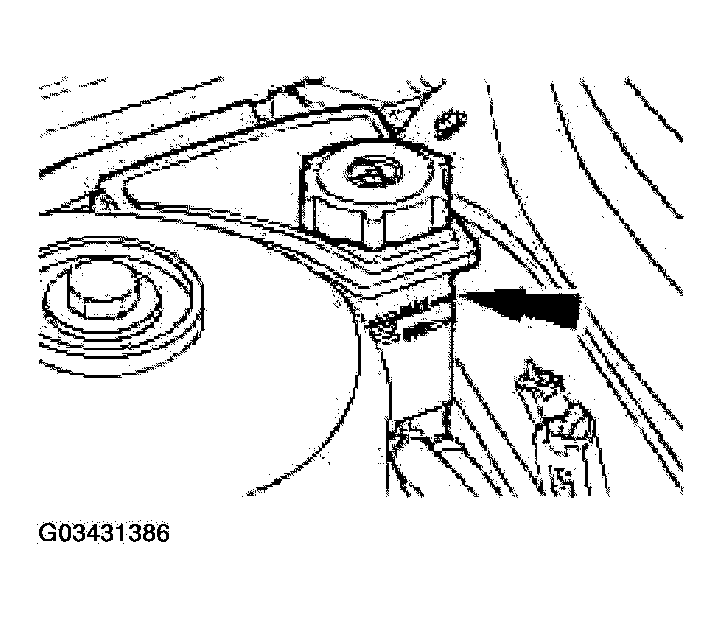

- Fill the power steering fluid reservoir to the MAX mark with power steering fluid.
- While adding 1.9 liters (0.50 gallon) of power steering fluid turn the ignition switch to the START position.
- When all the fluid has been used, turn the ignition switch to the OFF position.

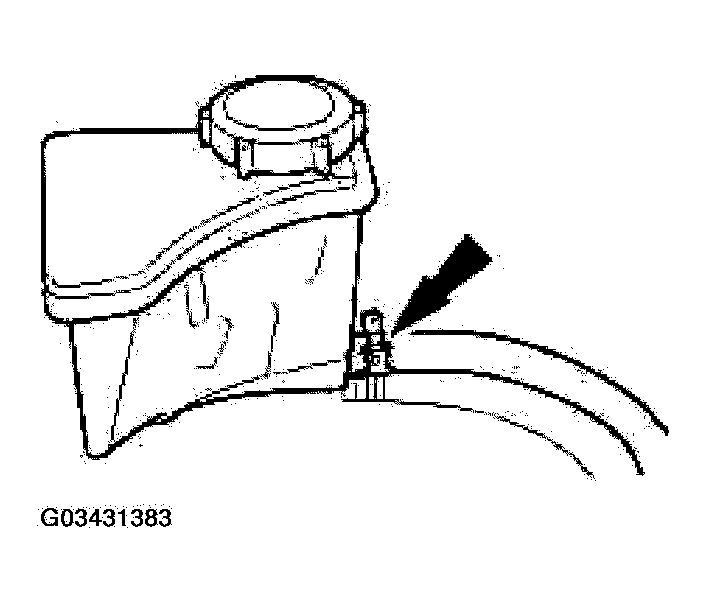

- Connect the fluid return line to the power steering fluid reservoir.
- Remove the cap from the reservoir.

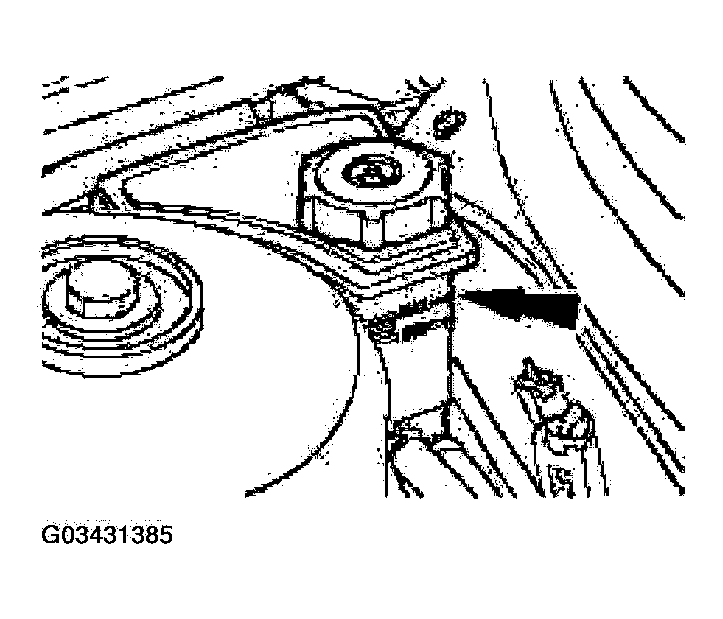

- Fill the power steering fluid reservoir to the MAX mark with power steering fluid.
- Connect the CKP sensor. For additional information, refer to SENSORS .
CAUTION:
Do not continuously crank the engine for more than 30 seconds. Failure to follow this instruction may result in damage to the starter motor.
NOTE:
When filling the reservoir, make sure the fluid is clean and not agitated prior to use. The fluid should be poured slowly into the reservoir to minimize the possibility of aeration. The fluid level should be checked with the fluid cold.
