Steering Wheel: Installation

WARNING: When installing the steering wheel make sure the air bag sliding contact is centralized. For additional information, refer to AIR BAG RESTRAINT SYSTEMS article. Failure to follow this instruction may result in personal injury.

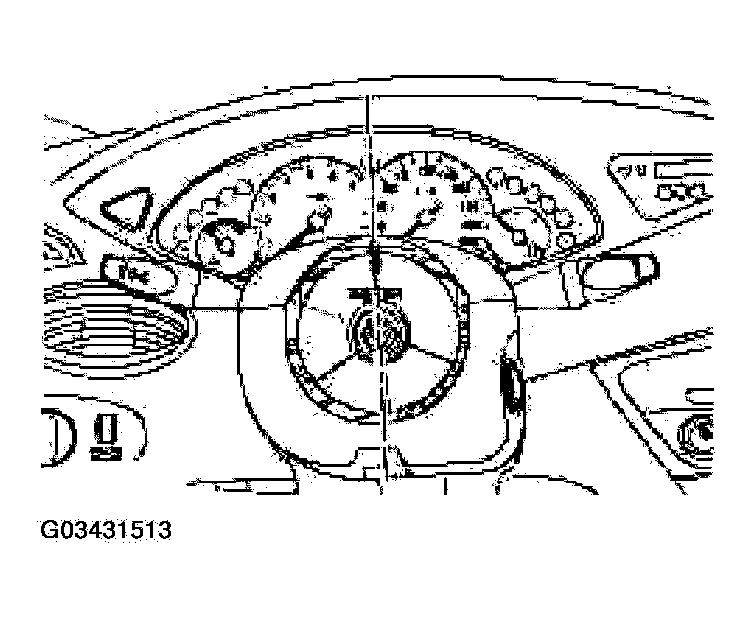

Fig 1: Centering Air Bag Sliding Contact
G03431513Courtesy of FORD MOTOR CO.
CAUTION: After installation, check the correct location of the steering wheel on the steering column shaft by turning the steering wheel in a counterclockwise direction.
  1. To Install, reverse the removal procedure.

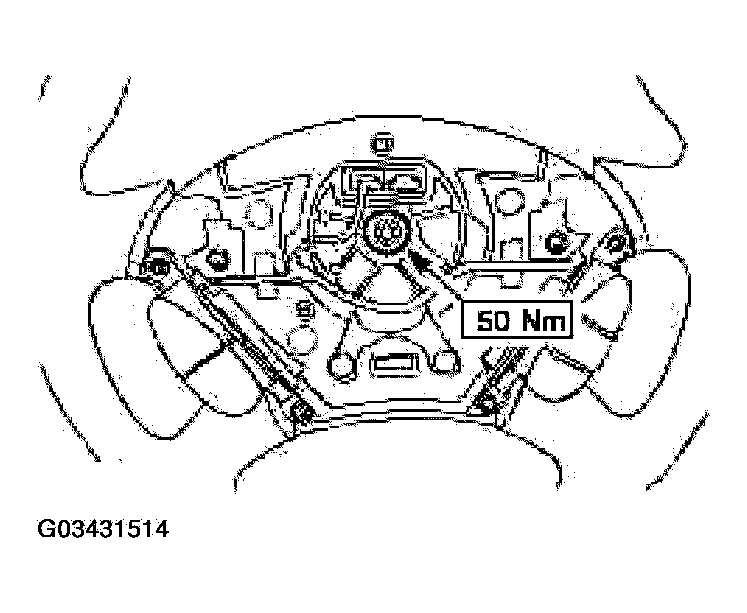

    Fig 2: Locating Steering Wheel Nut With Torque Specification
    G03431514Courtesy of FORD MOTOR CO.
