Removal And Installation: Tie-Rod: Removal

Remove the steering gear. For additional information, refer to STEERING GEAR .

NOTE: Make a note of the number of turns required to remove the tie-rod end.

Remove the tie-rod end and lock nut.
1. Remove the tie-rod end.

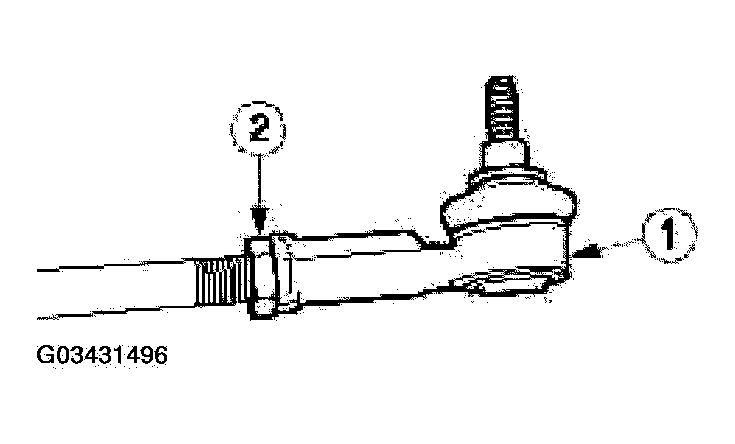

  Fig 1: Removing Tie-Rod End & Lock Nut
  Courtesy of FORD MOTOR CO.
2. Remove the tie-rod end lock nut.
Remove the boot.
1. Remove the clamps.

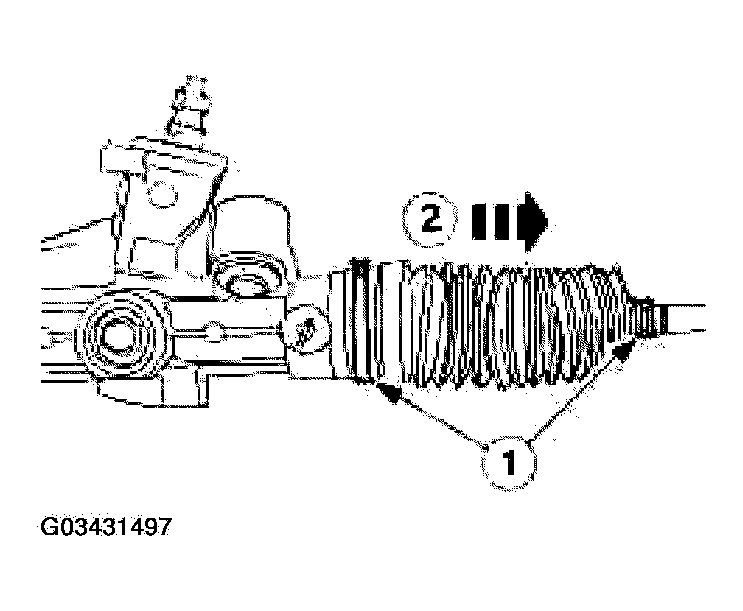

  Fig 2: Removing Clamps & Boot
  Courtesy of FORD MOTOR CO.
2. Remove the boot.
  - Disconnect the breather pipe (if equipped).
Rotate the pinion to expose the rack gear teeth.

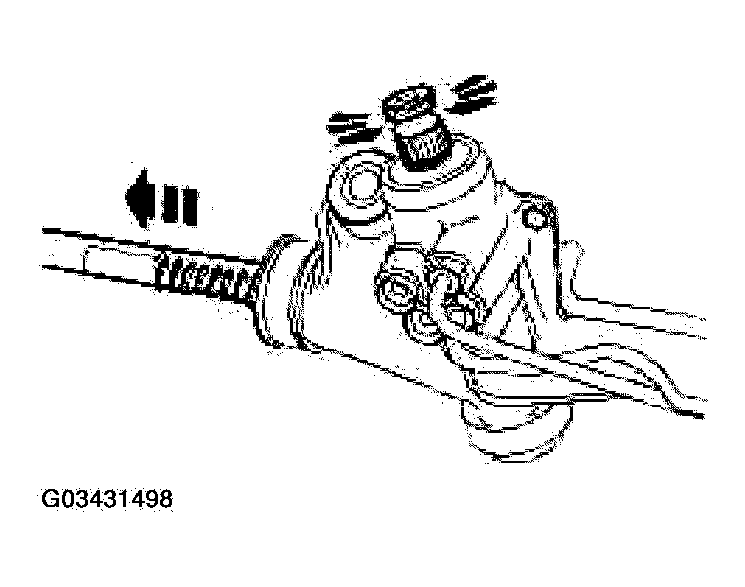

Fig 3: Rotating Pinion To Expose Rack Gear Teeth
Courtesy of FORD MOTOR CO.

CAUTION: To counter the extensive torque forces required to remove the tie-rod, clamp the rack gear teeth in a suitable vise. Do not clamp the steering gear body.

CAUTION: Make sure vise jaw protectors are used.

NOTE: It may be necessary to secure the rack gear teeth with the steering gear in the vertical position to facilitate removal of the tie-rod.

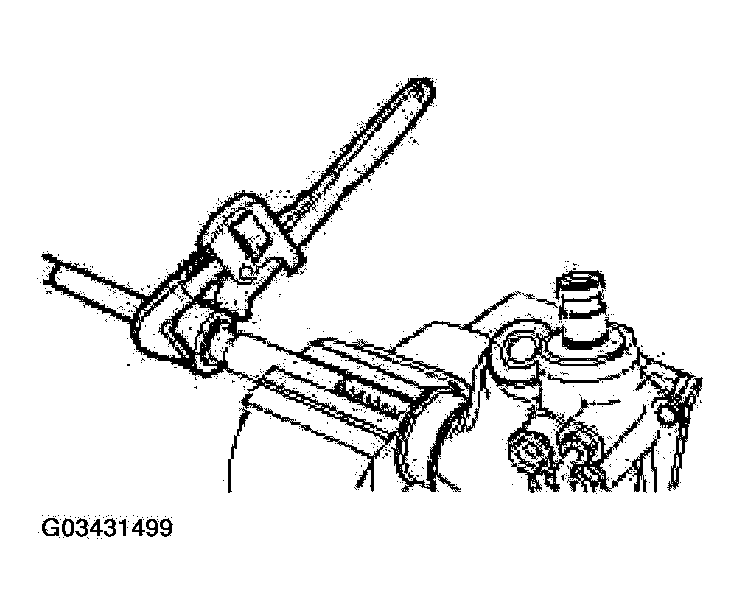

Fig 4: Removing Tie-Rod

Courtesy of FORD MOTOR CO.

Secure the steering gear in a suitable vise. Using a suitable pipe wrench, remove the tie-rod.
