Yaw Rate Sensor: Removal

Remove the scuff plate trim panel.

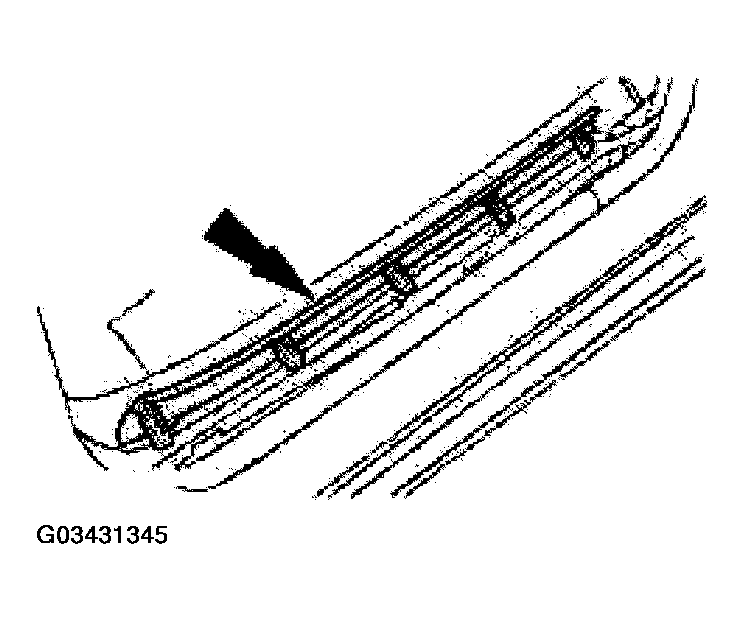

Fig 1: Removing Scuff Plate Trim Panel
Courtesy of FORD MOTOR CO.
Locally detach the carpet.

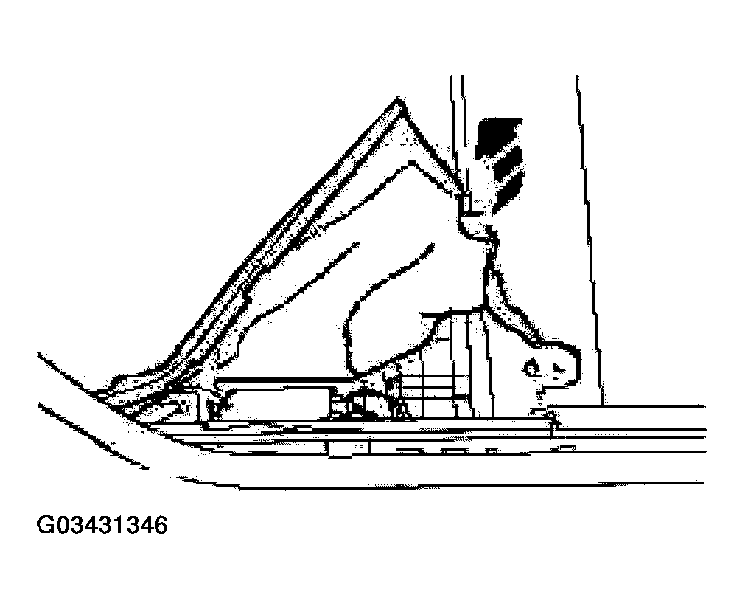

Fig 2: Detaching Carpet
Courtesy of FORD MOTOR CO.
Detach the sensor bracket.

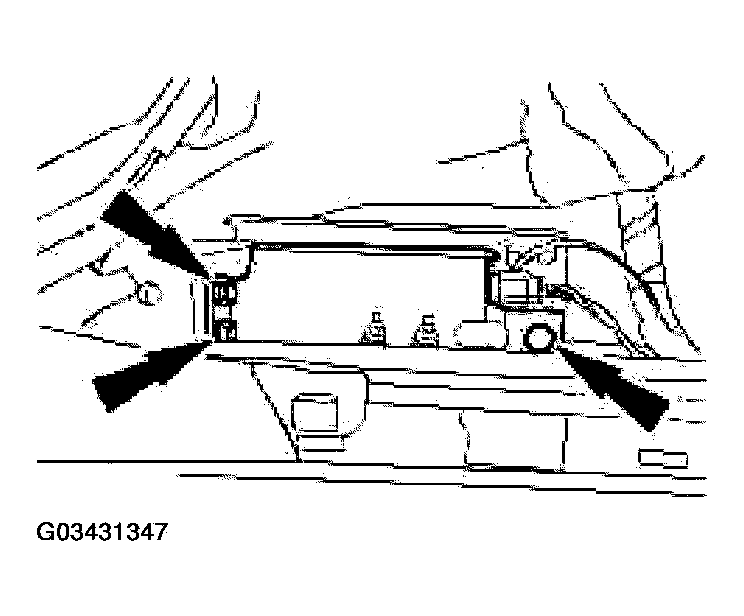

Fig 3: Detaching Sensor Bracket
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors.
1. Disconnect the yaw rate sensor electrical connector.
2. Disconnect the lateral acceleration sensor electrical connector.

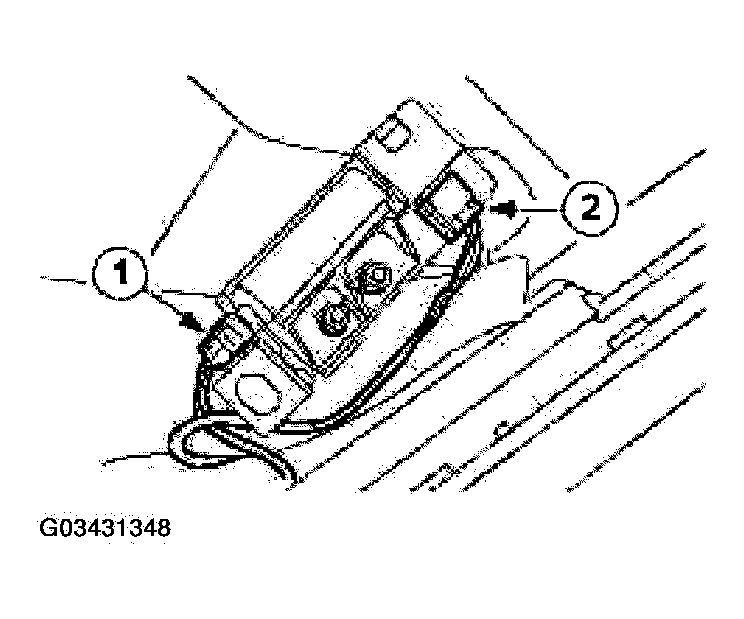

  Fig 4: Disconnecting Lateral Acceleration Sensor Electrical Connector
  Courtesy of FORD MOTOR CO.
Remove the yaw rate sensor.

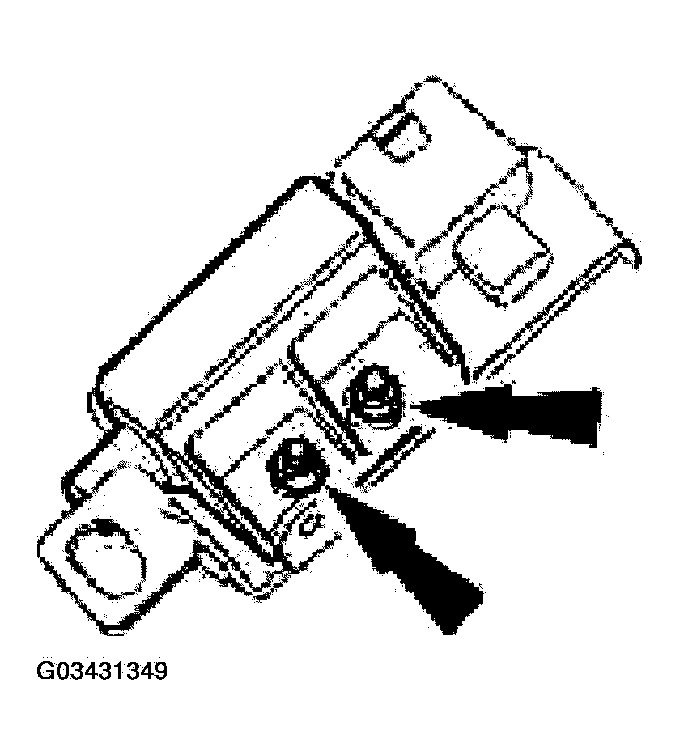

Fig 5: Removing Yaw Rate Sensor
Courtesy of FORD MOTOR CO.
