Brake Shift Interlock Actuator: Installation

  1. Install the shift interlock actuator.
    1. Install the push rod.
    2. Position the knob.
    3. Install the bolt.

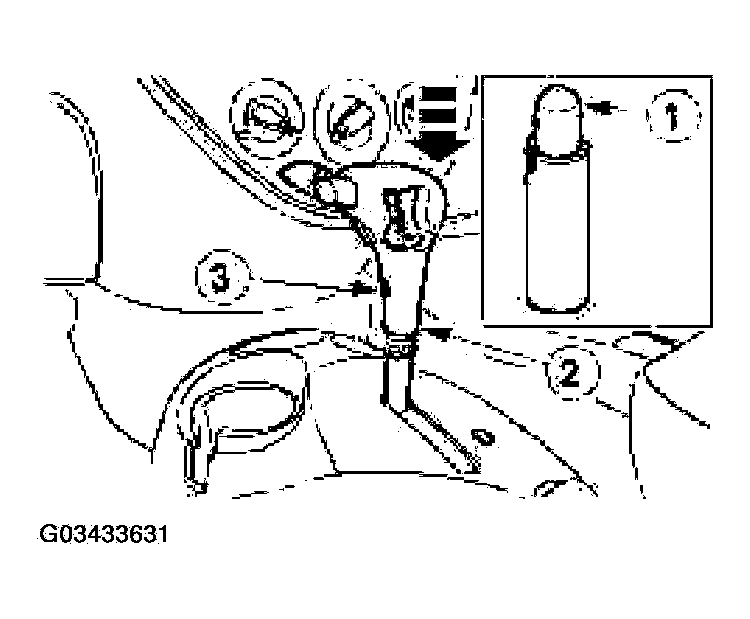

      4. Fig 1: Installing Shift Interlock Actuator
      G03433631Courtesy of FORD MOTOR CO.
  2. Connect the O/D switch electrical connector (selector lever assembly removed shown in Fig 2 ).

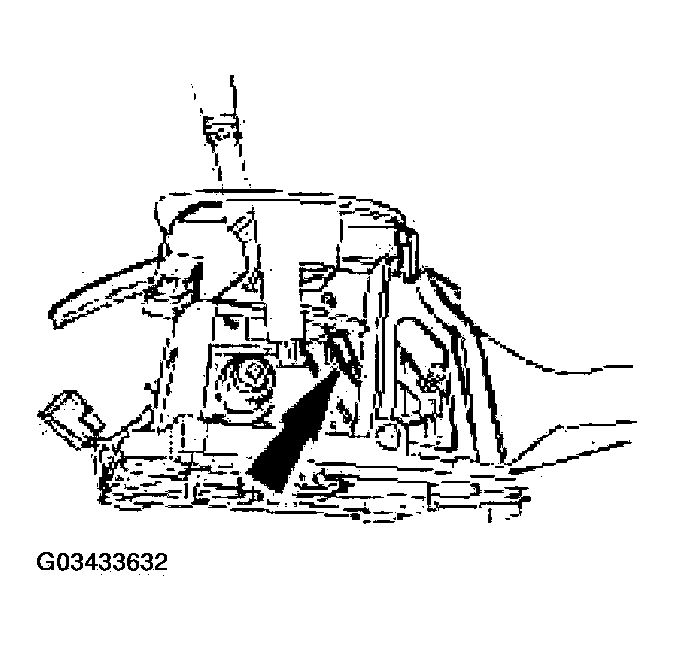

    Fig 2: Connecting O/D Switch Electrical Connector
    G03433632Courtesy of FORD MOTOR CO.
  3. Install the floor console. .
