Direct Clutch: Assembly

Soak the internal spline clutch plates in clean automatic transmission fluid for 15 minutes before assembly.
Inspect the direct clutch piston bore surfaces for nicks or scratches. Install a new direct clutch piston if necessary.
Lubricate and install the direct clutch piston.

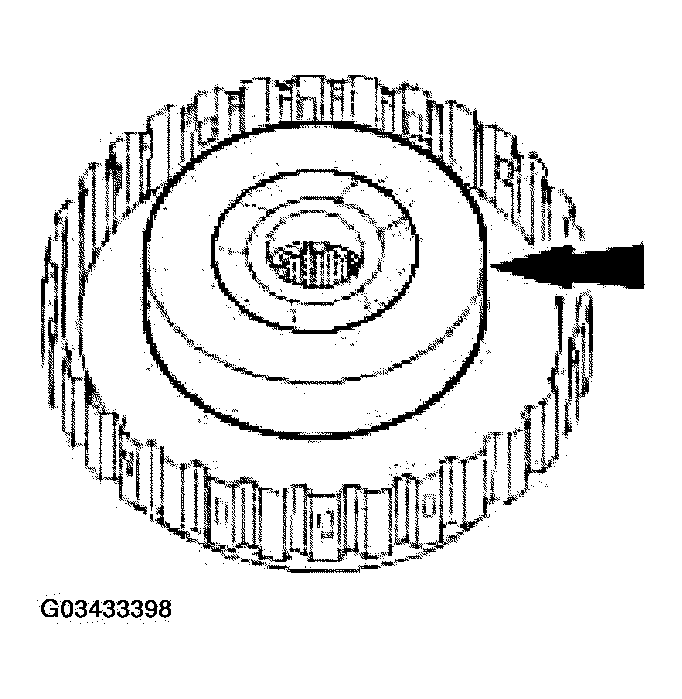

Fig 1: Installing Direct Clutch Piston
Courtesy of FORD MOTOR CO.
Install the direct clutch return spring.

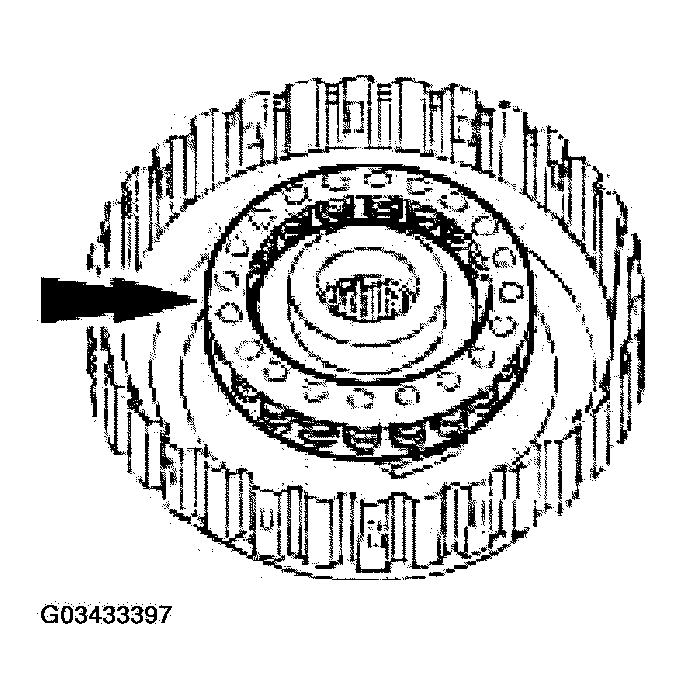

Fig 2: Installing Direct Clutch Return Spring
Courtesy of FORD MOTOR CO.
Install the direct clutch balance piston.

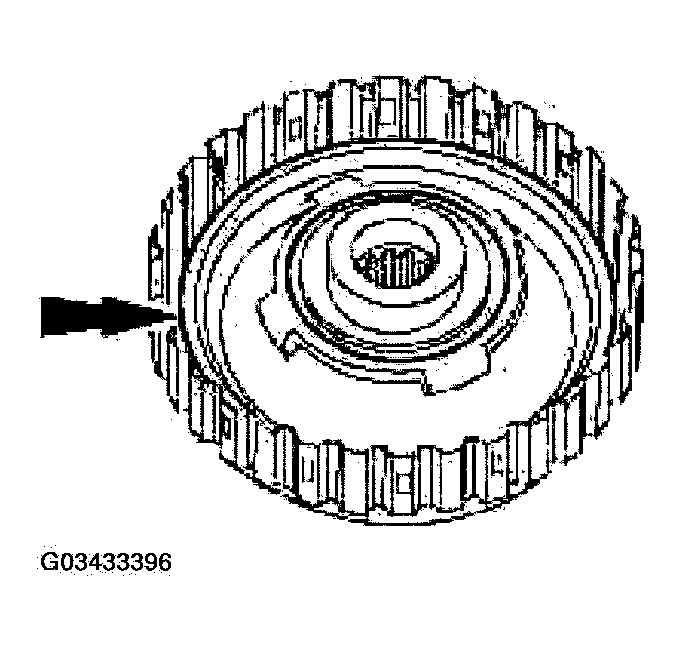

Fig 3: Installing Direct Clutch Balance Piston
Courtesy of FORD MOTOR CO.
Using the special tool, install the selective snap ring.

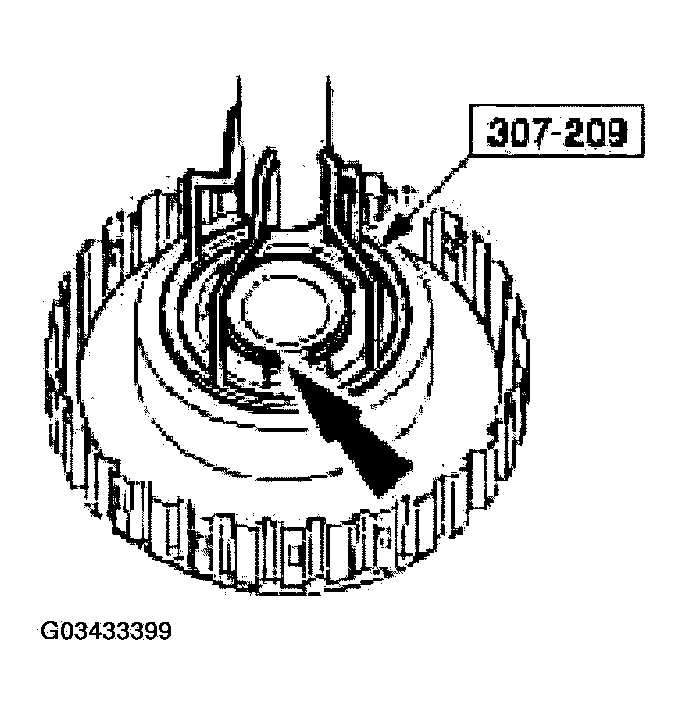

Fig 4: Installing Selective Snap Ring
Courtesy of FORD MOTOR CO.
Install the direct clutch pressure, friction and steel plates.
1. Install the plates.
2. Install the retaining ring.
  - Check the clearance. For additional information, refer to SPECIFICATIONS .

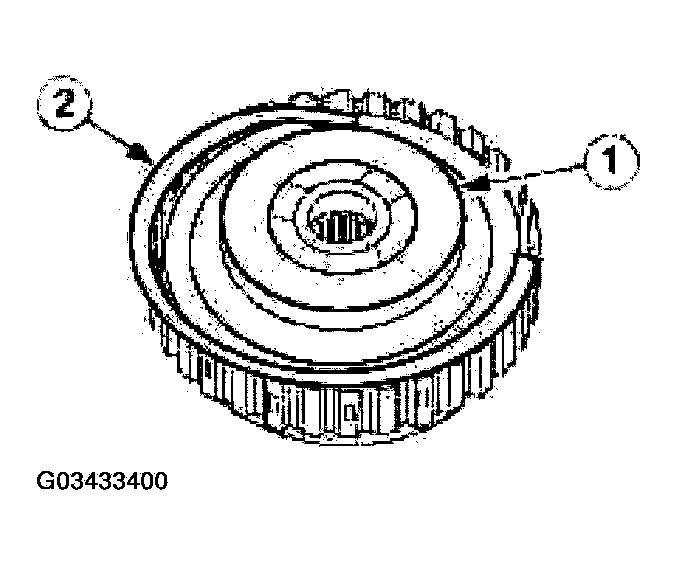

    Fig 5: Installing Direct Clutch Pressure, Friction And Steel Plates
    Courtesy of FORD MOTOR CO.
