Pinpoint Test B: Unable To Enter Self-Test

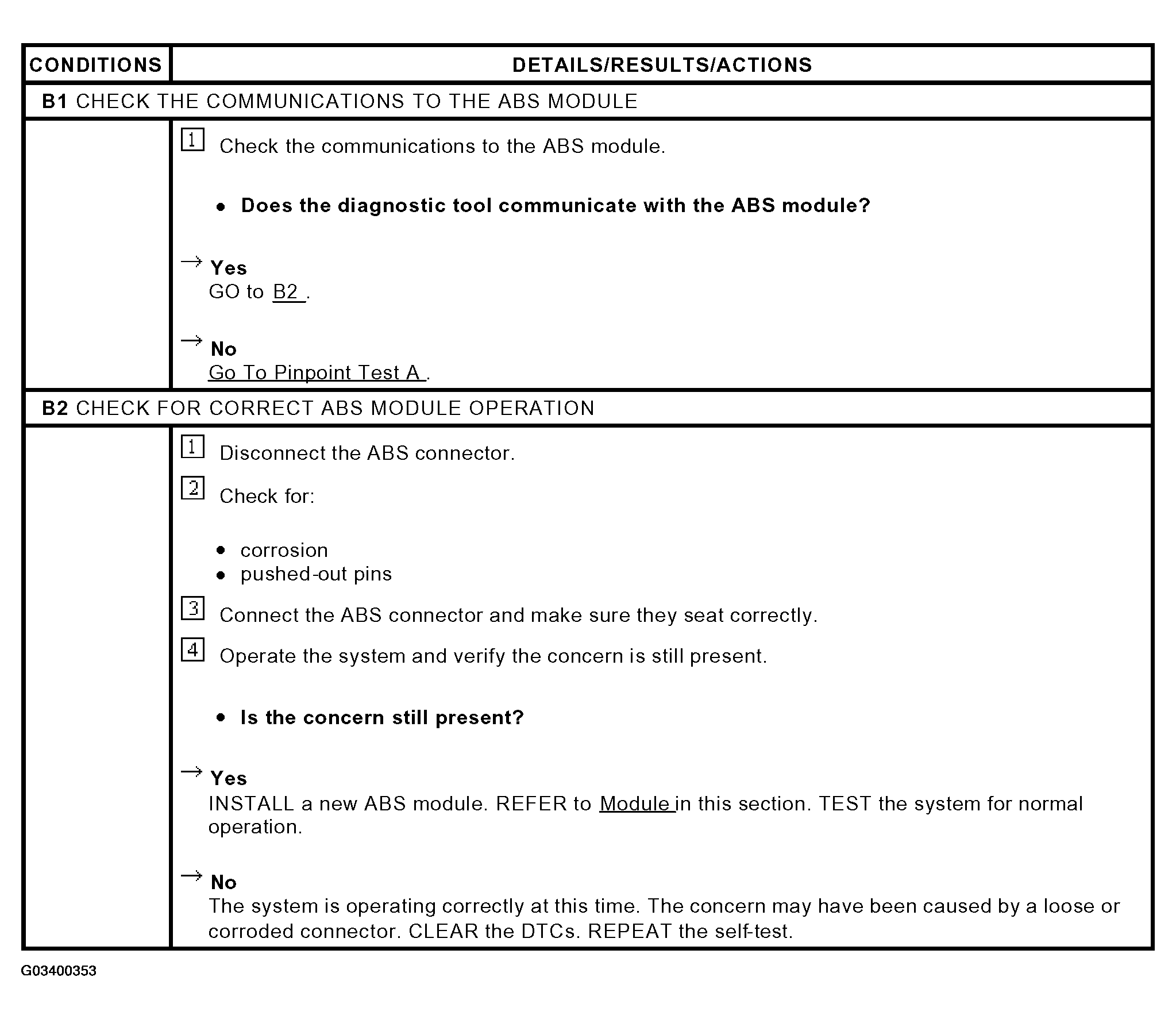

Fig 1: Identifying Pinpoint Test Chart B: Unable To Enter Self-Test (B1 & B2)
G03400353Courtesy of FORD MOTOR CO.
