Removal and Installation

CAUTION: Do not allow the steering column shaft to rotate while intermediate shaft is disconnected or damage to the clockspring can result. If there is evidence that the steering column shaft has rotated the clockspring must be removed and re-centered. For additional information, refer to appropriate information in AIR BAG RESTRAINT SYSTEMS article.

NOTE: Discard the steering column shaft pinch bolt and the lower intermediate shaft-to-steering gear pinch bolt upon removal. Do not reuse, install new bolts.

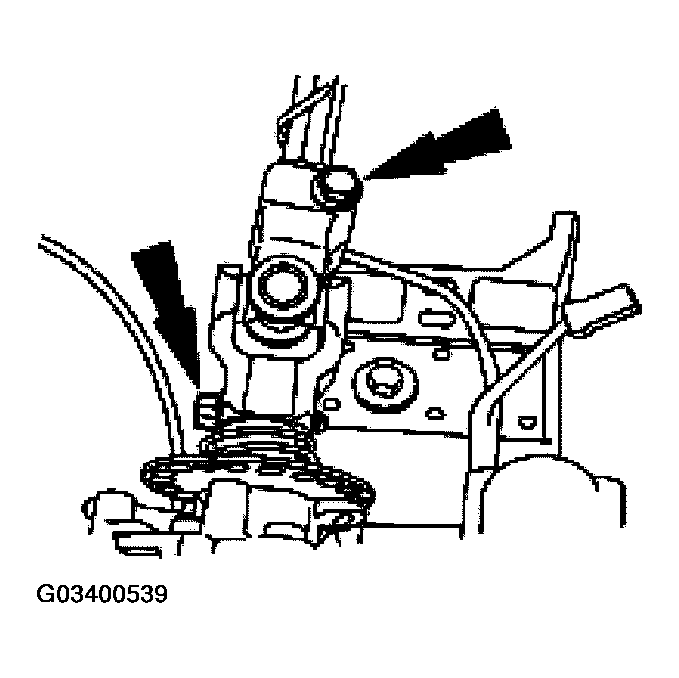

Fig 1: Disconnecting Coupling From Column

Courtesy of FORD MOTOR CO.

Remove the pinch bolts and disconnect the coupling from the column.
Remove the coupling.

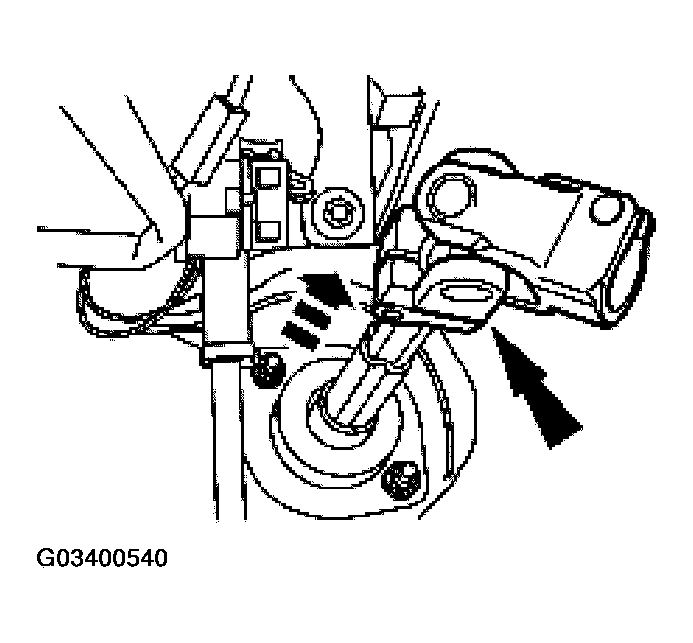

Fig 2: Removing Coupling
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
