Transmission Main Components - Sectional View

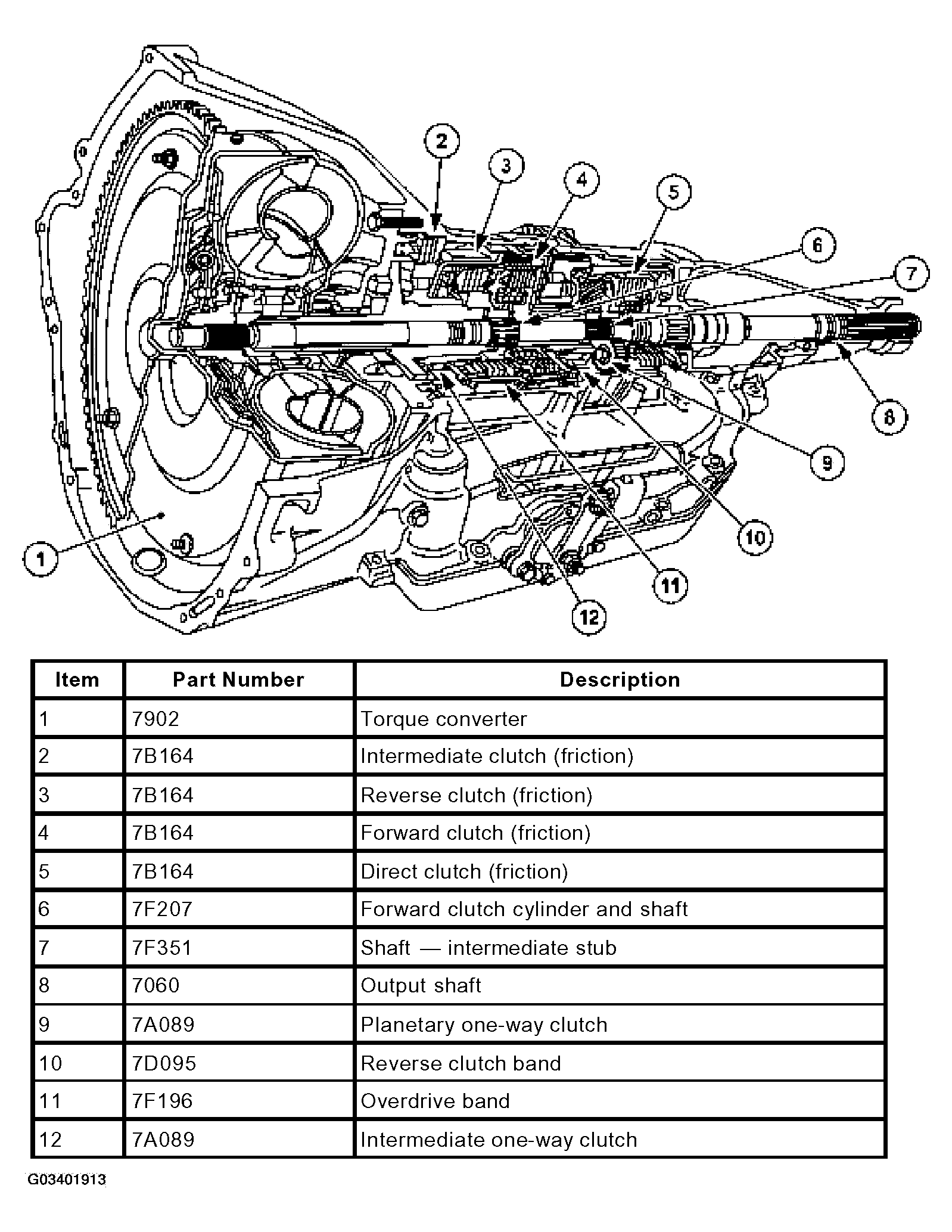

Fig 1: Identifying Transmission Main Components
Courtesy of FORD MOTOR CO.
