Removal & Installation

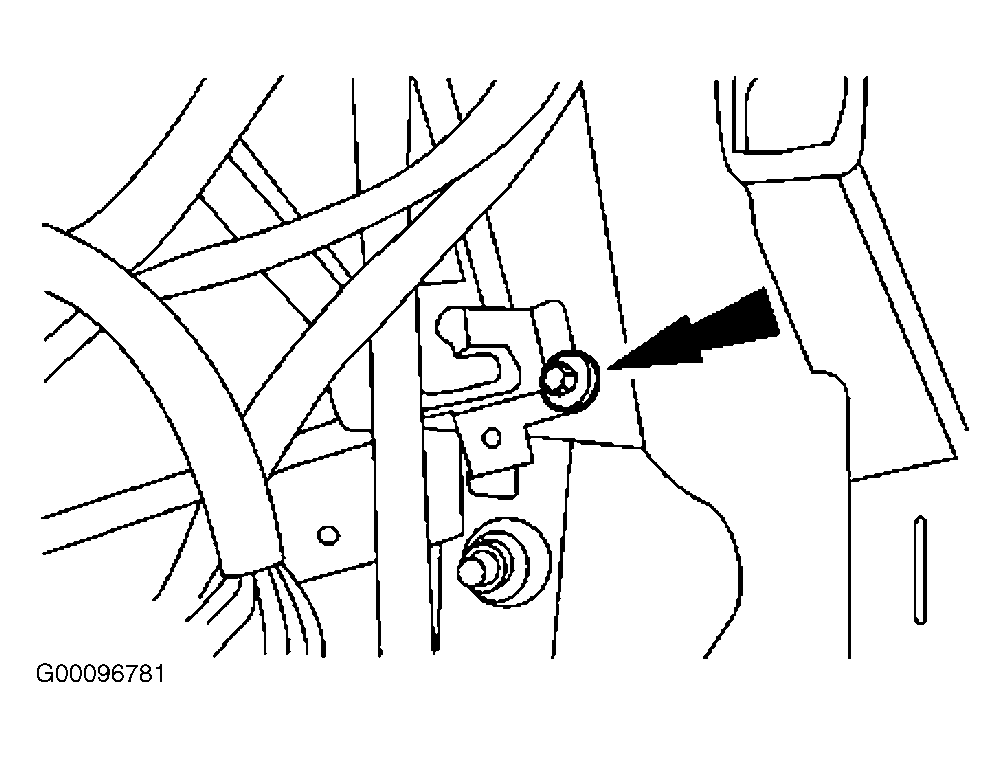

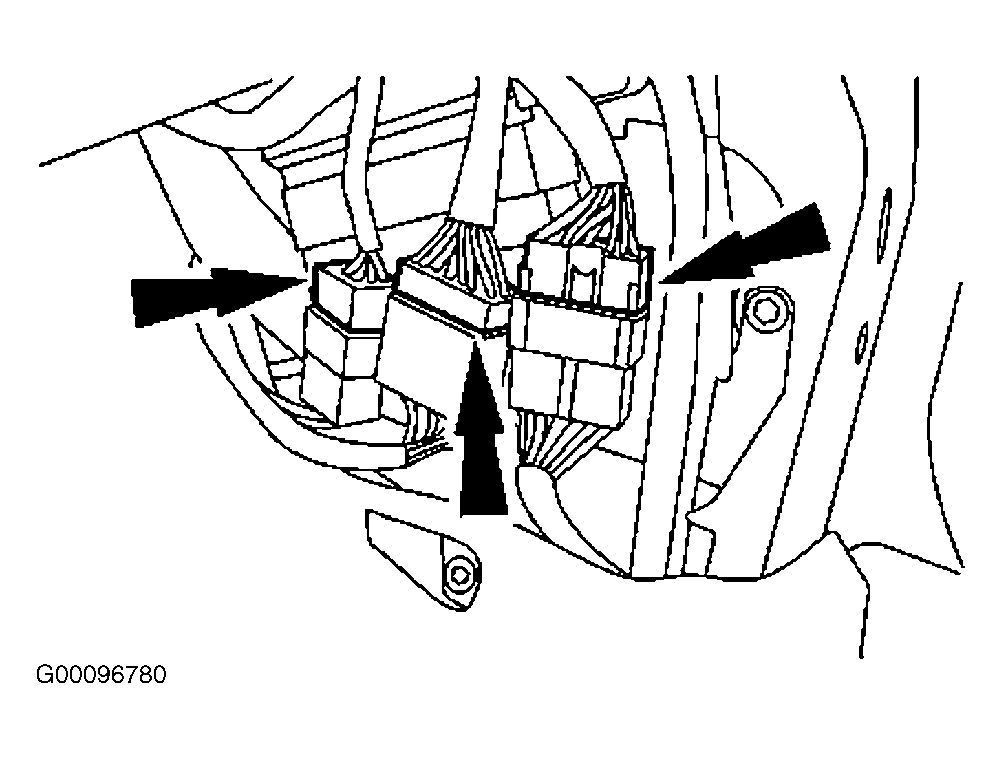

Disconnect negative battery cable. Remove right door scuff plate. Remove pin-type retainer and remove right kick panel. Disconnect in-line connectors and position aside. Remove bolts and PCM bracket. See Fig 1. Loosen PCM harness connector bolt and disconnect PCM harness connector. Remove bolt retaining PCM and remove PCM. See Fig 2. To install, reverse removal procedure.
