Hydraulic Control Unit: Installation

NOTE: The brake system must be bled after the HCU is installed or replaced. Refer to BLEEDING BRAKE SYSTEM .

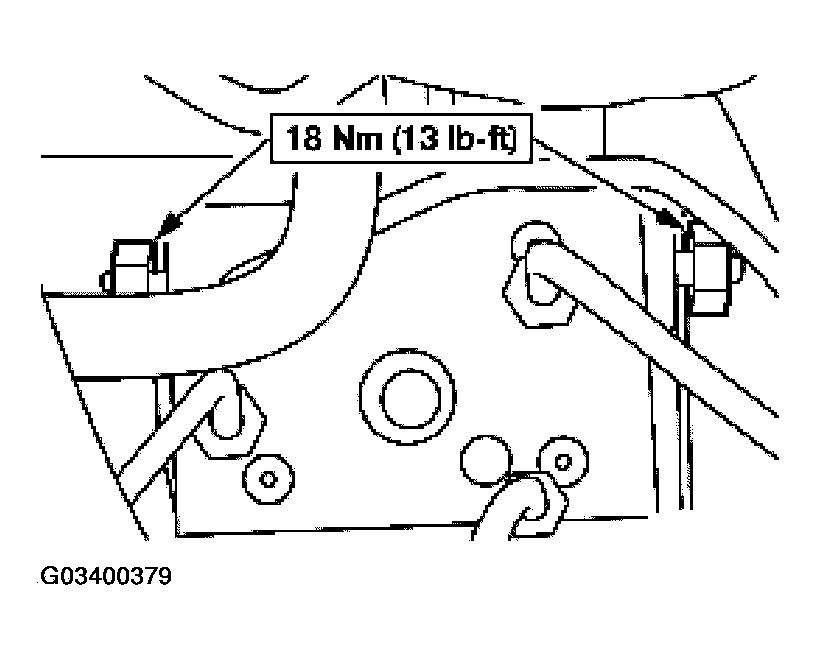

Fig 1: Removing HCU Bracket Nuts To HCU

Courtesy of FORD MOTOR CO.

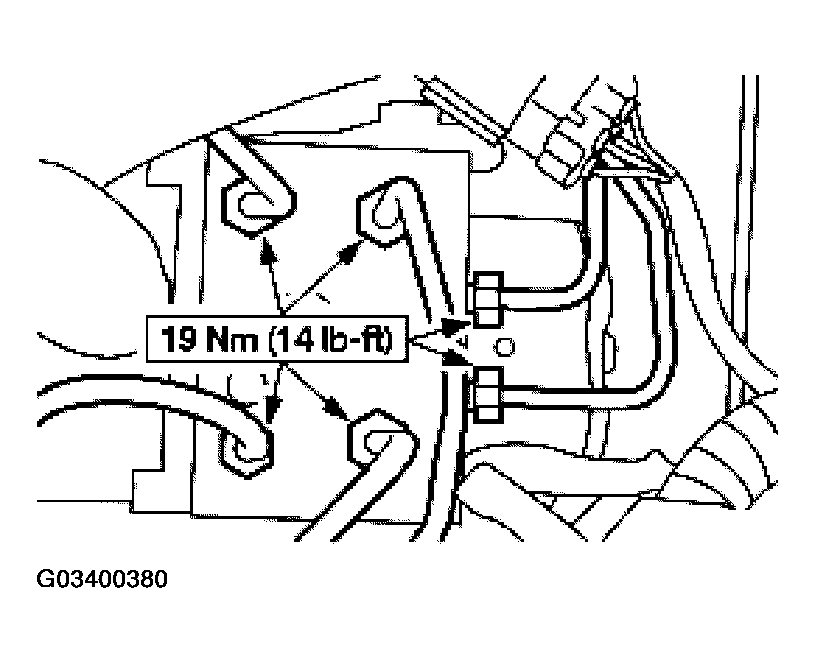

Fig 2: Connecting Brake Lines From Hydraulic Control Unit (HCU)

Courtesy of FORD MOTOR CO.
