Sensor - Front: Removal

  1. Remove the wheel and tire assembly.
  2. Remove the inner fender splash shield.
    1. Remove the inner fender splash shield push pins.
    2. Remove the inner fender splash shield screw.
    3. Remove the inner fender splash shield.

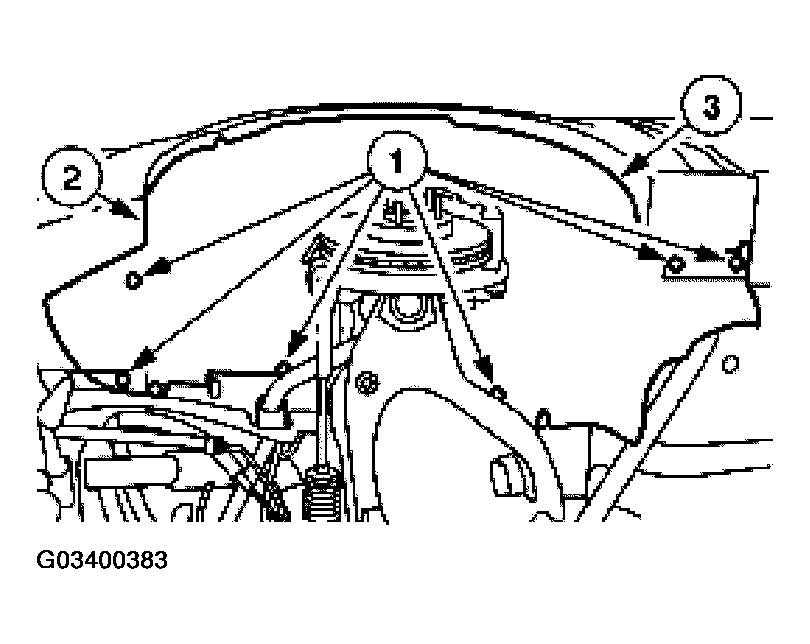

      Fig 1: Removing Inner Fender Splash Shield
      G03400383Courtesy of FORD MOTOR CO.
  3. Remove the front anti-lock brake sensor electrical connector.

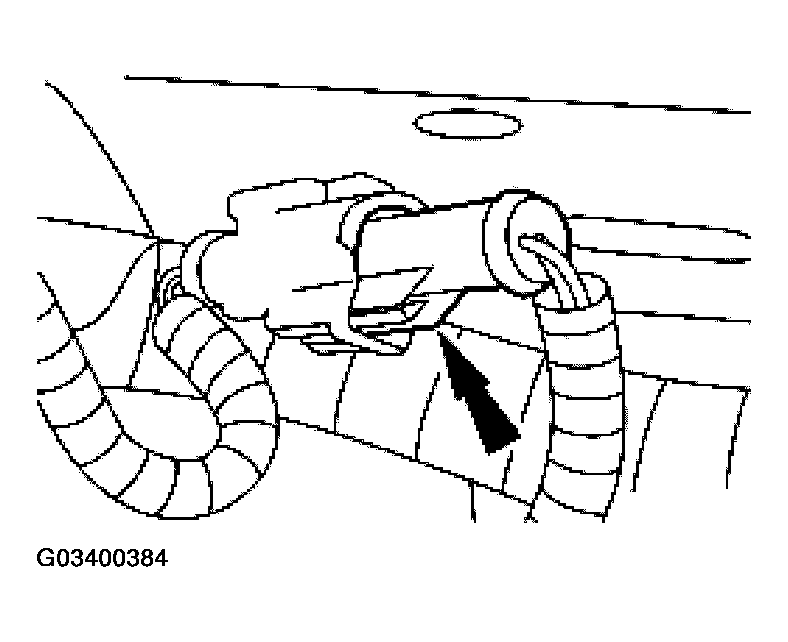

    Fig 2: Removing Front Anti-Lock Brake Sensor Electrical Connector
    G03400384Courtesy of FORD MOTOR CO.
  4. Remove the front anti-lock brake sensor harness from the anti-lock brake sensor harness clips.

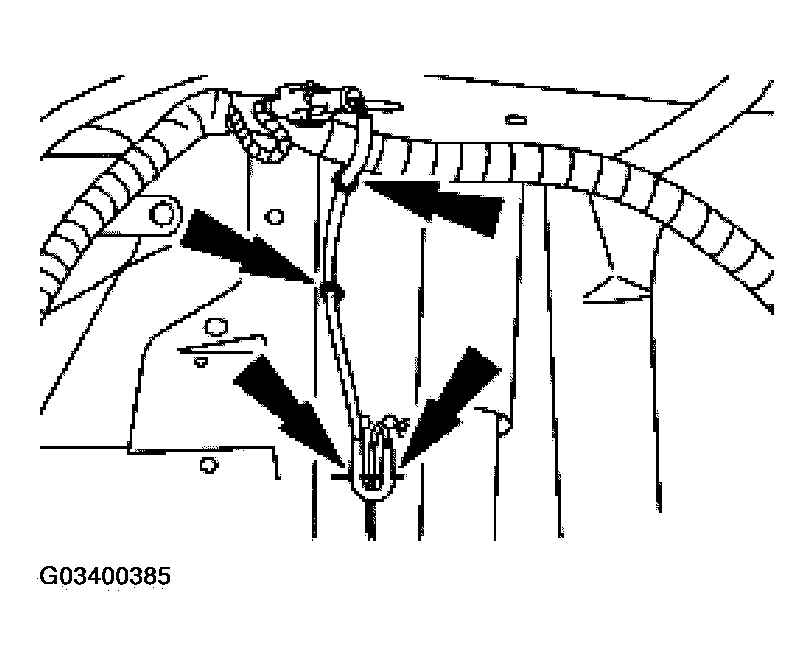

    Fig 3: Removing Front Anti-Lock Brake Sensor Harness From Anti-Lock Brake Sensor Harness Clips
    G03400385Courtesy of FORD MOTOR CO.
  5. Remove the front anti-lock brake sensor.
    1. Remove the front anti-lock brake sensor bolt.
    2. Remove the anti-lock brake sensor harness from the harness clips.
    3. Remove the front anti-lock brake sensor.

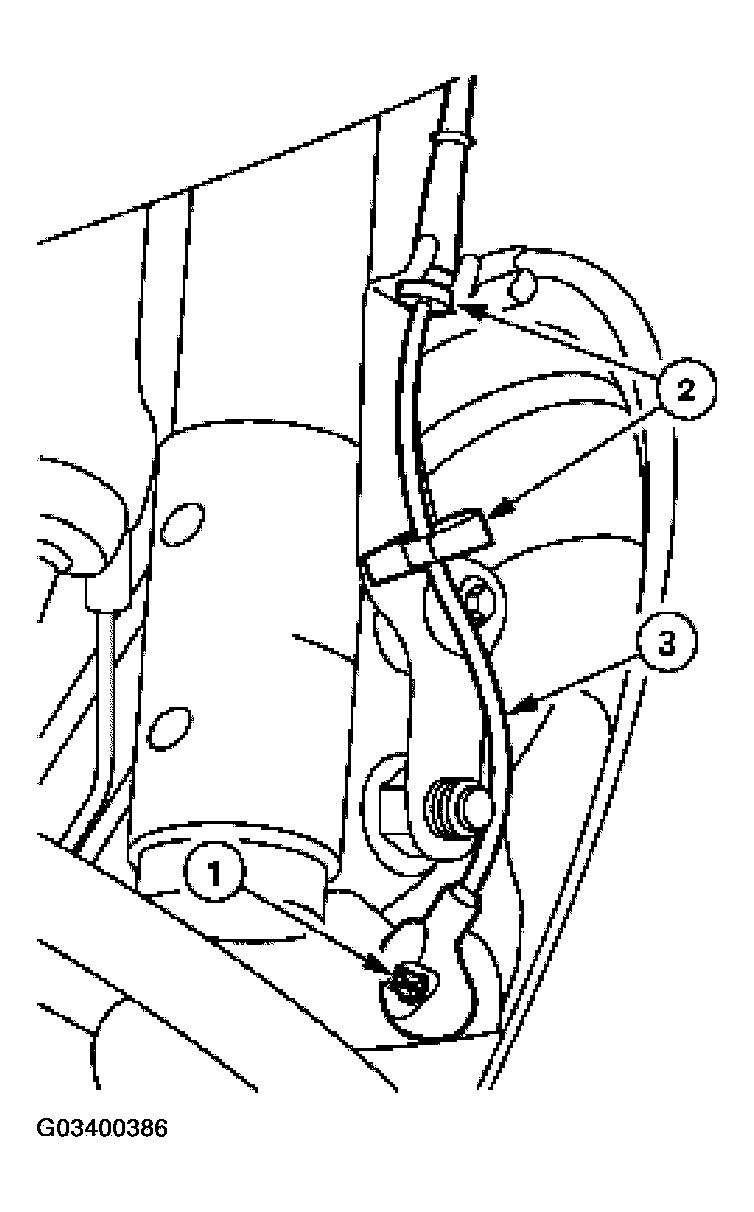

      Fig 4: Removing Front Anti-Lock Brake Sensor
      G03400386Courtesy of FORD MOTOR CO.
