Engine

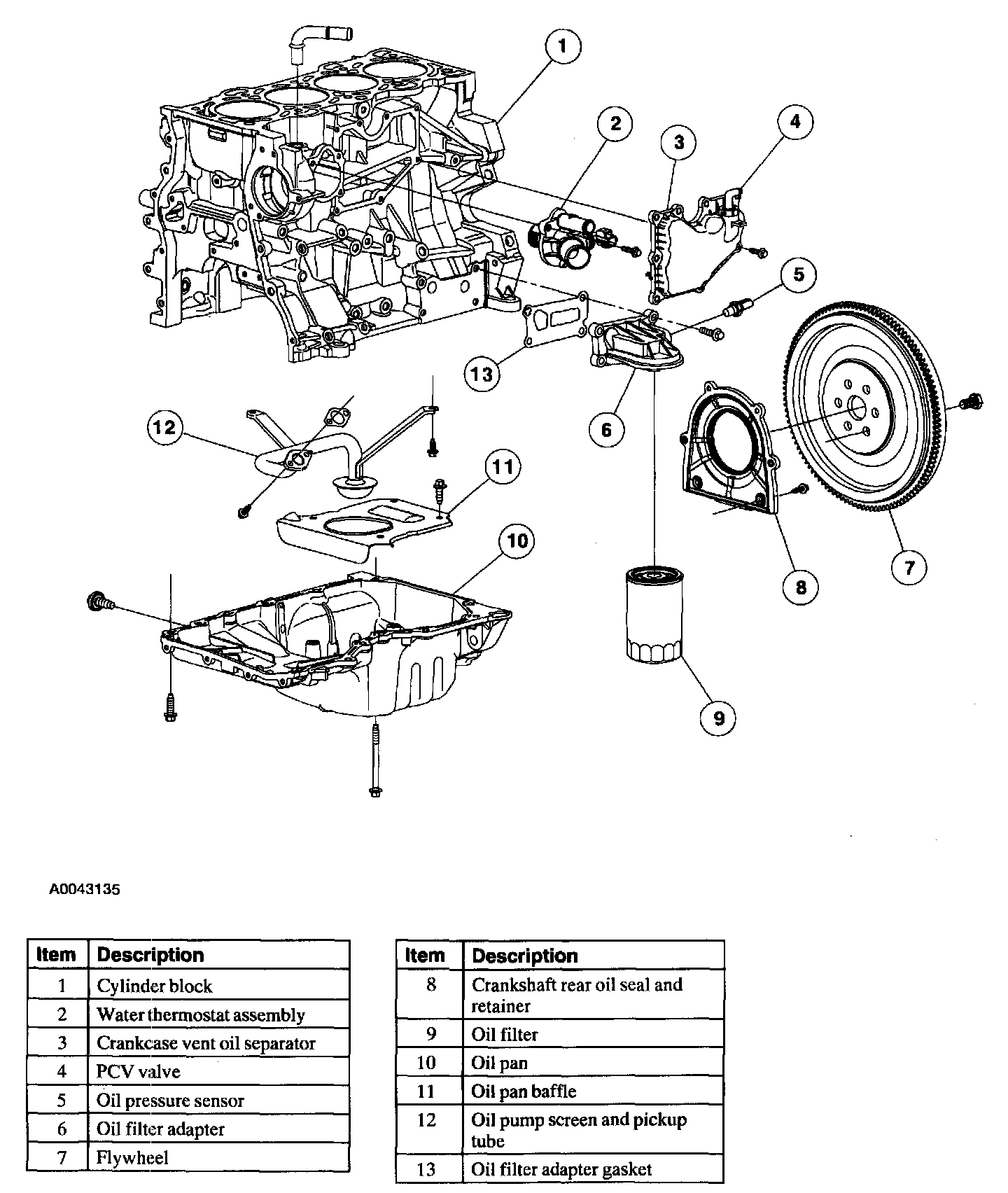

Lower Engine Block

Part 1 Of 2:

Part 2 Of 2:

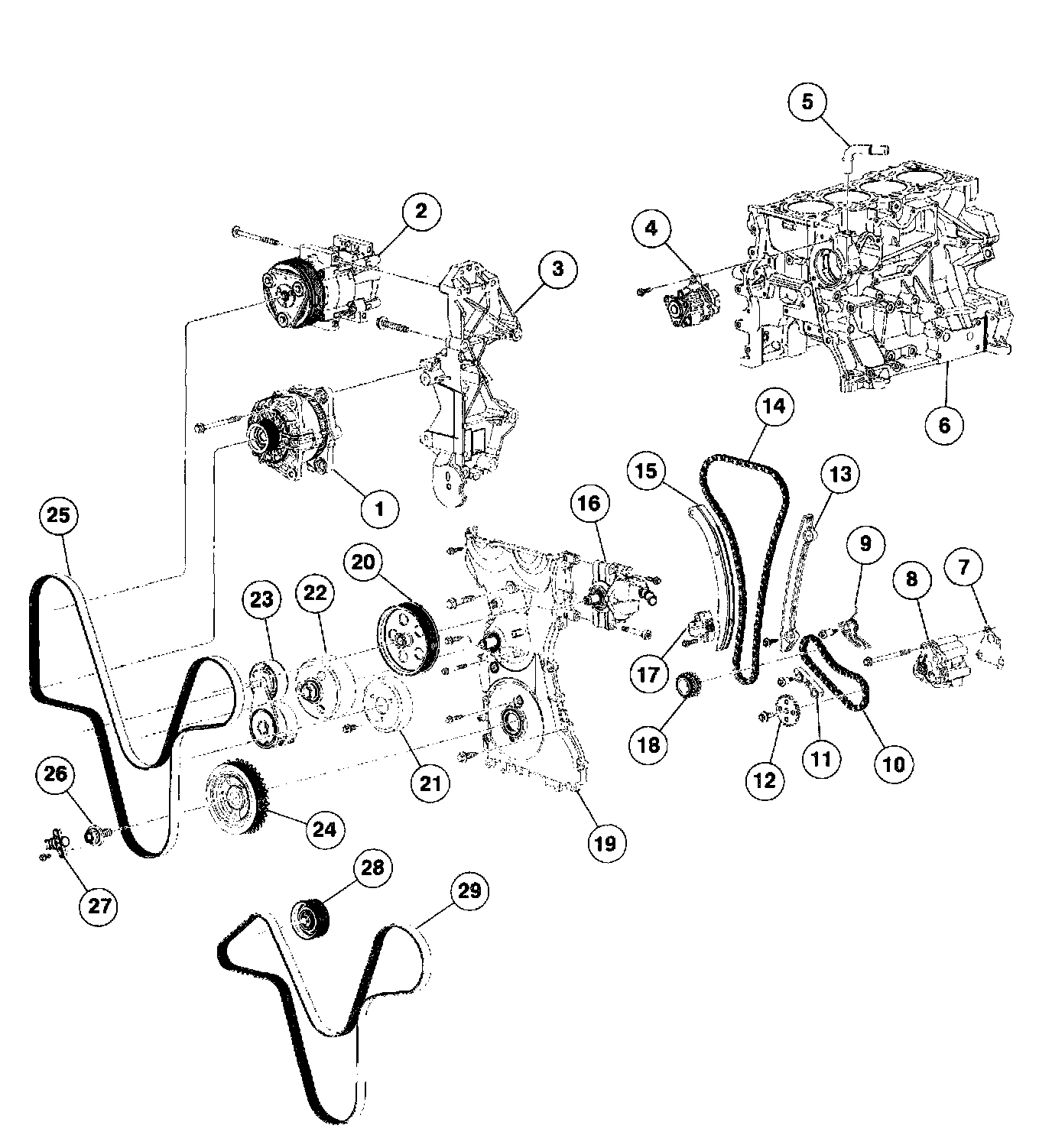

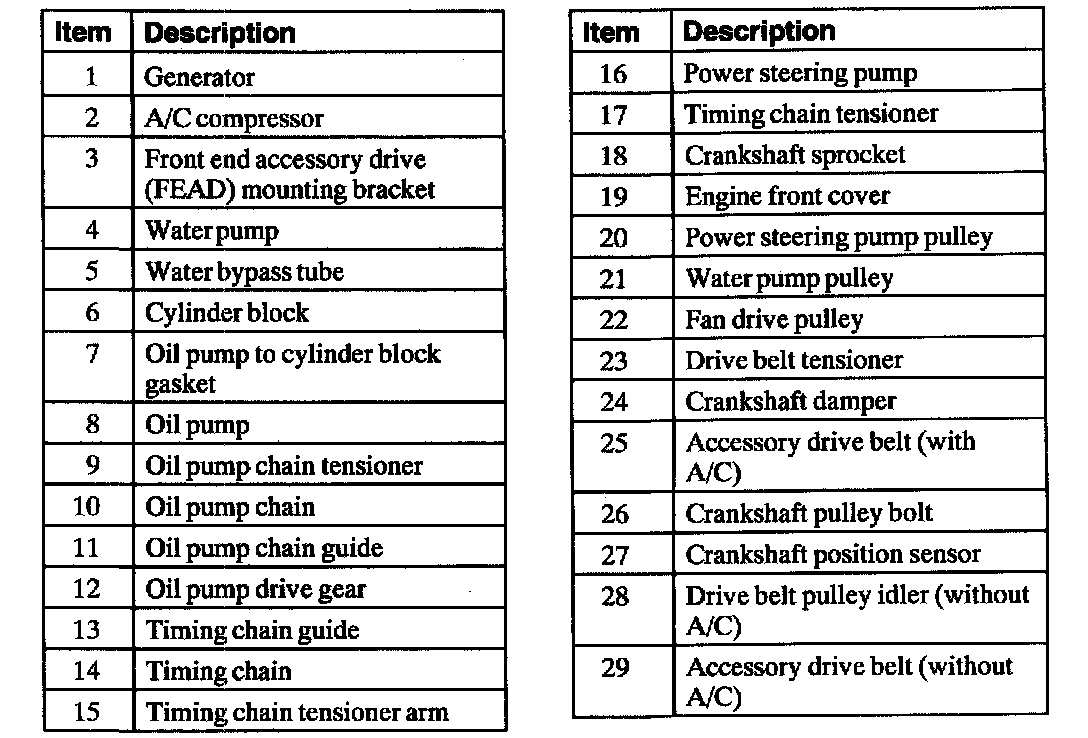

Front Engine Block

Part 1 Of 2:

Part 2 Of 2:

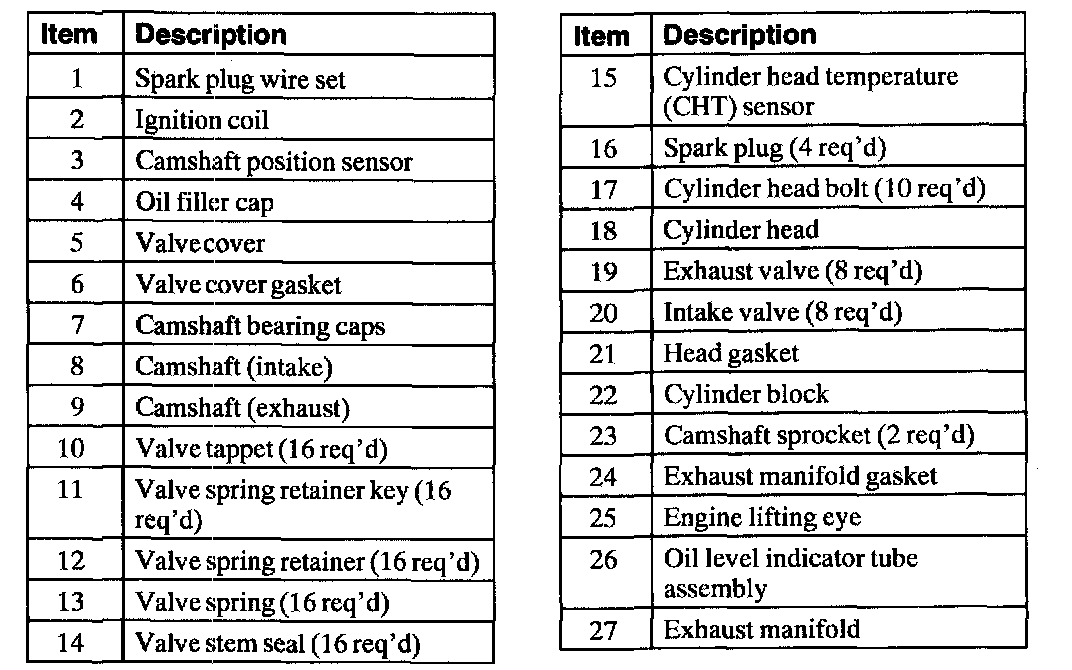

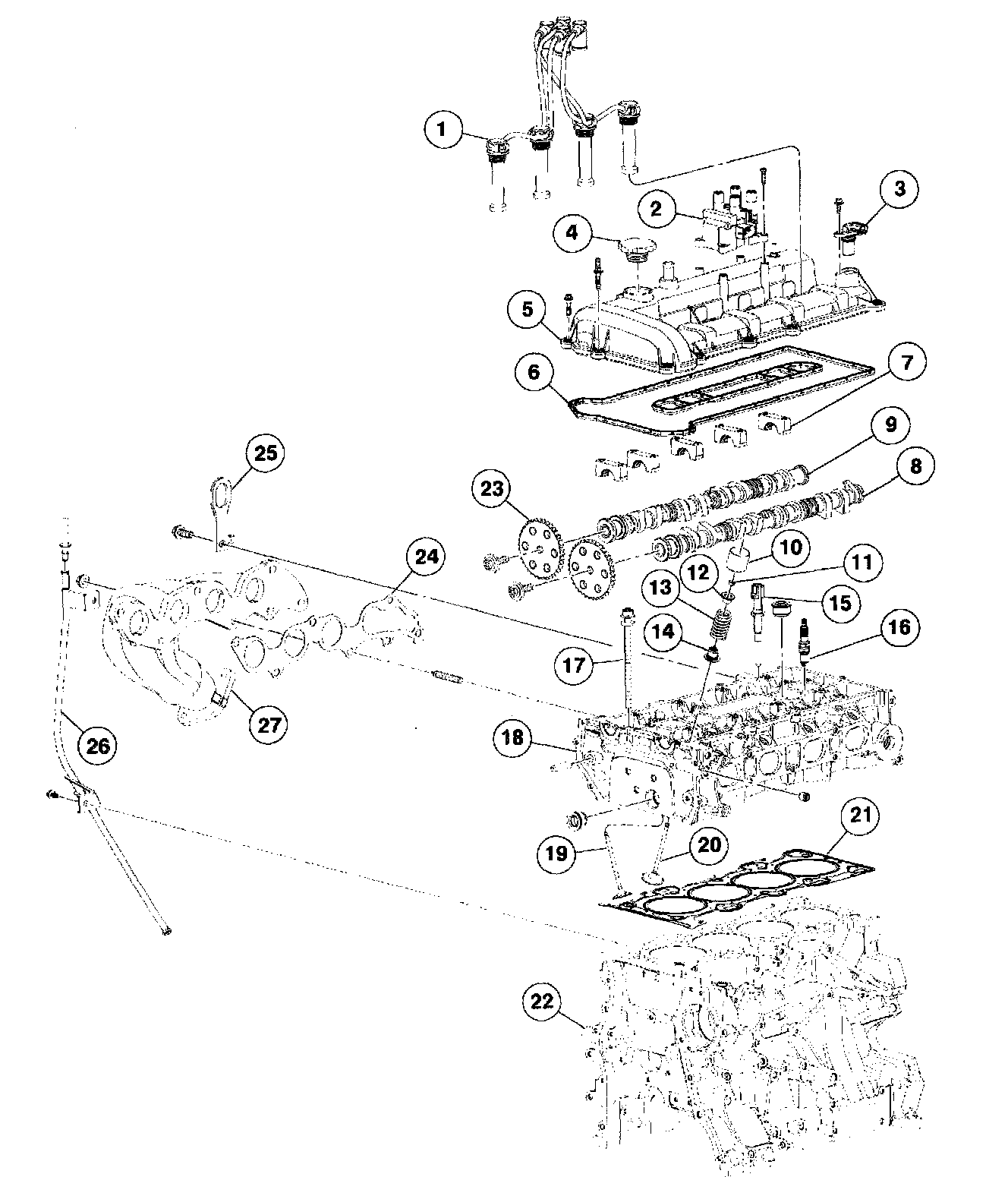

Cylinder Head

Part 1 Of 2:

Part 2 Of 2:

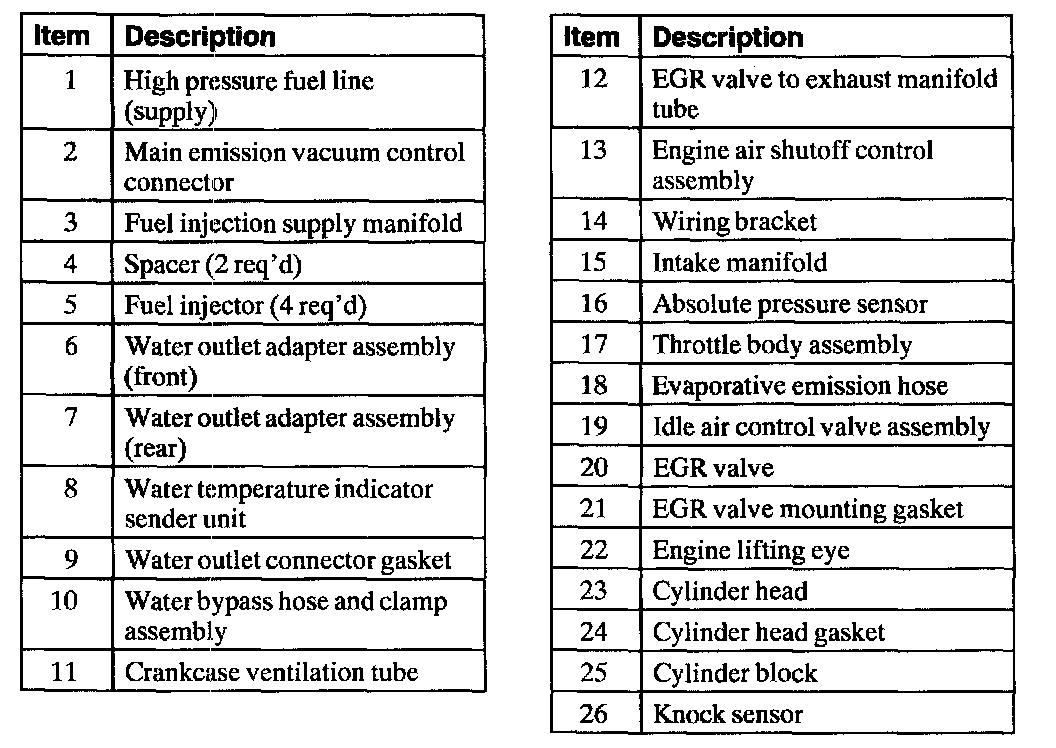

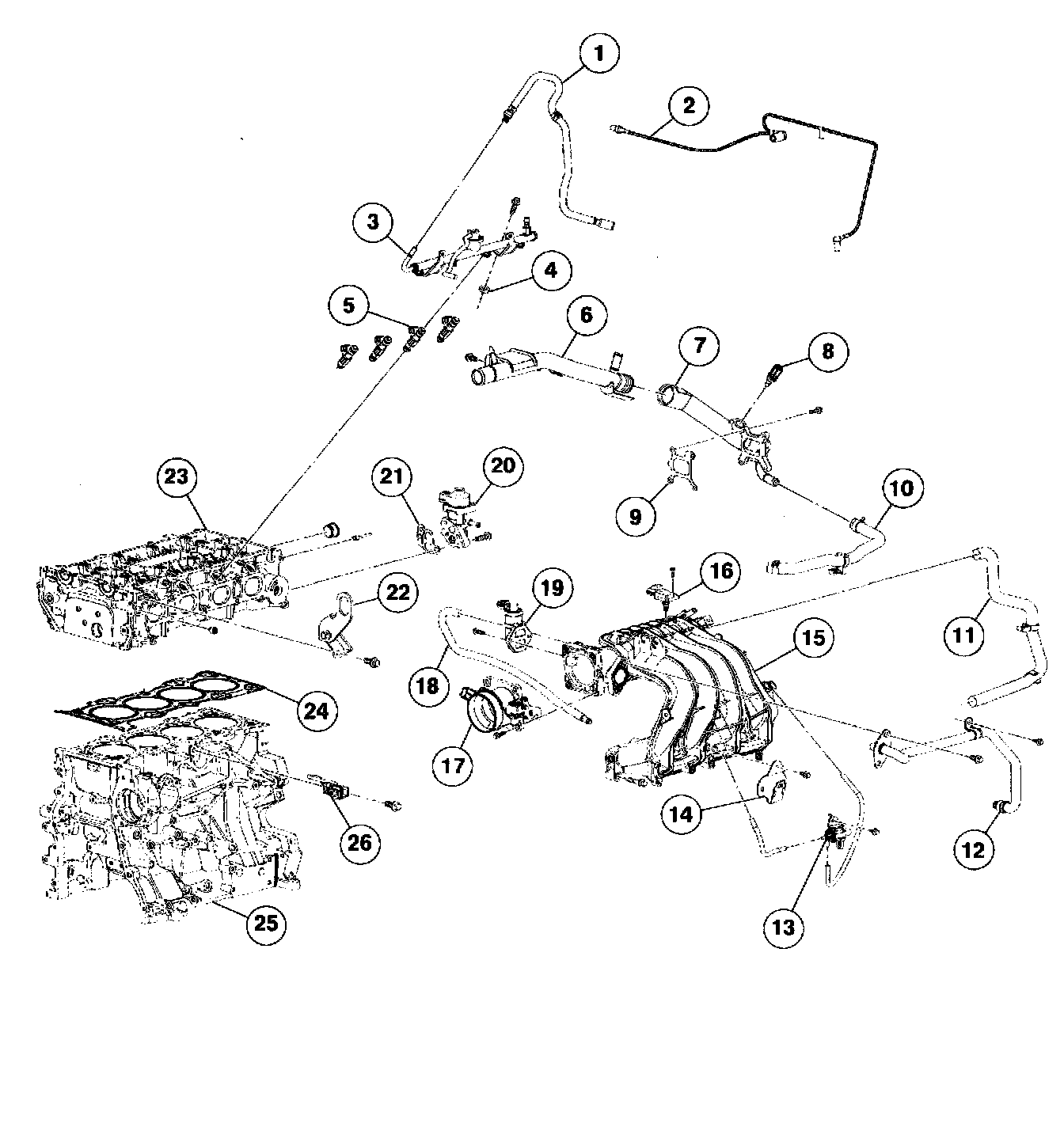

Intake Manifold
