Engine Temperature Sensor: Service and Repair



Cylinder Head Temperature (CHT) Sensor-2.3L

Removal

1. Disconnect the battery ground cable.

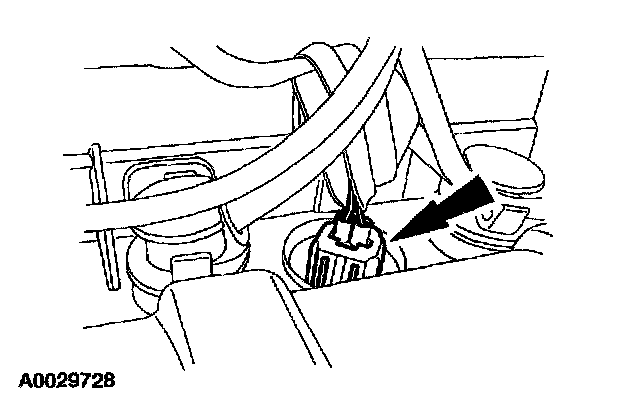

2. Pull back the Cylinder Head Temperature (CHT) sensor cover and disconnect the electrical connector.

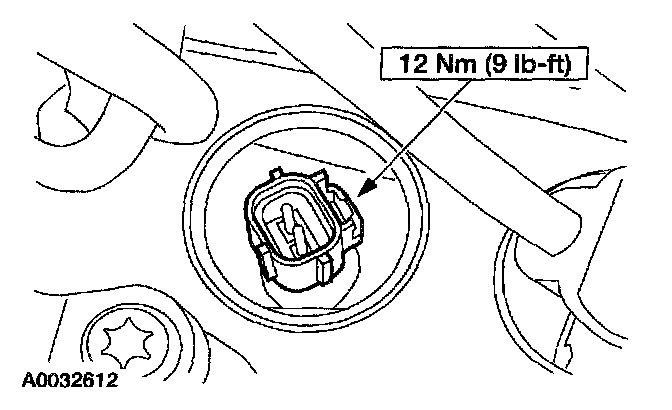

3. Remove the CHT sensor.

Installation

1. To install, reverse the removal procedure.
