Knock Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

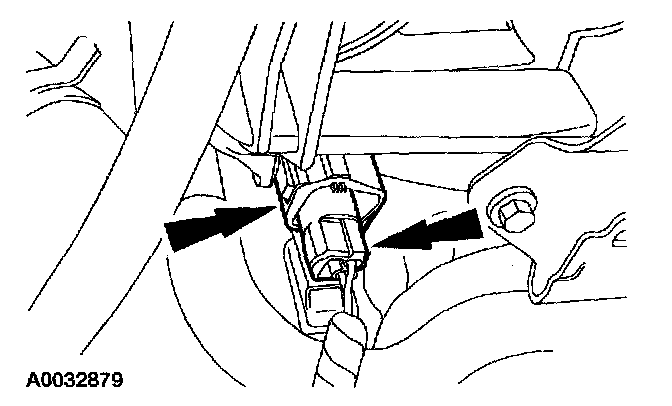

2. Disconnect the Knock Sensor (KS) electrical connector.

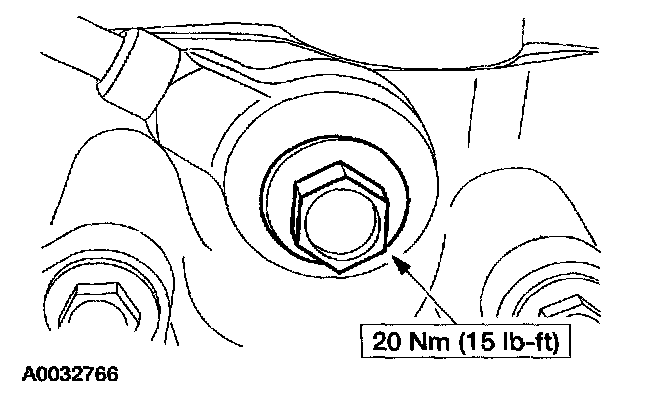

3. Remove the bolt and the KS.

INSTALLATION
1. To install, reverse the removal procedure.
