Throttle Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

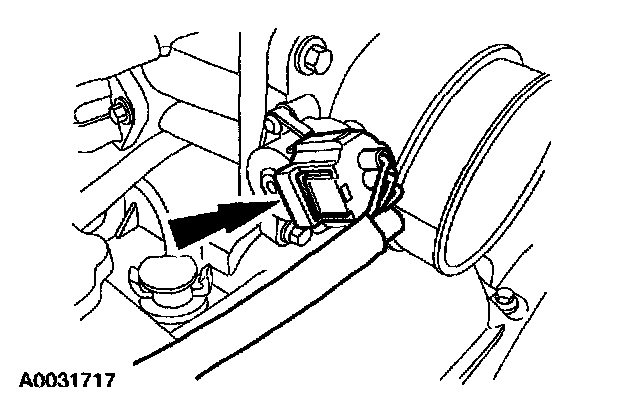

2. Disconnect the Throttle Position (TP) sensor electrical connector.

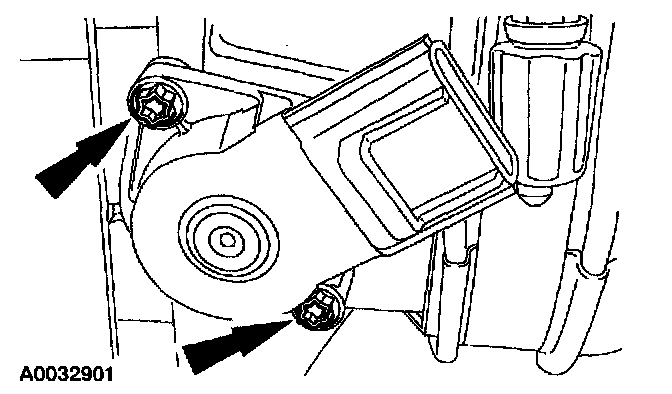

3. Remove the bolts and the TP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
