Control Module: Service and Repair

Four-Wheel Drive (4WD) Control Module

Removal and Installation
1. Remove the passenger cowl side trim panel.

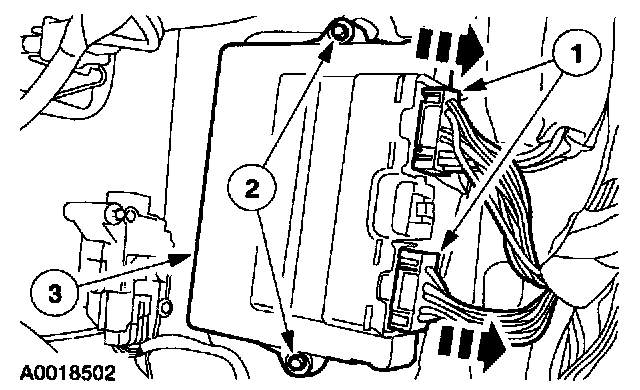

2. Remove the 4WD control module.
1. Disengage the locking tangs and remove the harness connectors.
2. Remove the screws.
3. Remove the 4WD control module.
3. To install, reverse the removal procedure.
