Cylinder Head - Distortion

Special Tool(s)

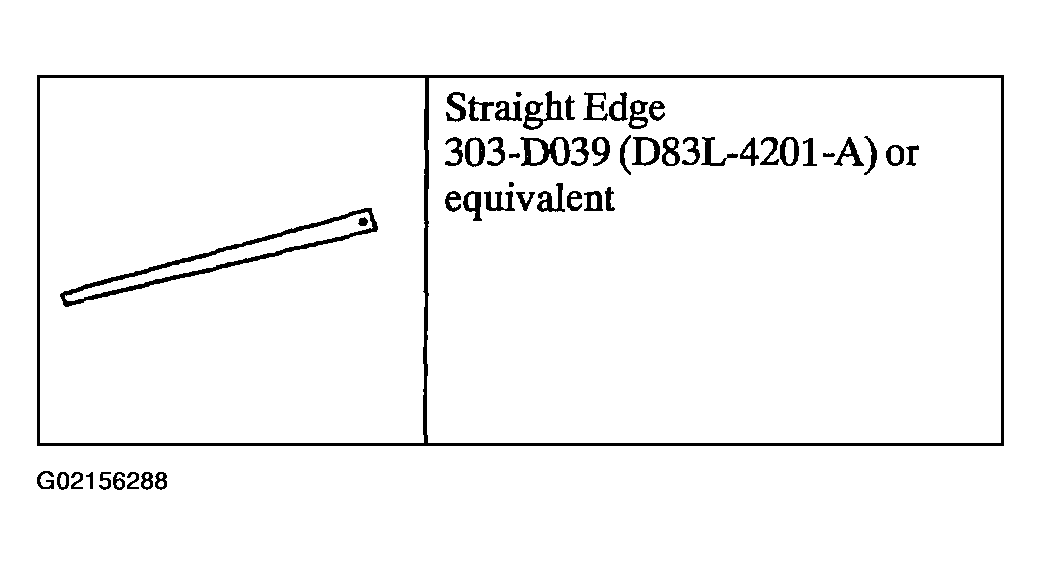

Fig 1: Identifying Special Tools
G02156288Courtesy of FORD MOTOR CO.
  1. Use a straight edge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, install a new cylinder head.

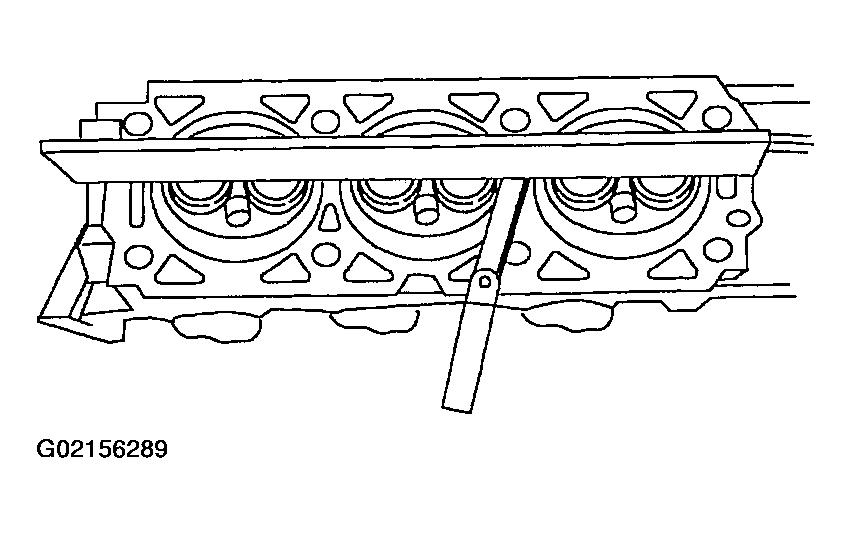

    Fig 2: Inspecting Cylinder Head Flatness
    G02156289Courtesy of FORD MOTOR CO.
