Removal and Installation

Raise and support the vehicle.
Remove the bolt and the front wheel speed sensor.

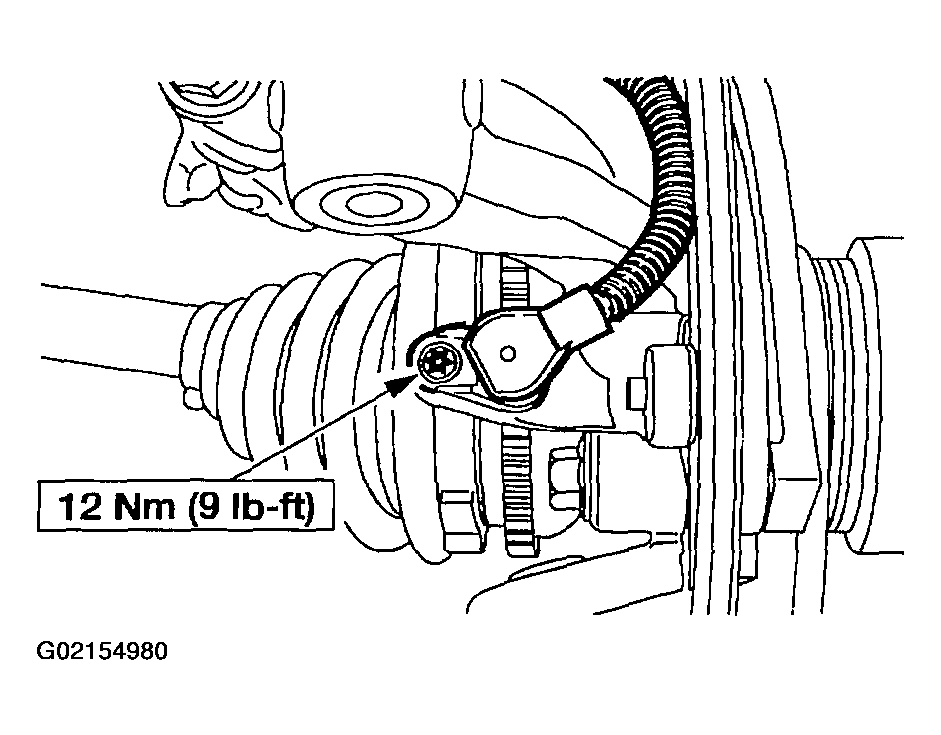

Fig 1: Removing Front Wheel Speed Sensor Bolt
Courtesy of FORD MOTOR CO.
Disengage the wiring from the routing brackets.

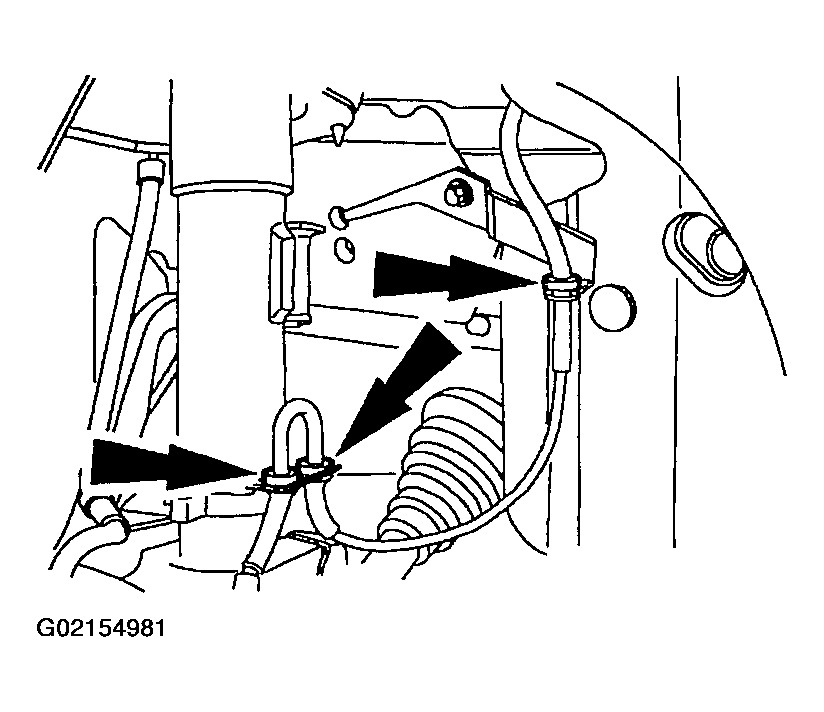

Fig 2: Identifying Wiring Routing Brackets
Courtesy of FORD MOTOR CO.
Remove the fender splash shield retainer.

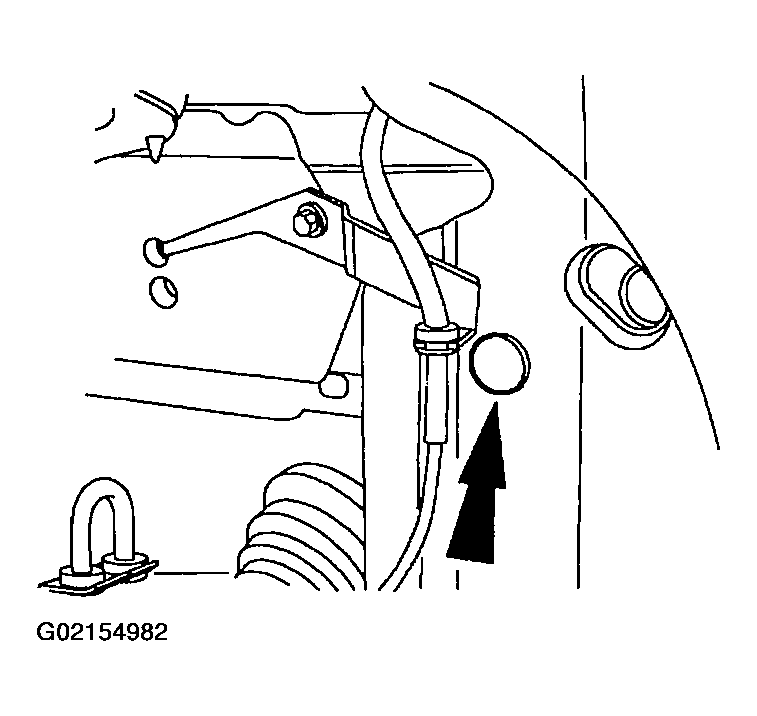

Fig 3: Identifying Fender Splash Shield Retainer
Courtesy of FORD MOTOR CO.
Pull back on the splash shield and disconnect the wiring.

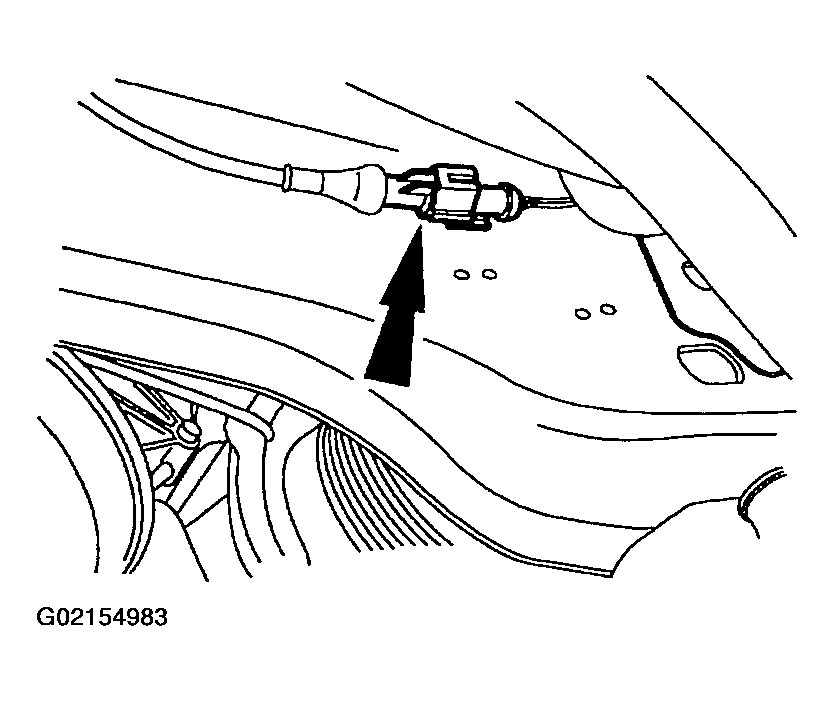

Fig 4: Disconnecting Front Wheel Speed Sensor Wiring
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
