Removal & Installation
WARNING: This page is about a different car, the 2002 Mercury Grand Marquis and 2002 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

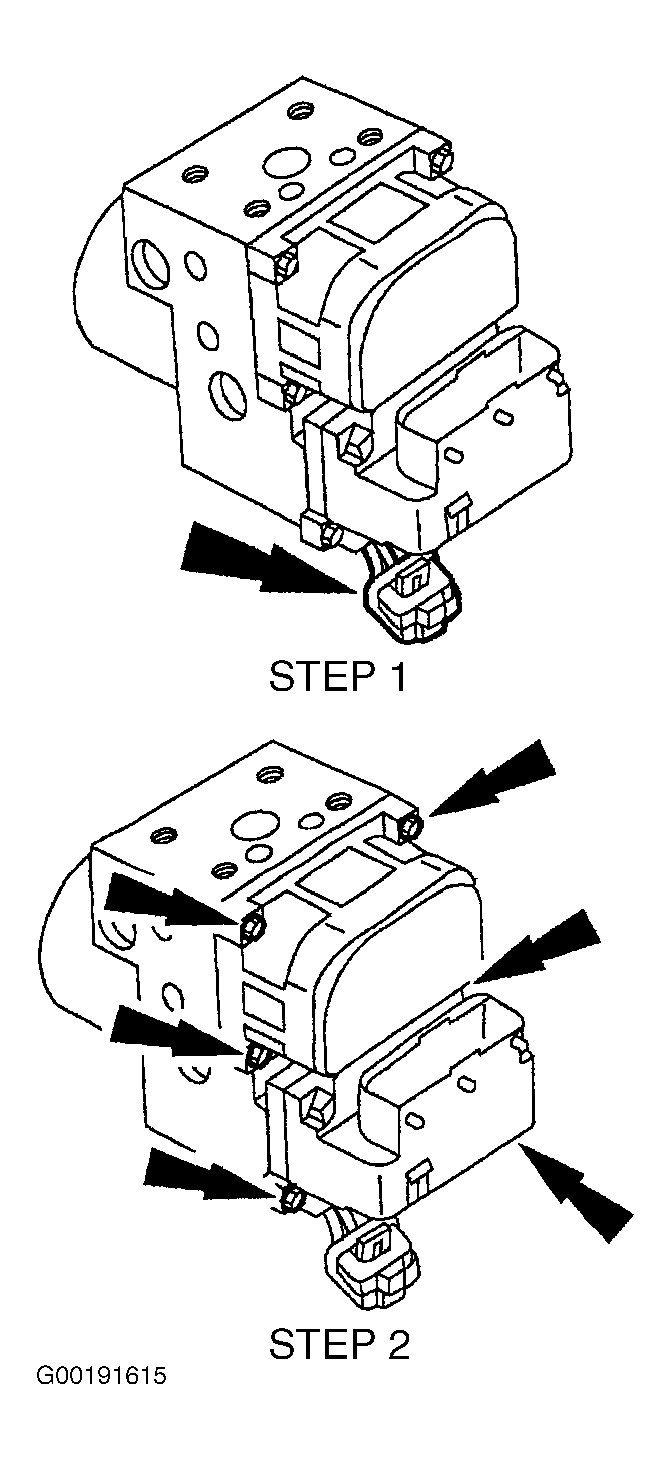

Disconnect negative battery cable. Disconnect Anti-Lock Brake Control Module (ABCM) harness connectors. See STEP 1 in Fig 1. Remove ABCM-to-Hydraulic Control Unit (HCU) screws and remove ABCM. See STEP 2 in Fig 1. To install, reverse removal procedure.
Courtesy of FORD MOTOR CO.
