Piston - Diameter

  1. Measure the piston diameter 90 degrees from the piston pin at the point indicated.
    • If out of specification, install new components as necessary.

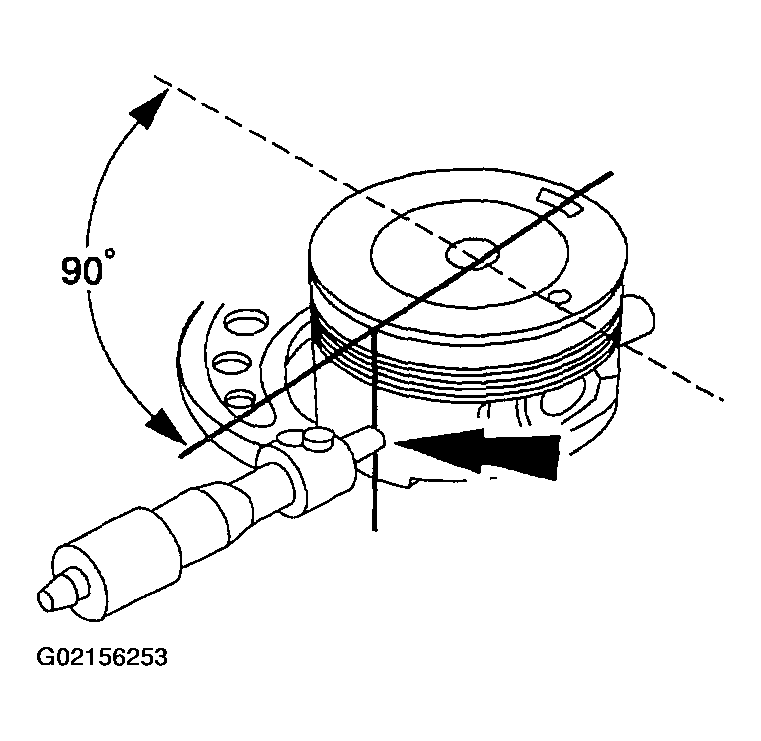

    Fig 1: Measuring Piston Diameter
    G02156253Courtesy of FORD MOTOR CO.
