Piston - Pin Diameter

  1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
    • If out of specification, install new components as necessary.

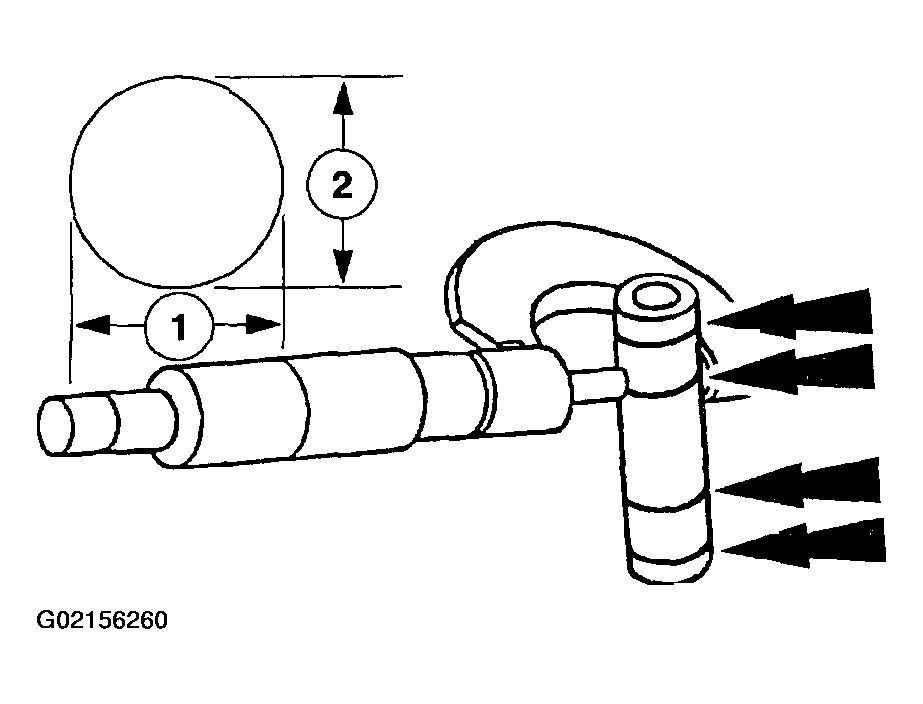

    Fig 1: Measuring Piston Pin Diameter
    G02156260Courtesy of FORD MOTOR CO.
