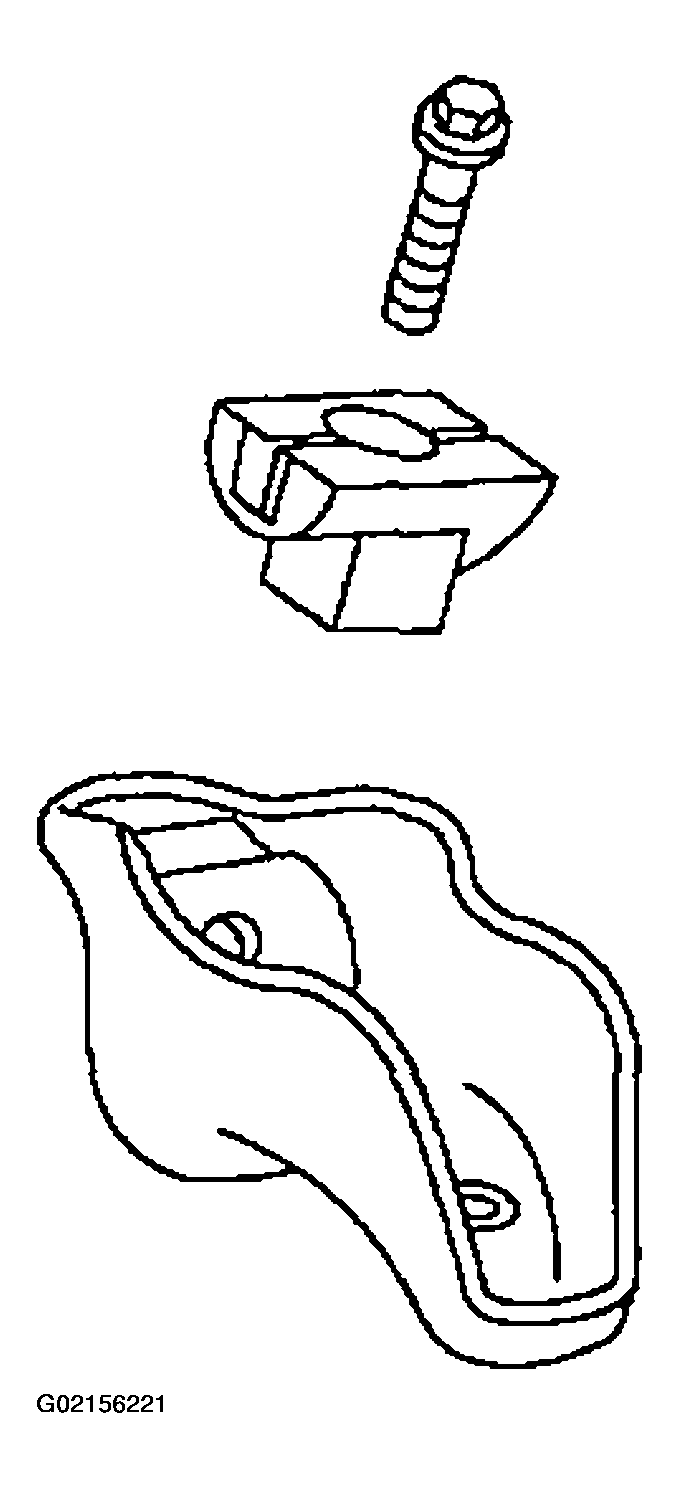

Rocker Arms - Inspection
CAUTION:
Do not attempt to true surfaces by grinding. Check the rocker arm pad, side rails and seat for excessive wear, cracks, nicks or burrs. Check the rocker arm seat bolt for stripped or broken threads. Install new components as necessary or possible damage may occur.
- Inspect the rocker arm push rod bore for nicks, scratches, scores or scuffs. Install new components as necessary.
- Inspect the pad at the valve end of the rocker arm for indications of scuffing or abnormal wear. If the pad is grooved, install a new rocker arm.
