Home
>>
Ford
>>
2002
>>
Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Integrated Control Panel
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

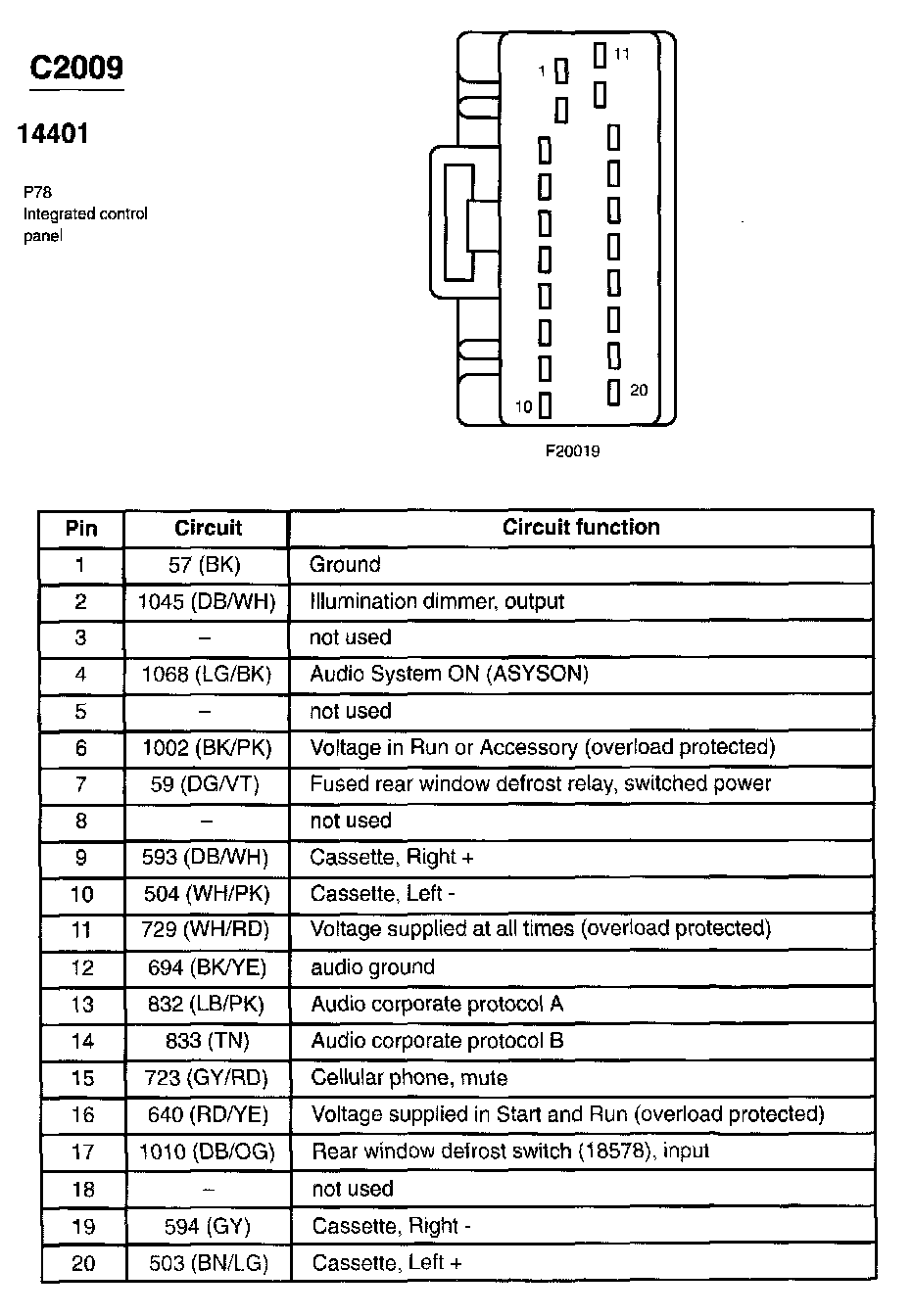

Integrated Control Panel
